Part 2

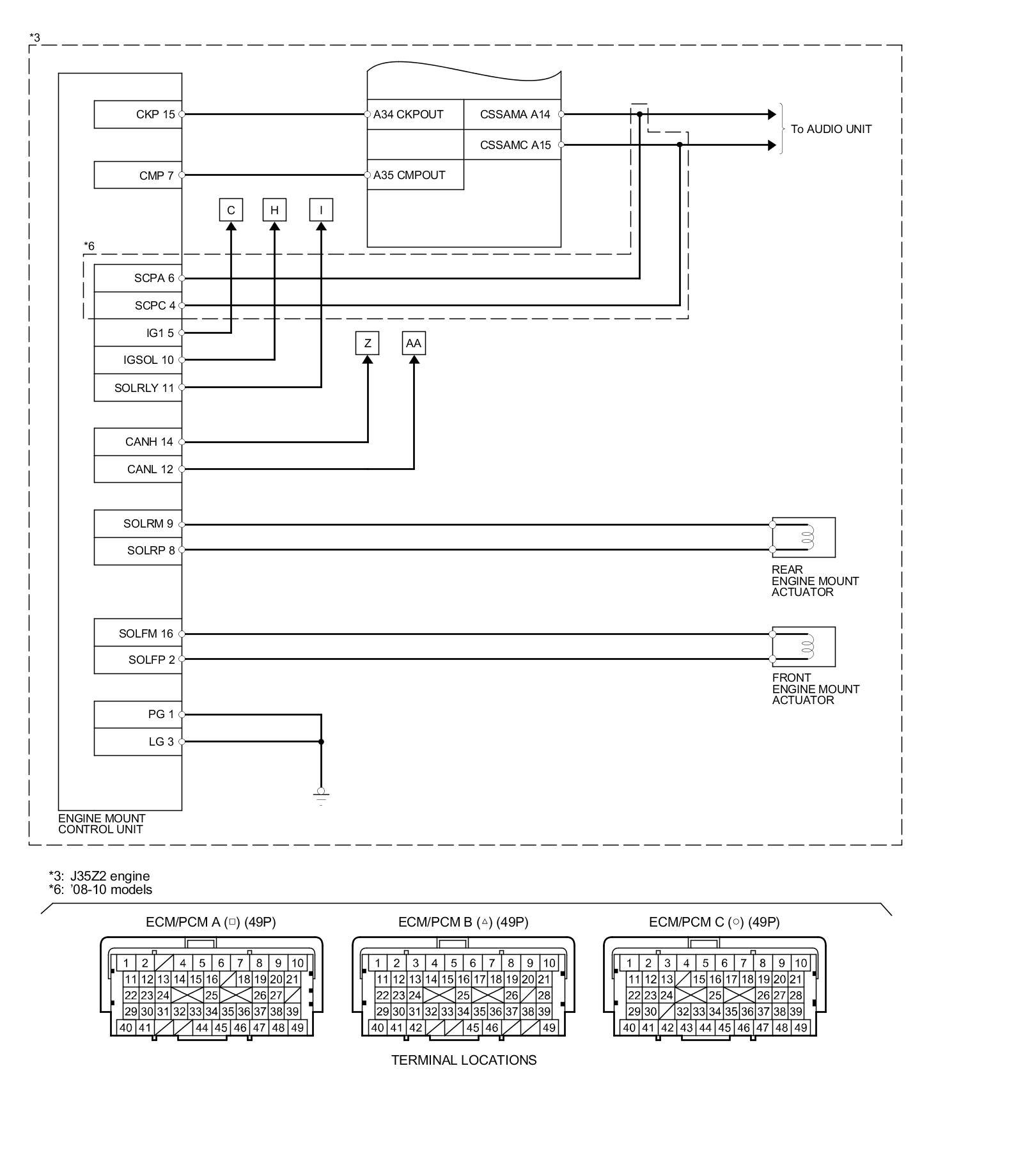

ECM/PCM Electrical Connections

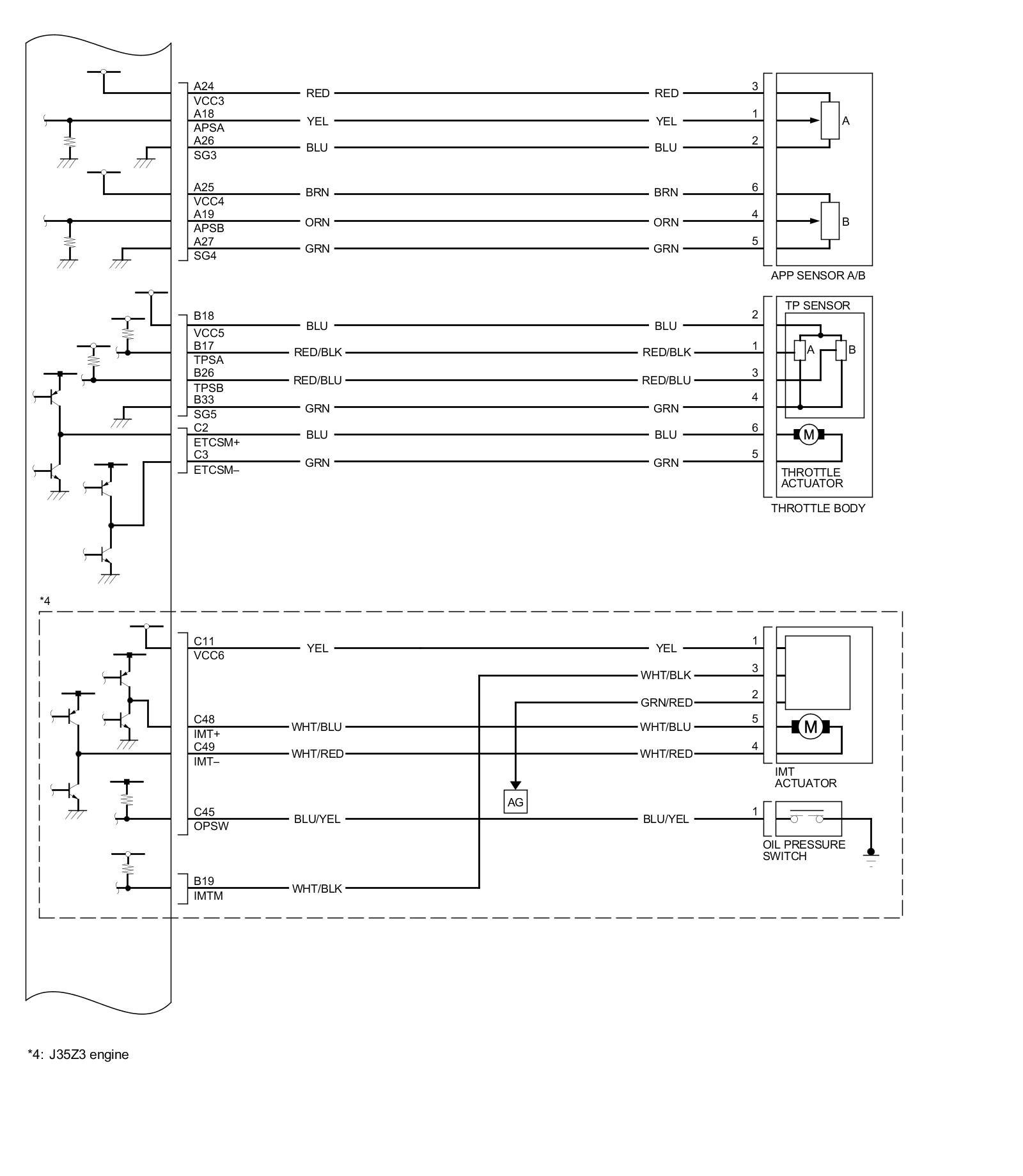

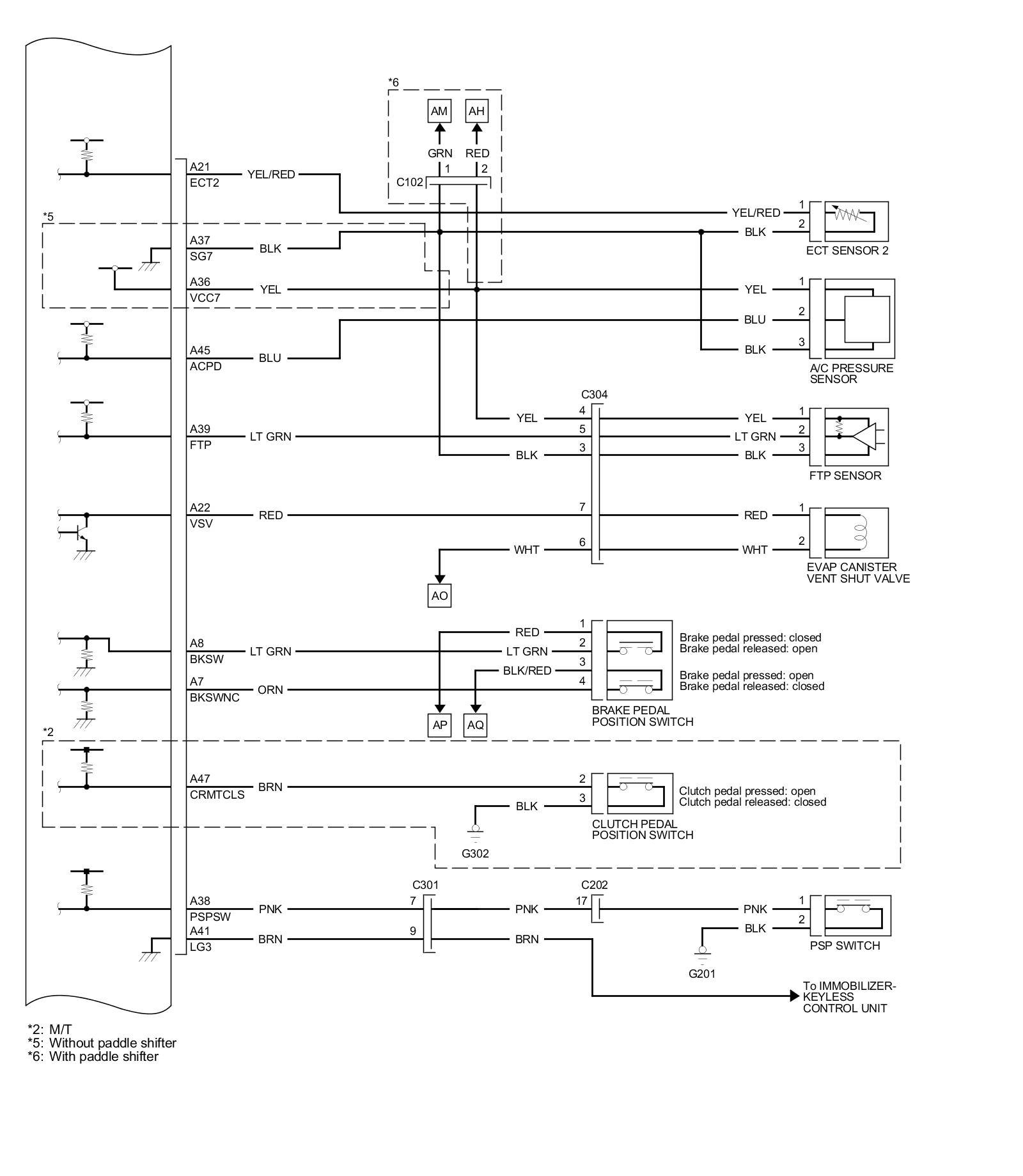

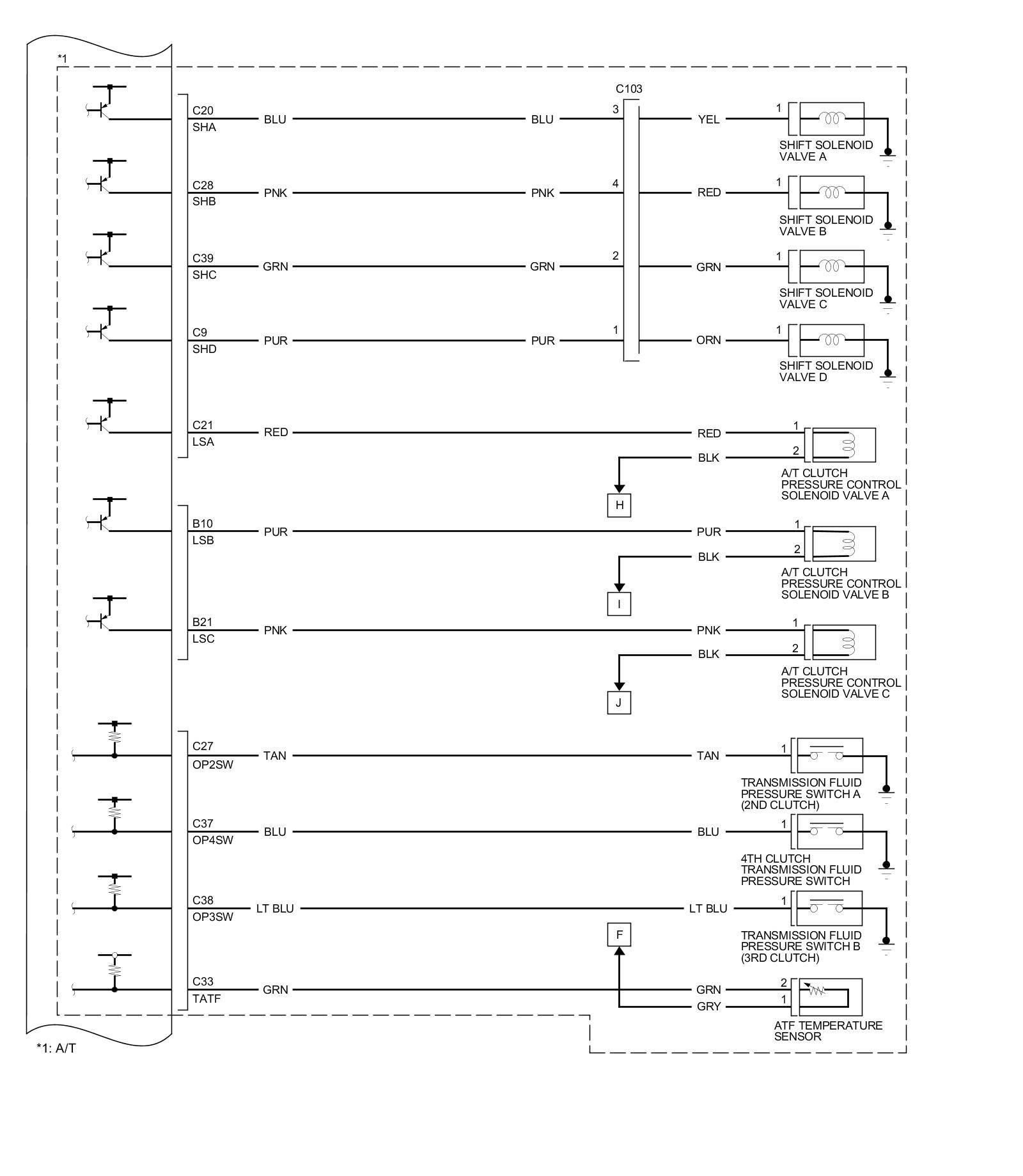

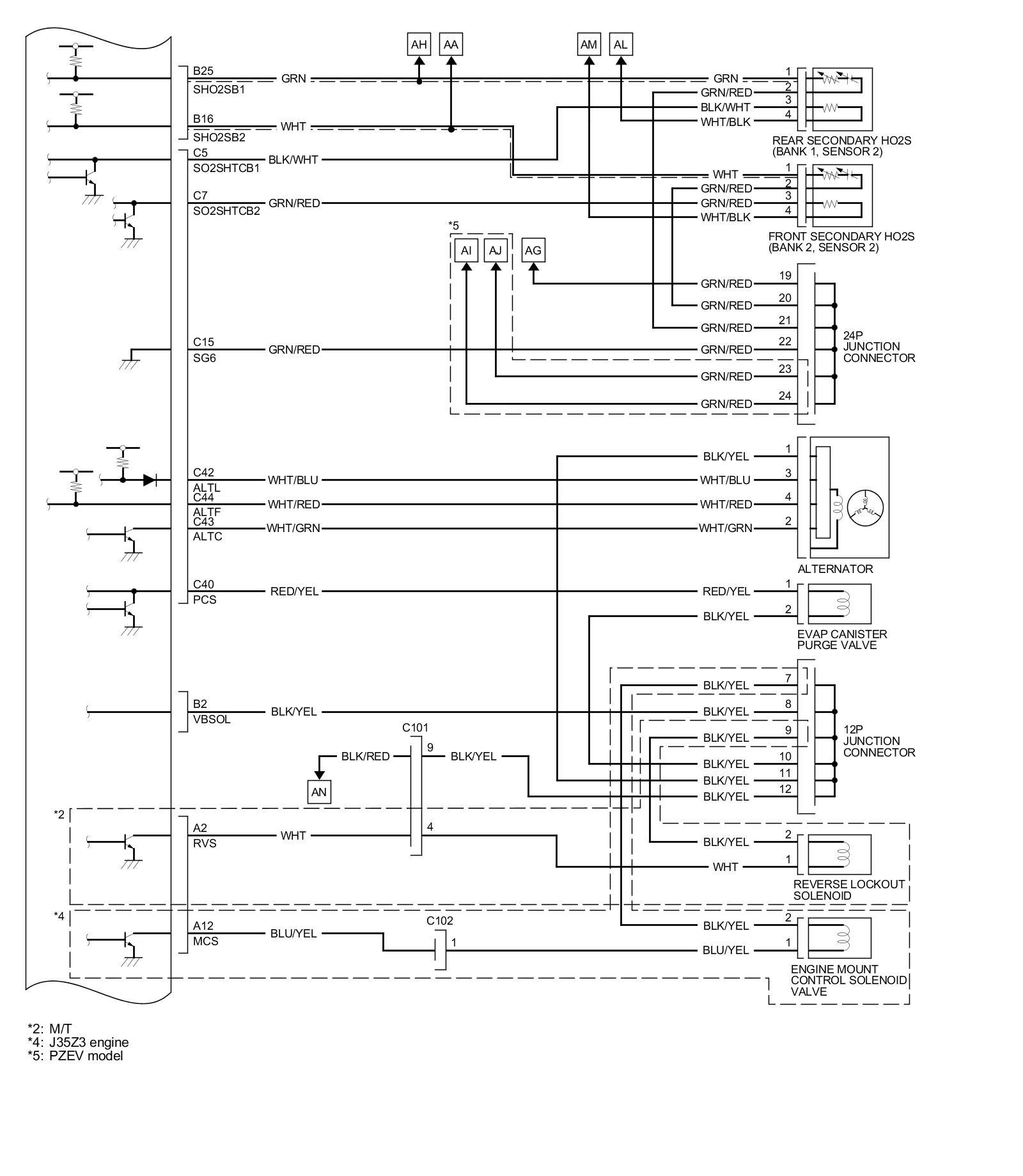

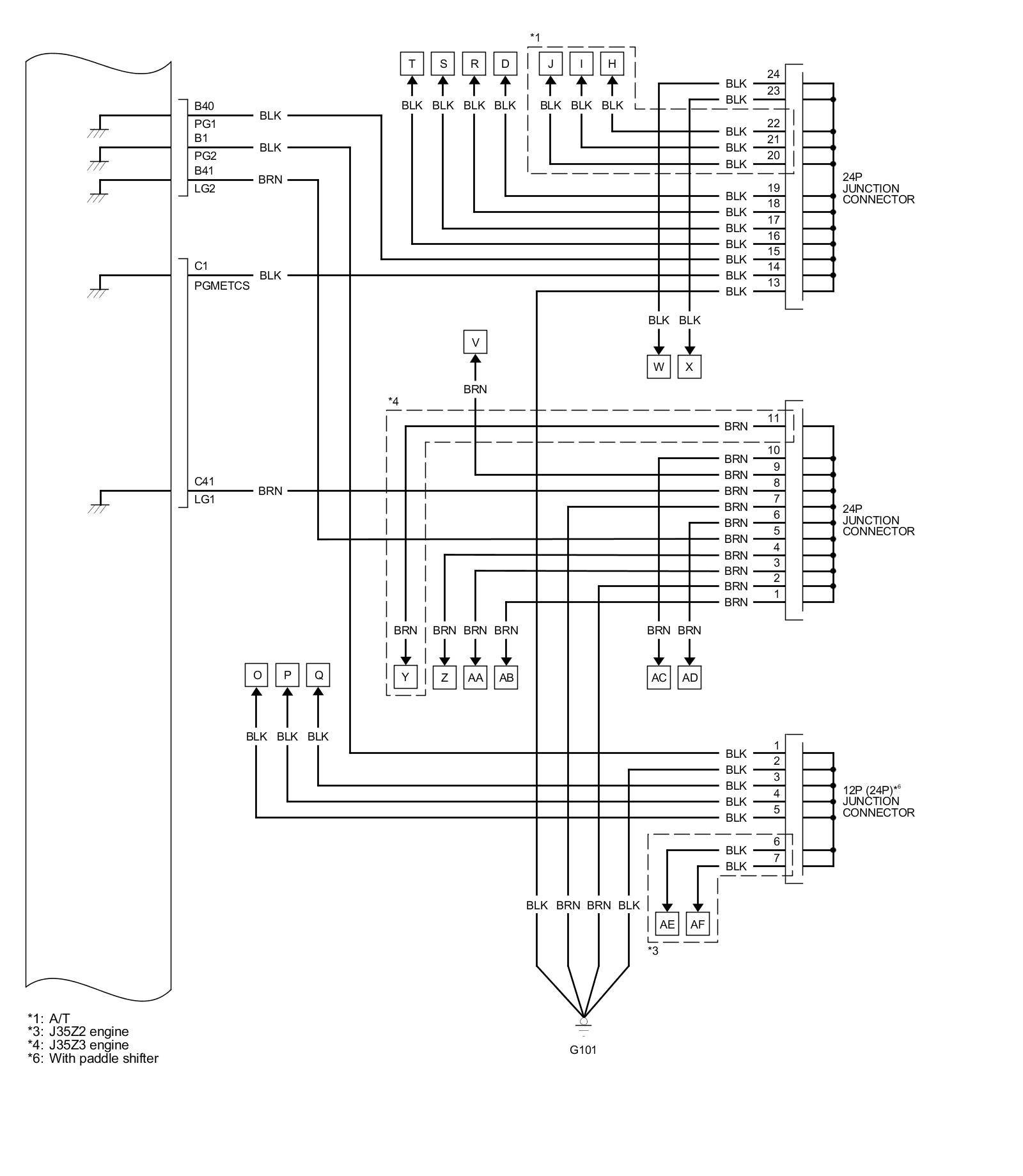

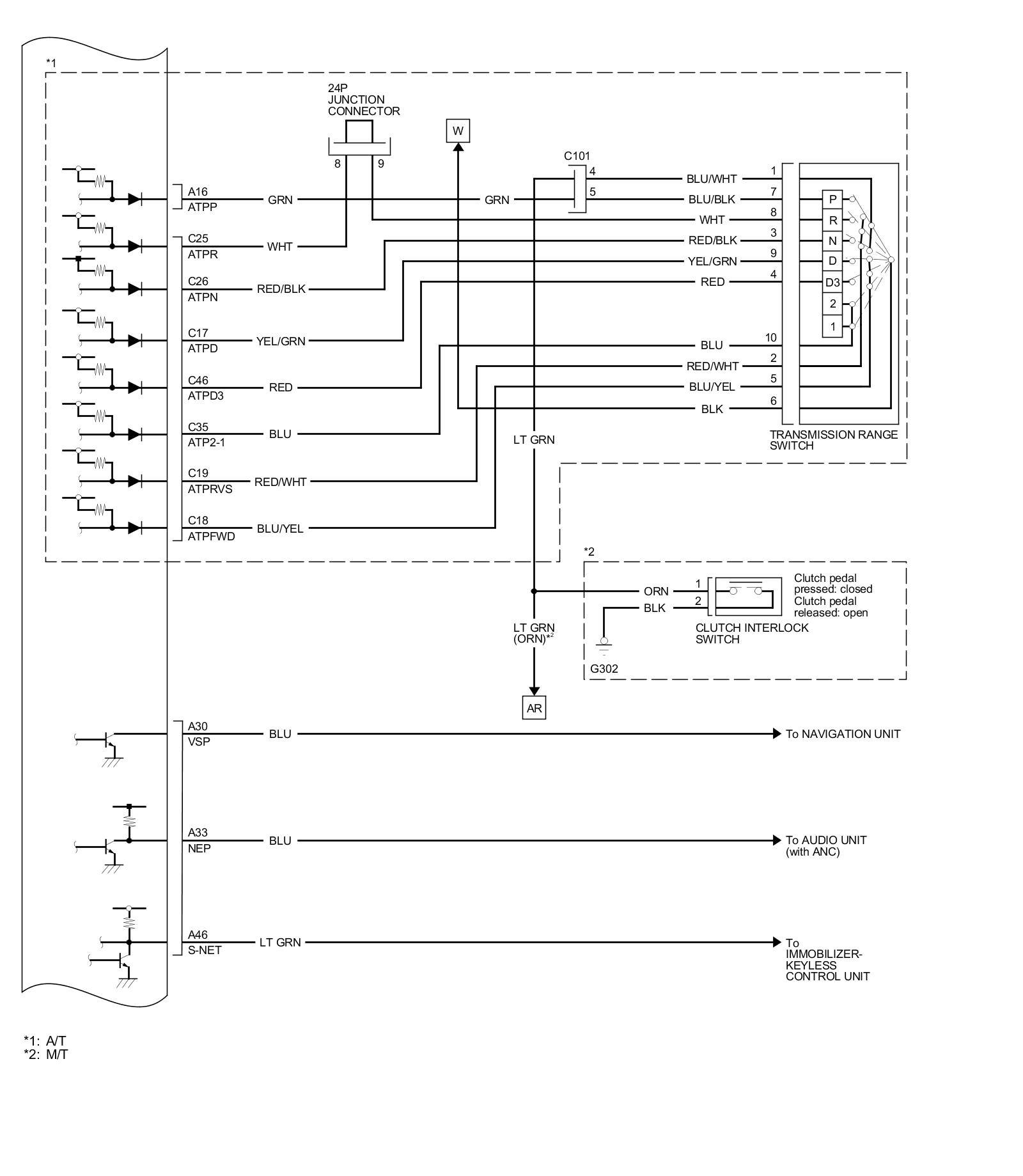

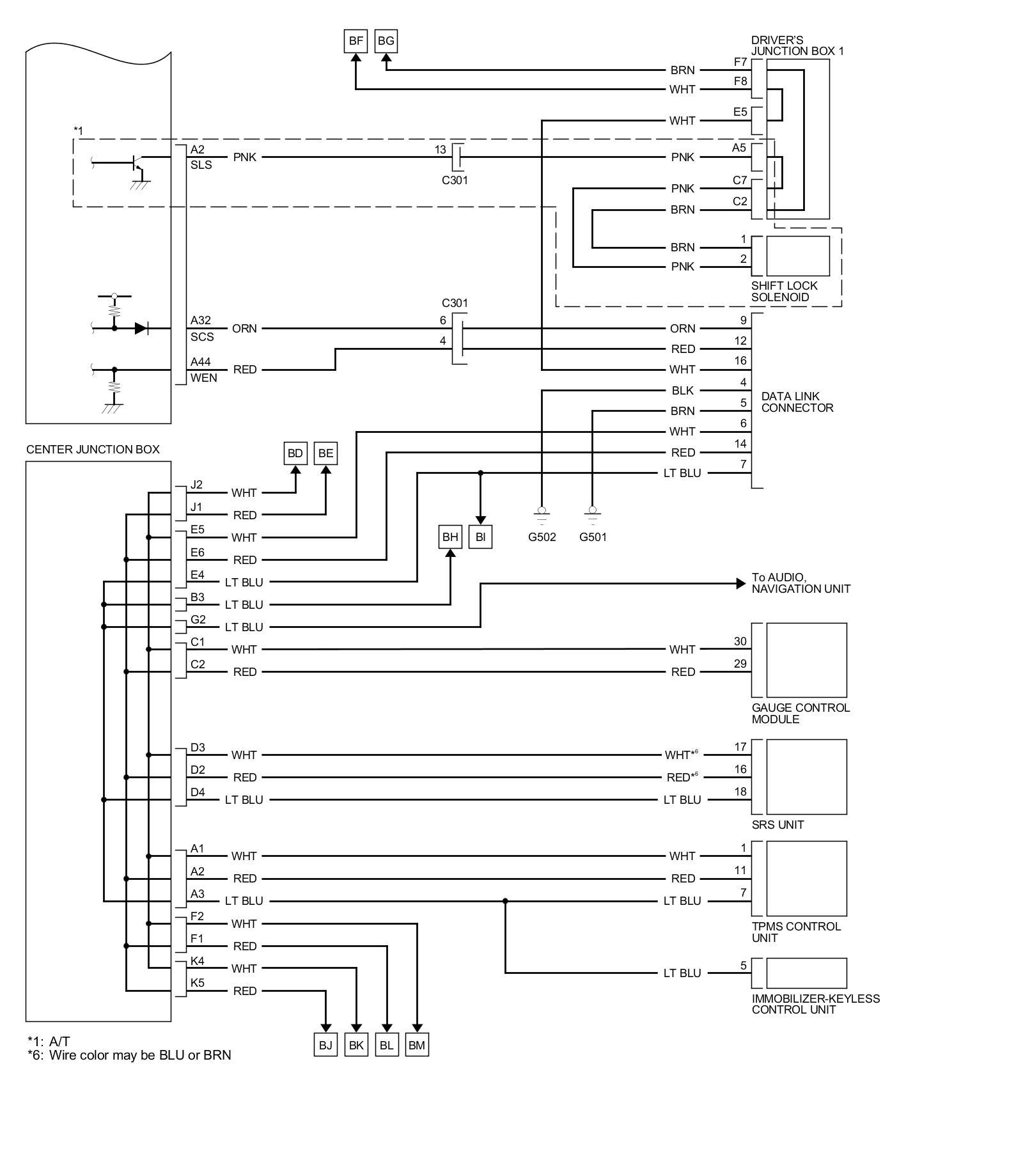

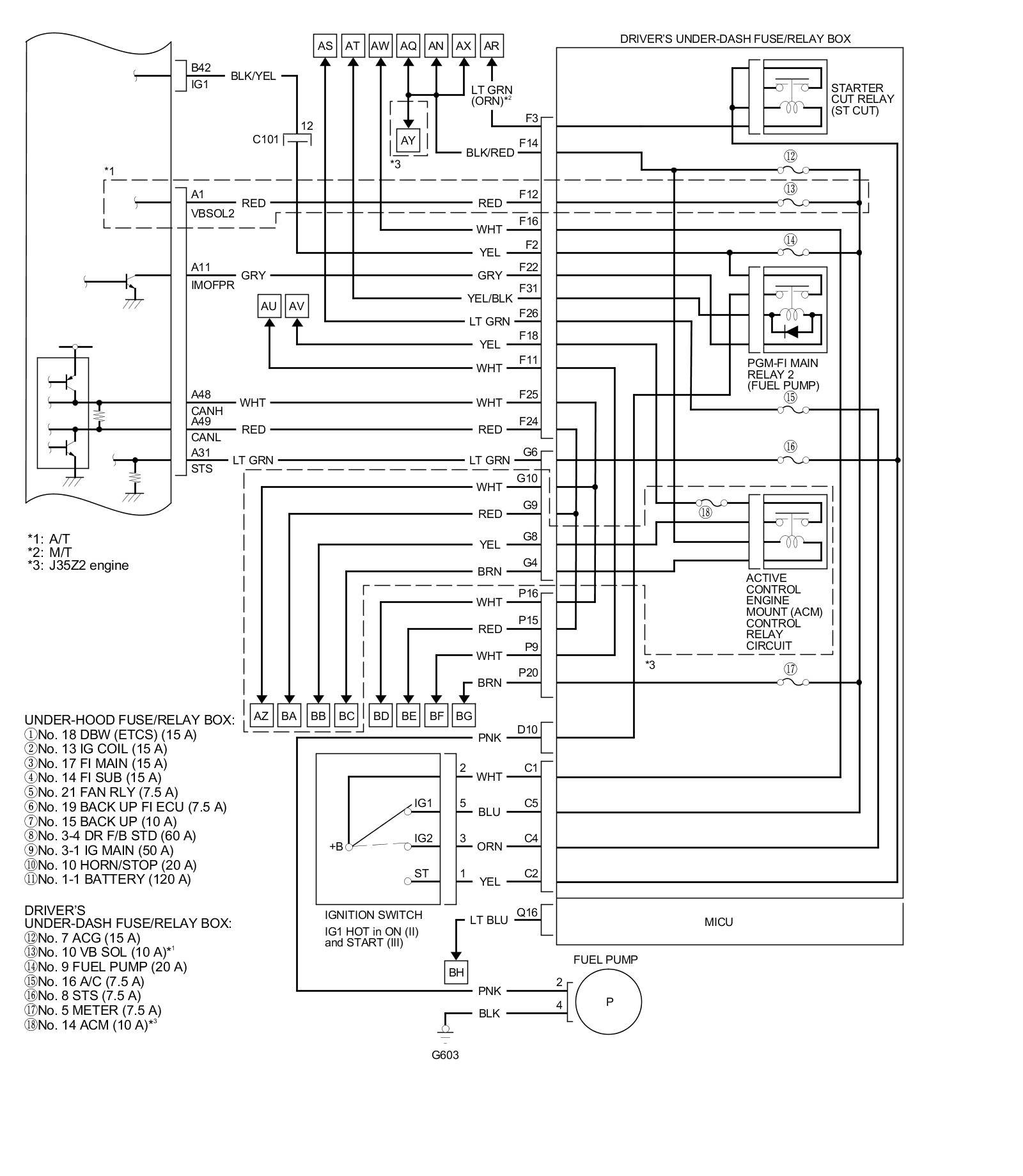

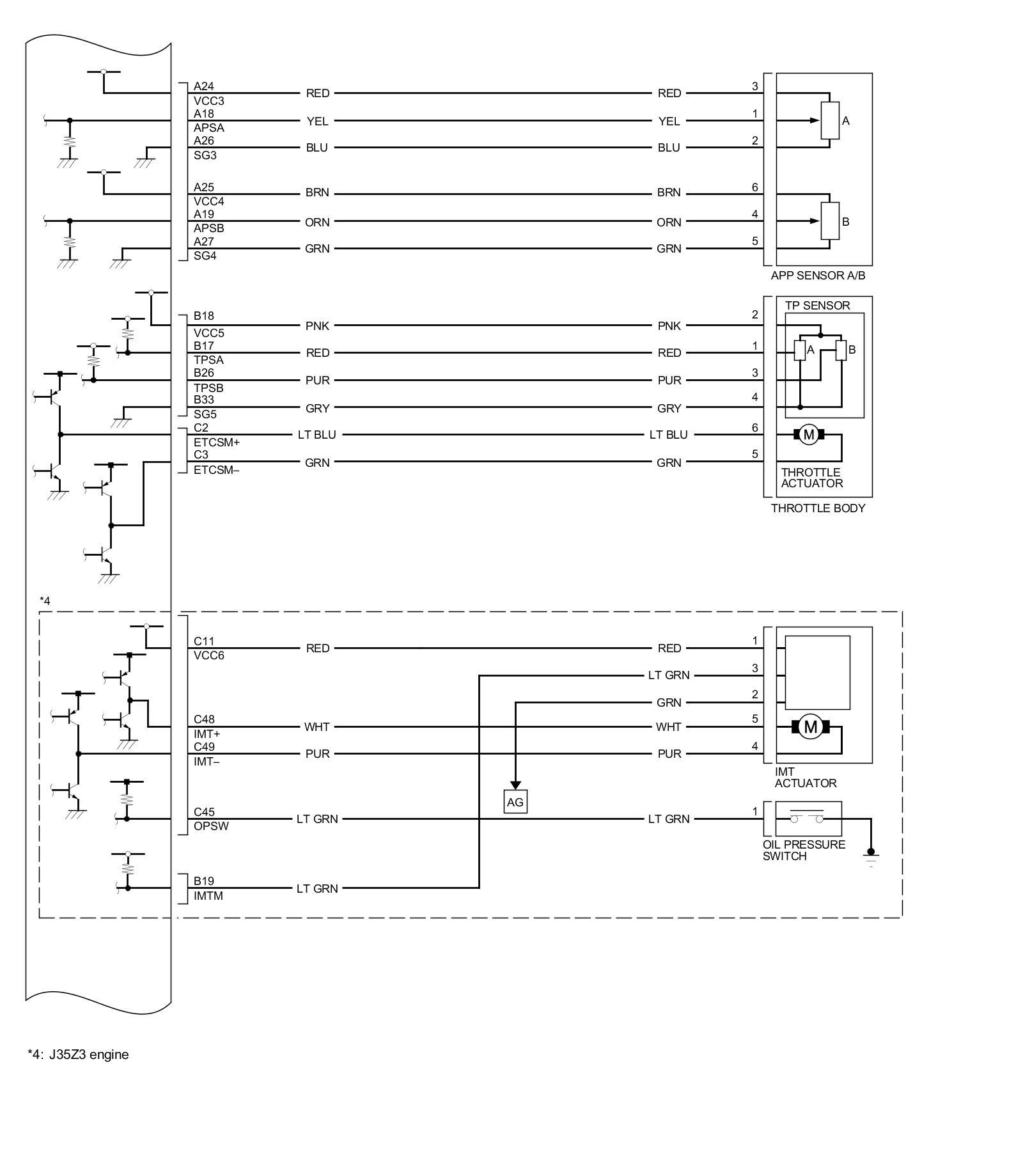

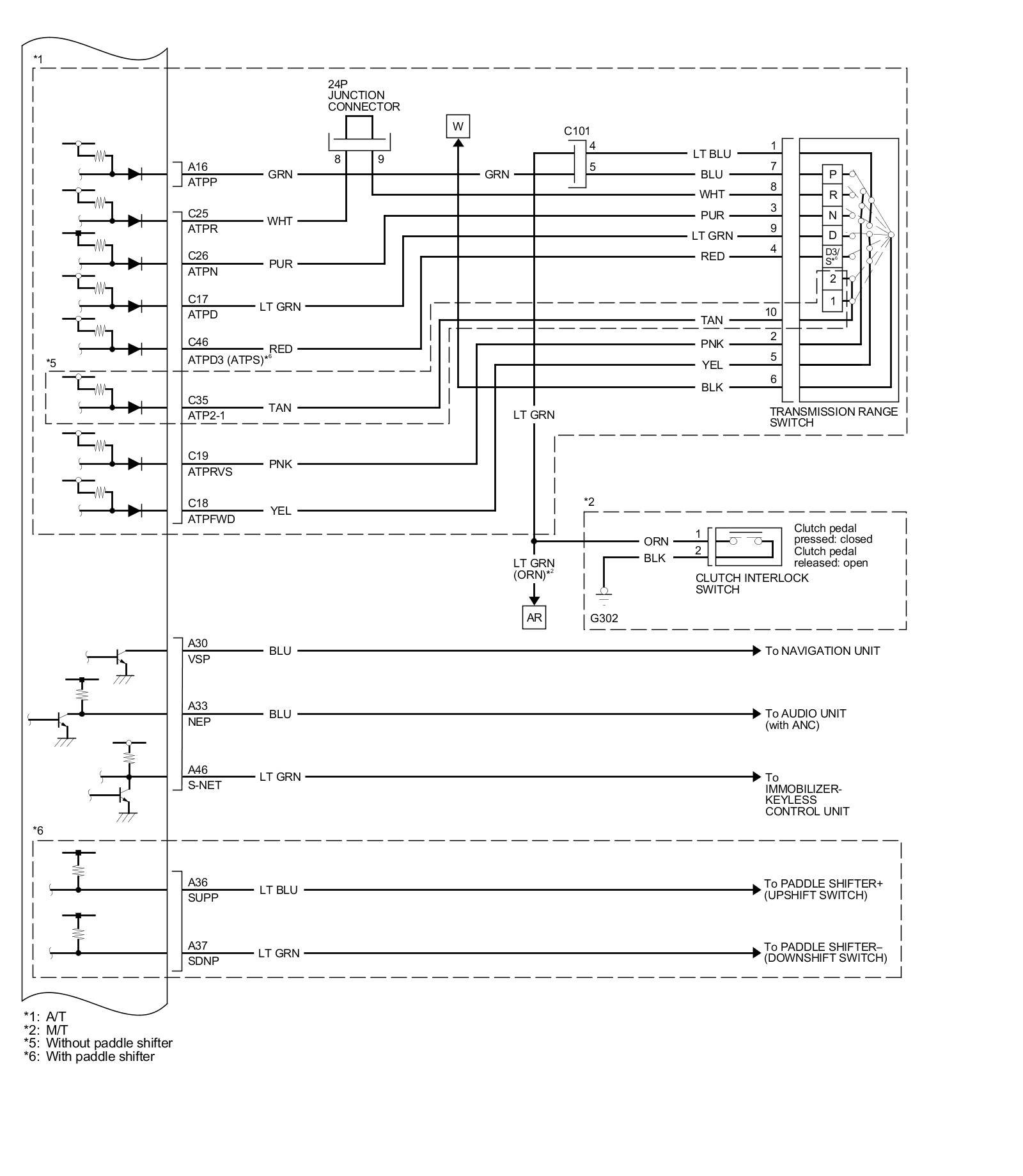

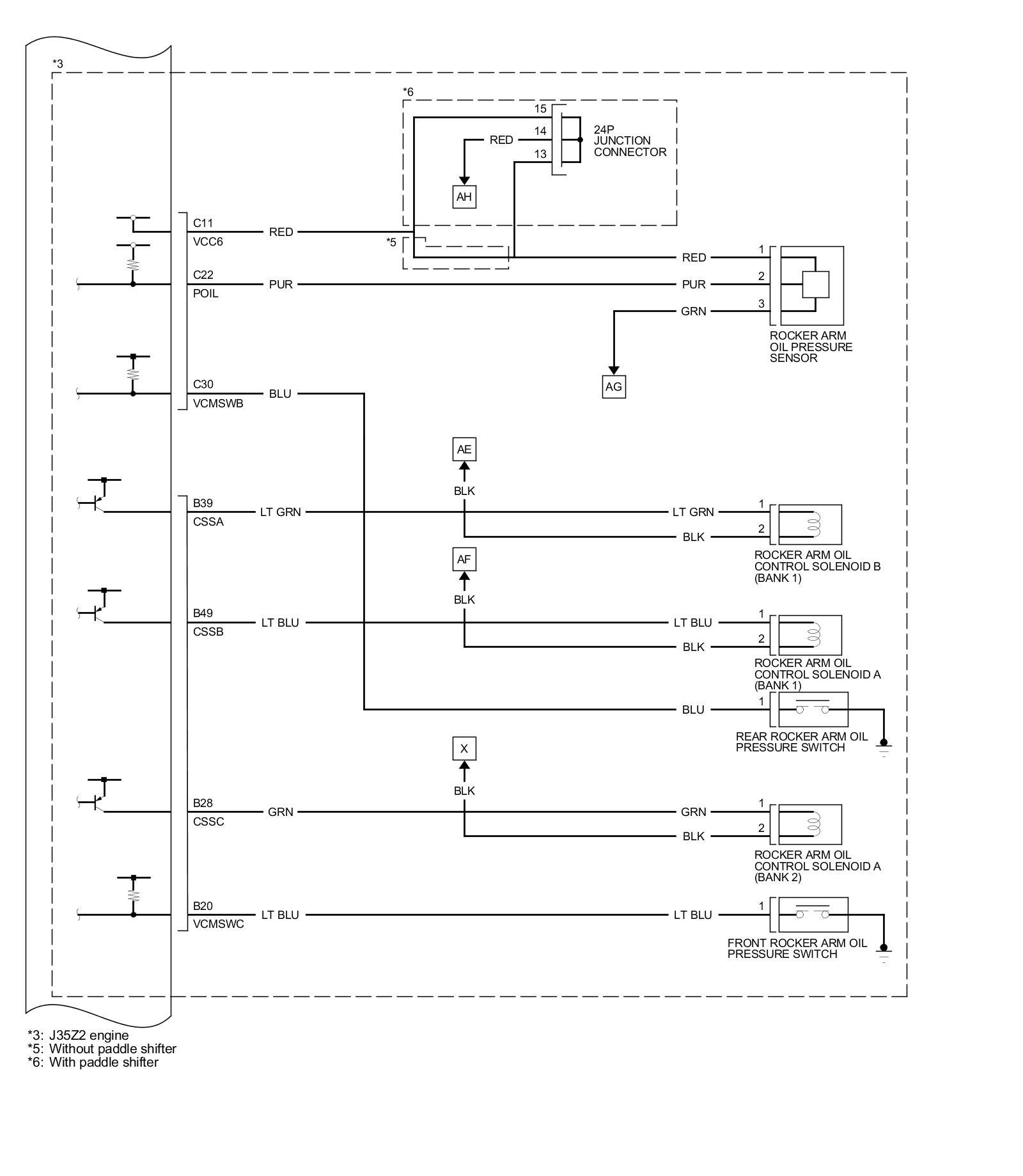

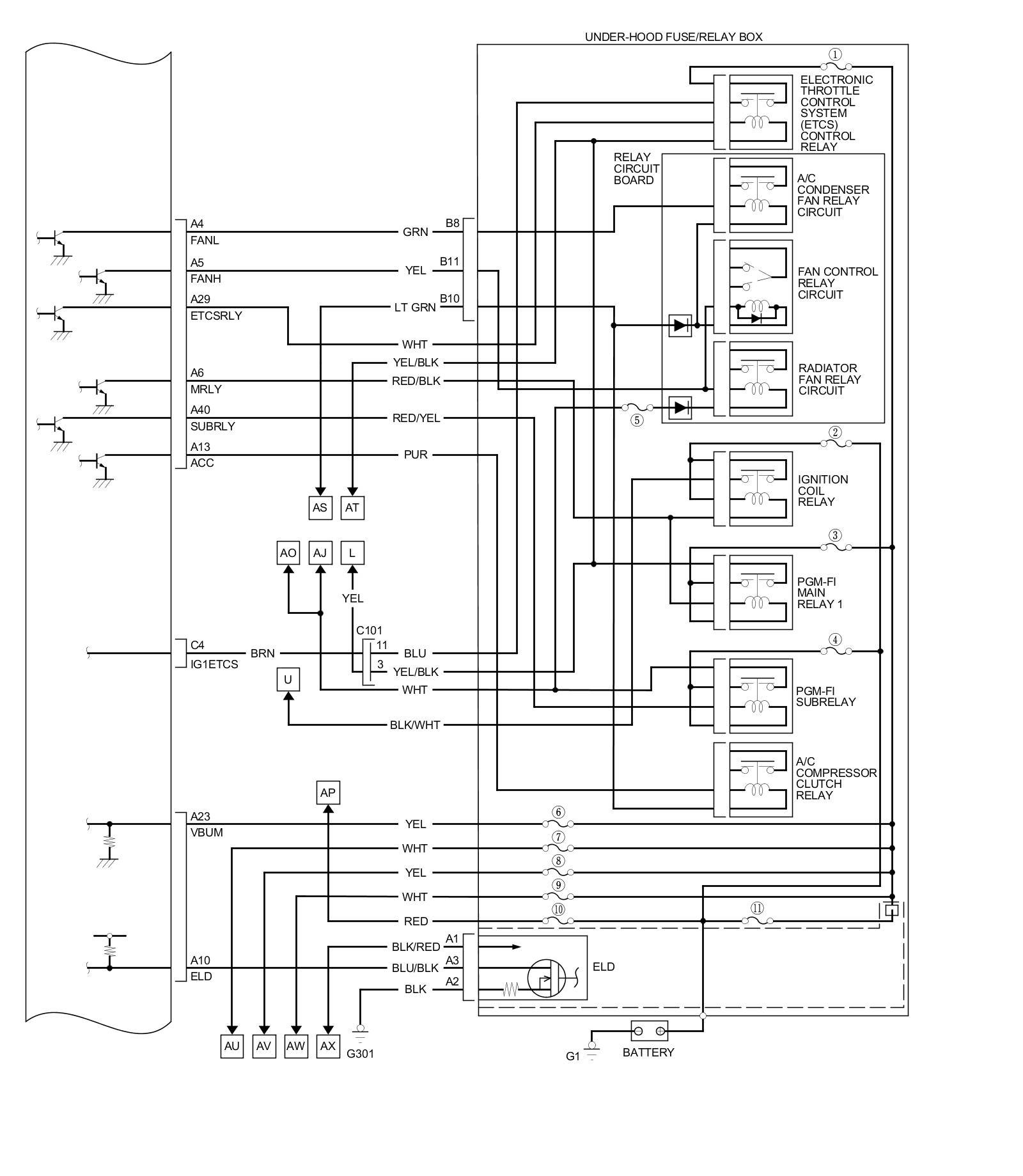

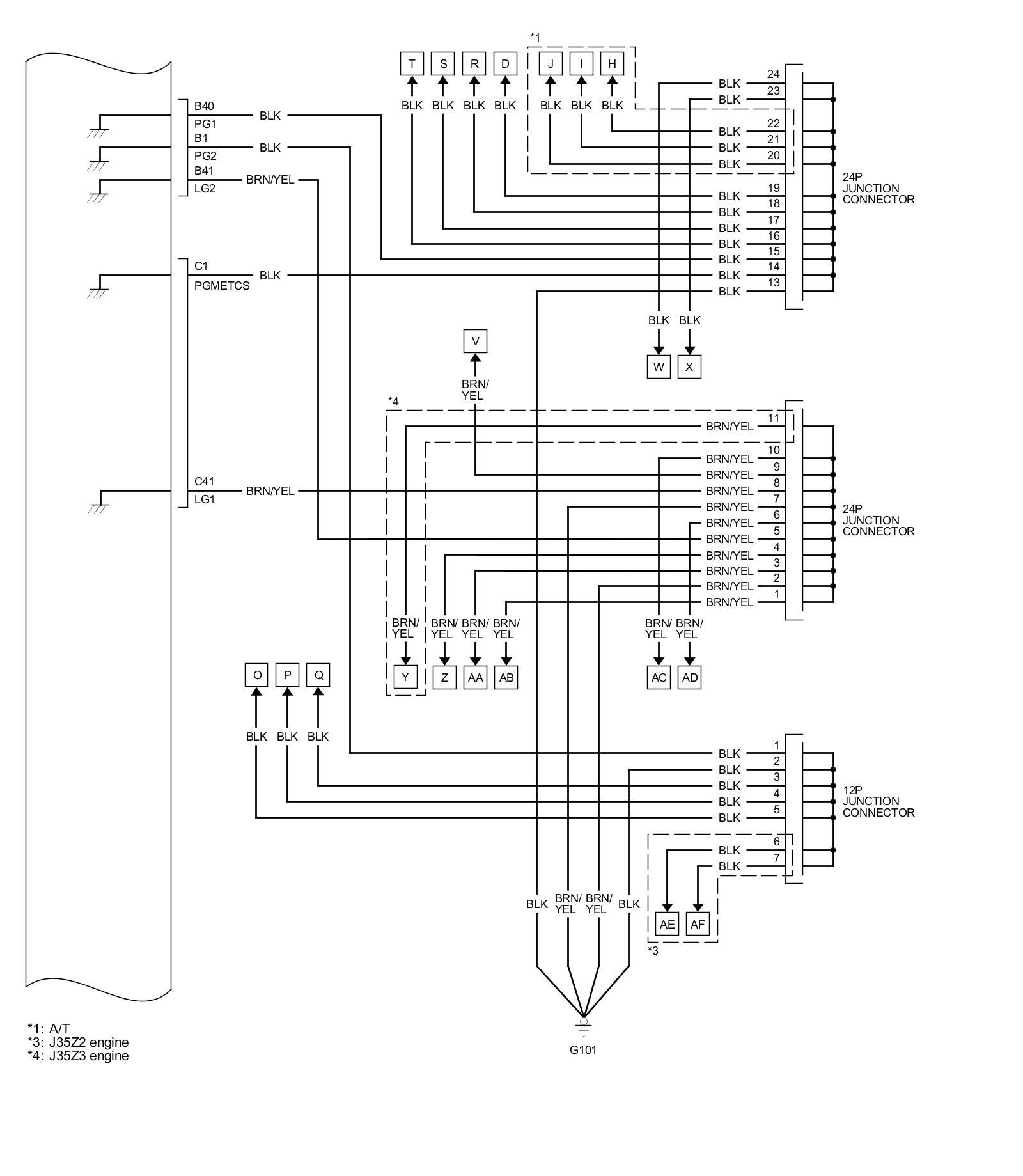

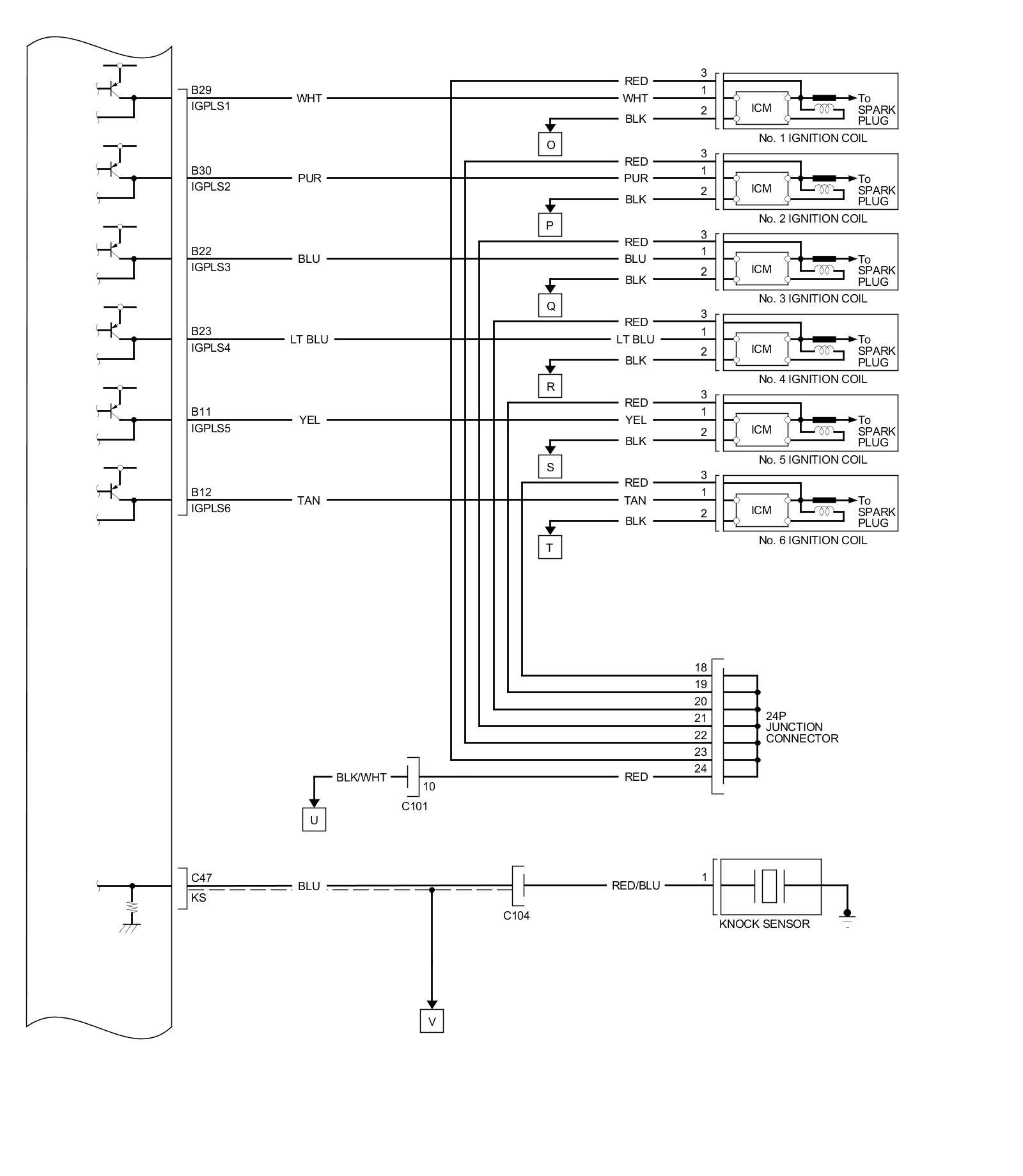

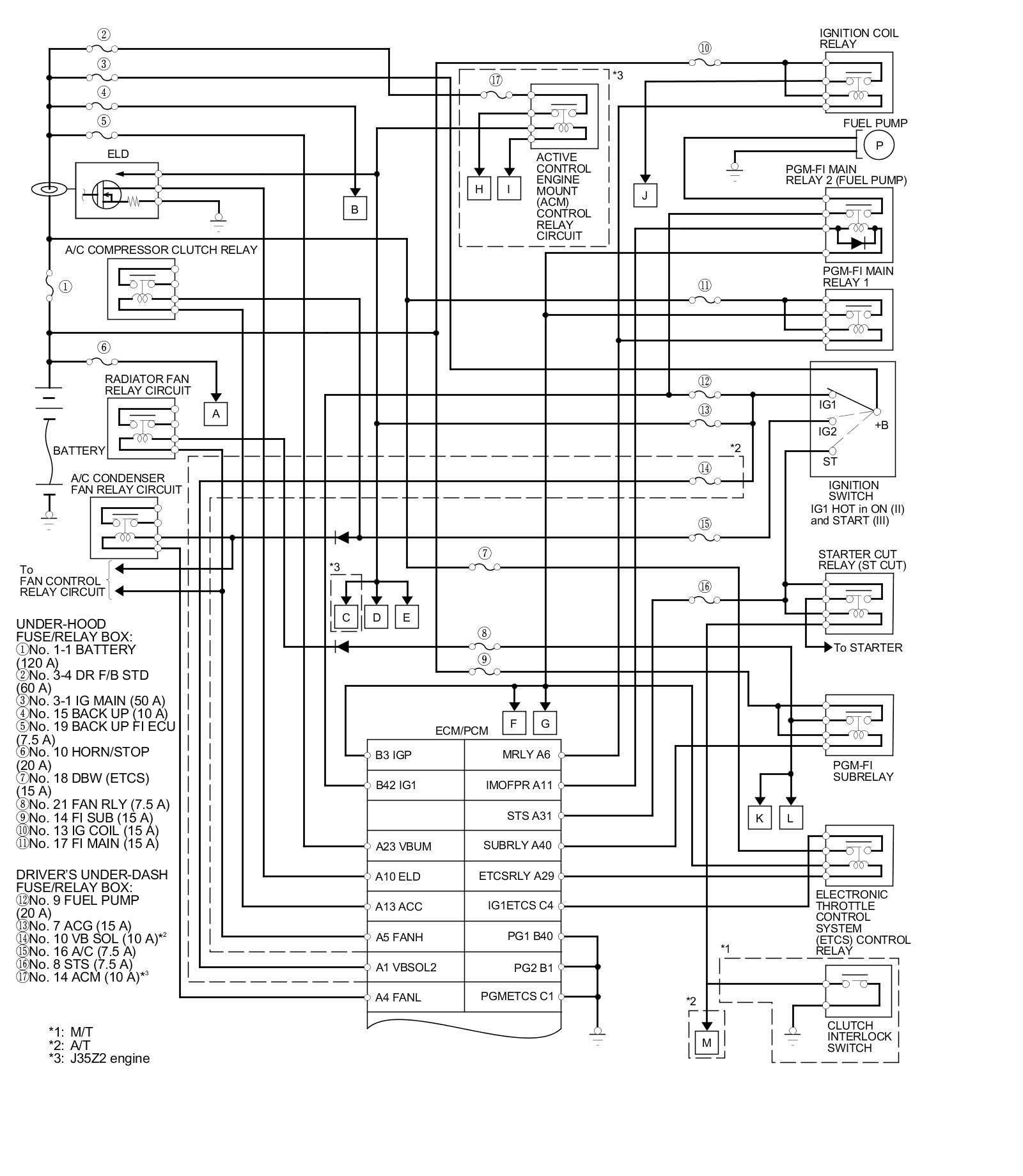

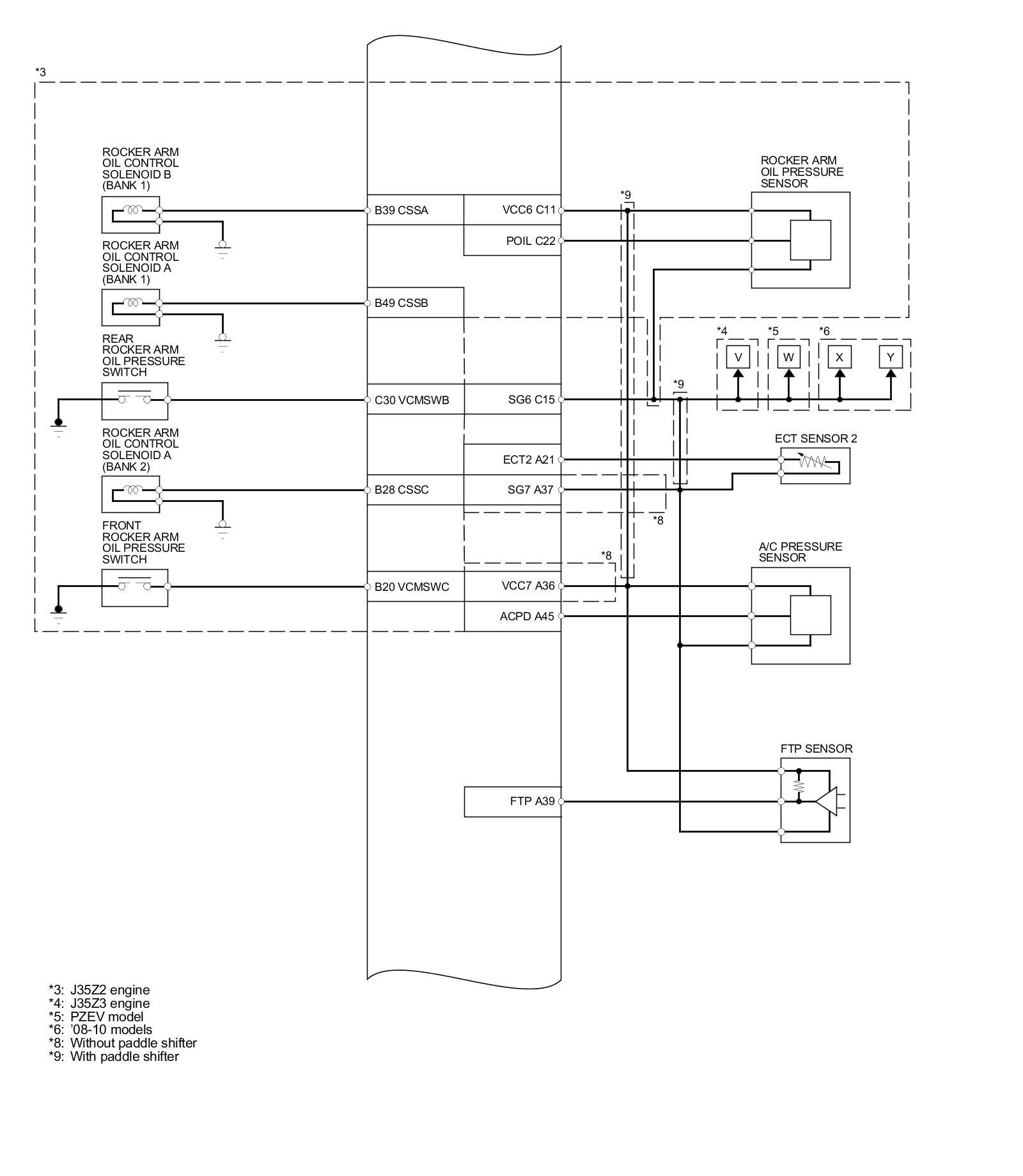

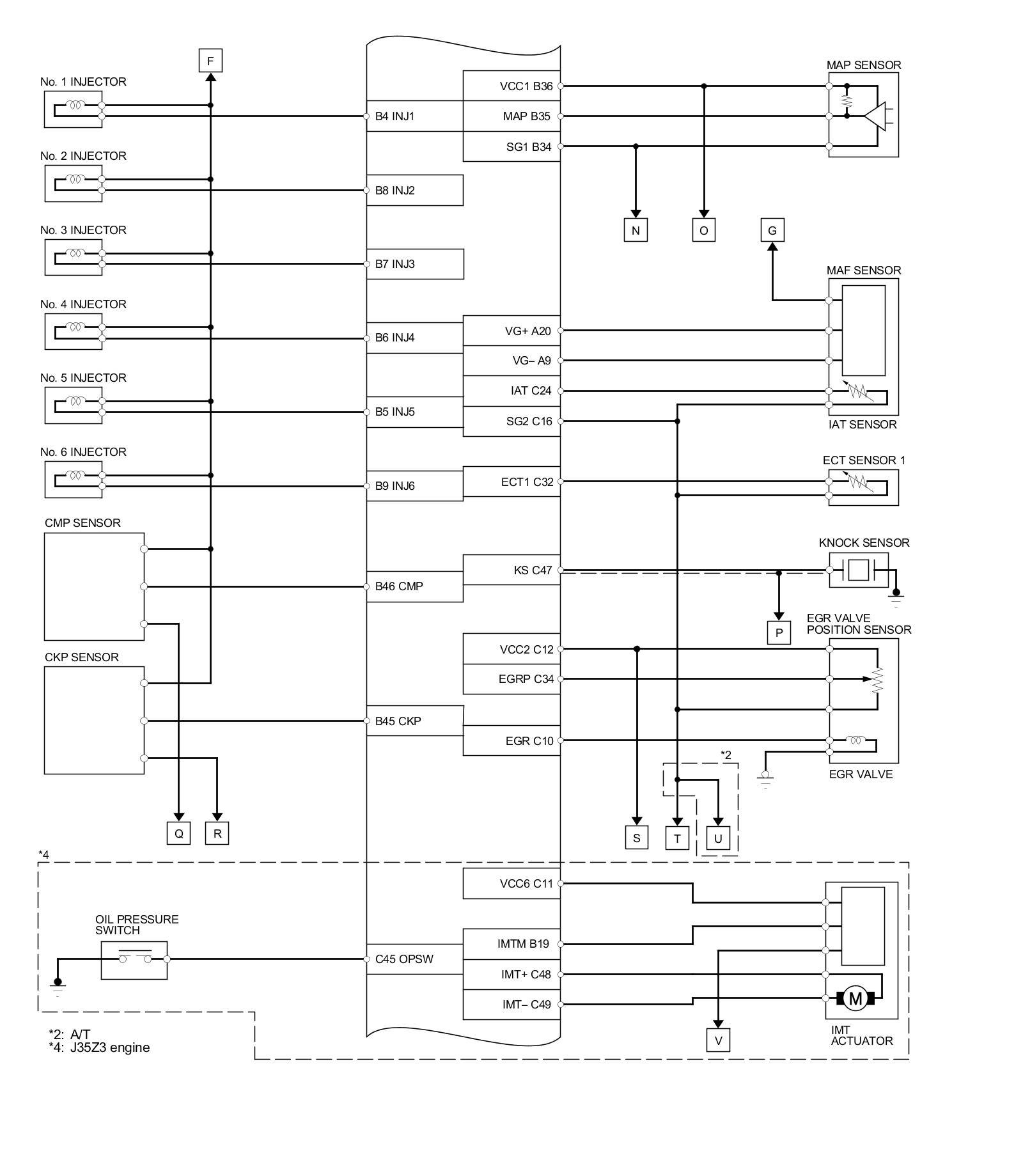

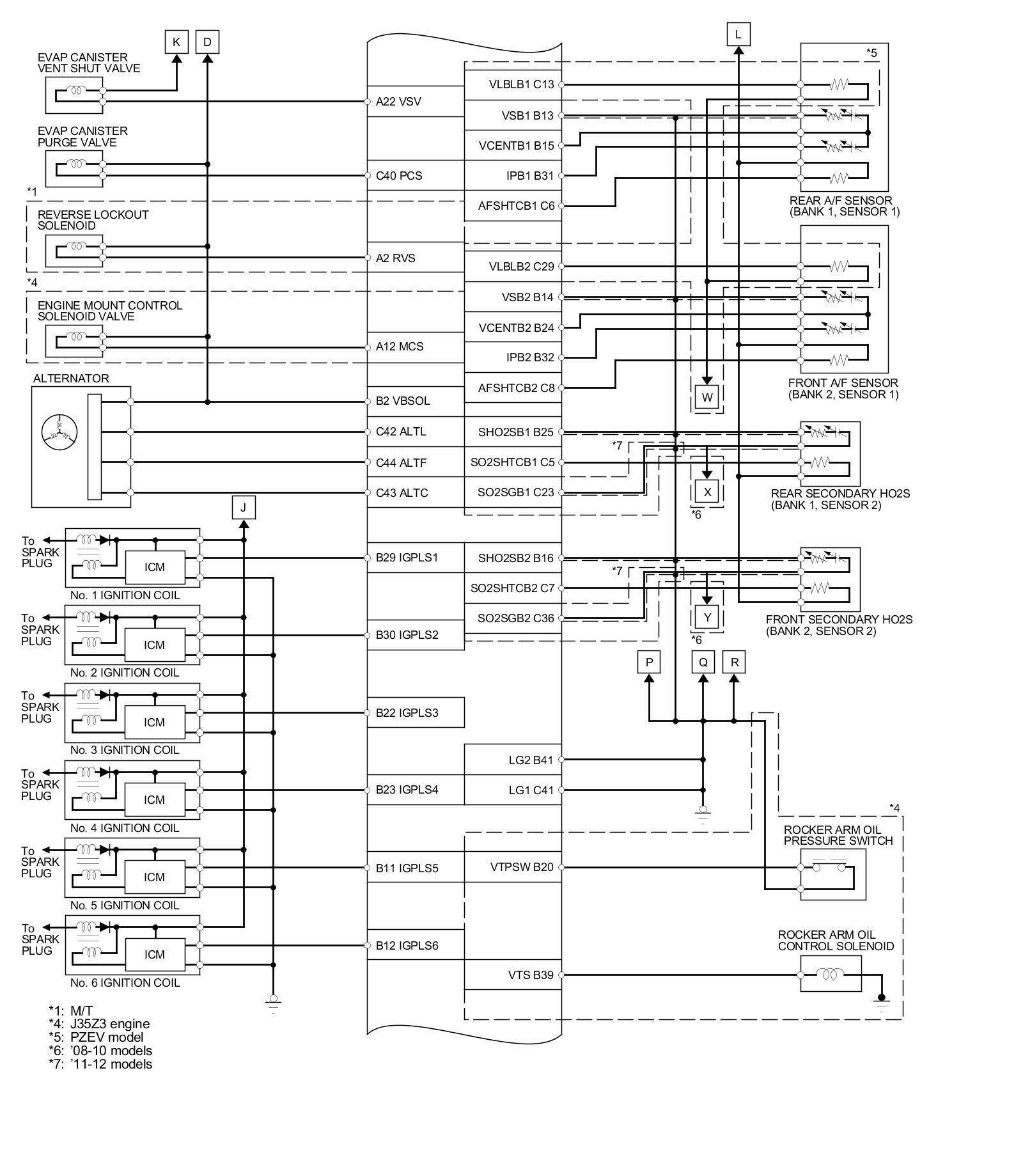

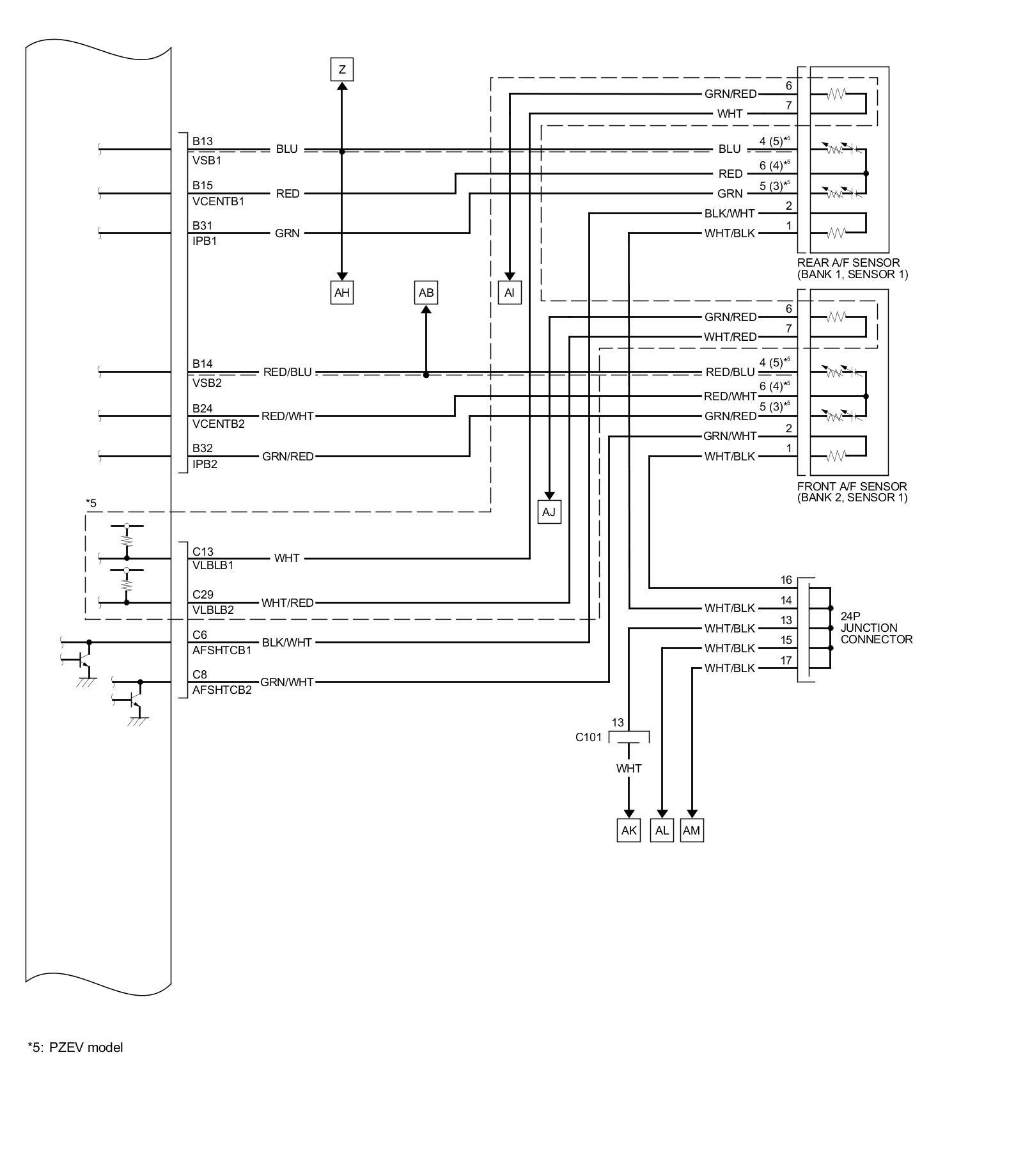

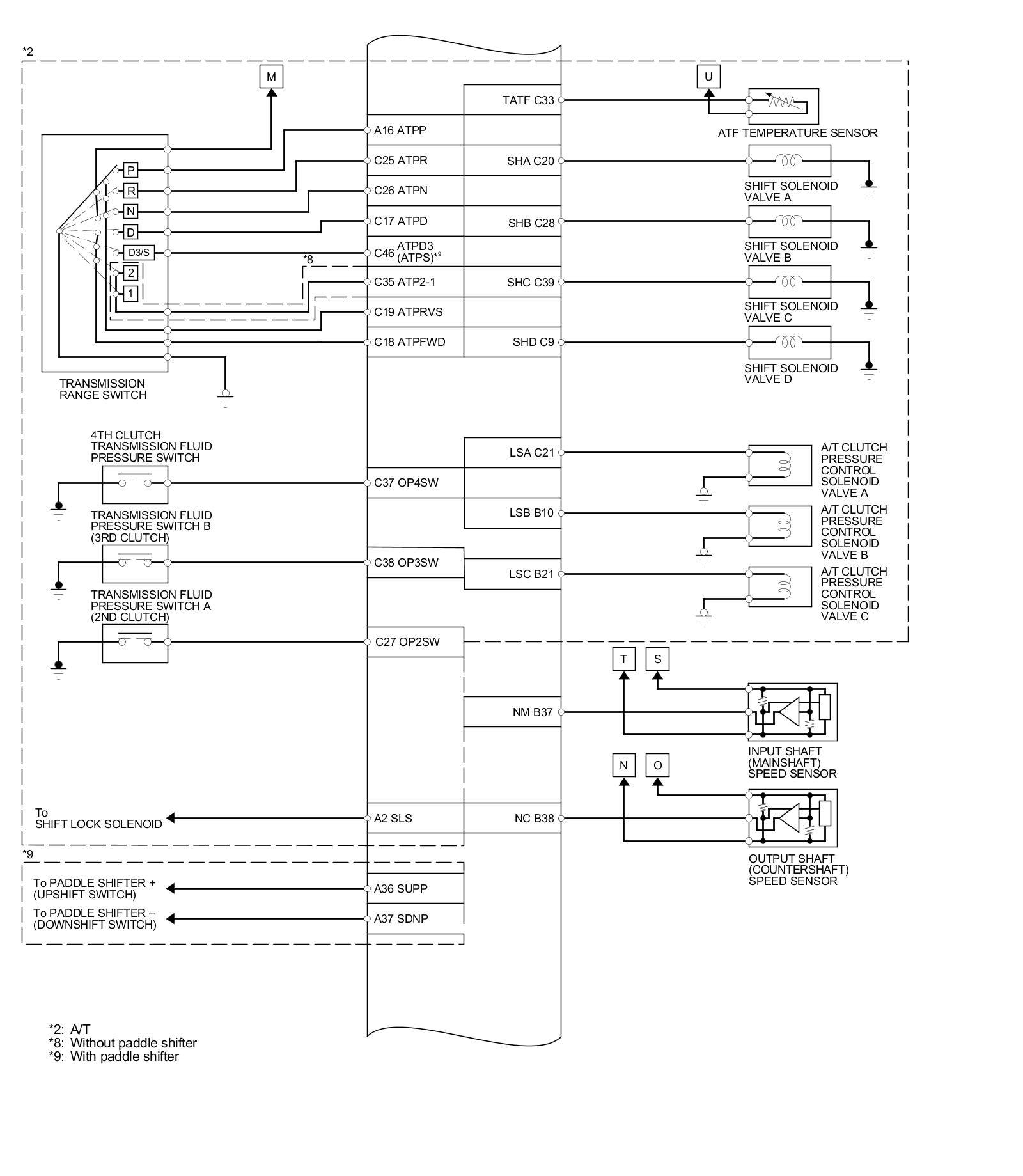

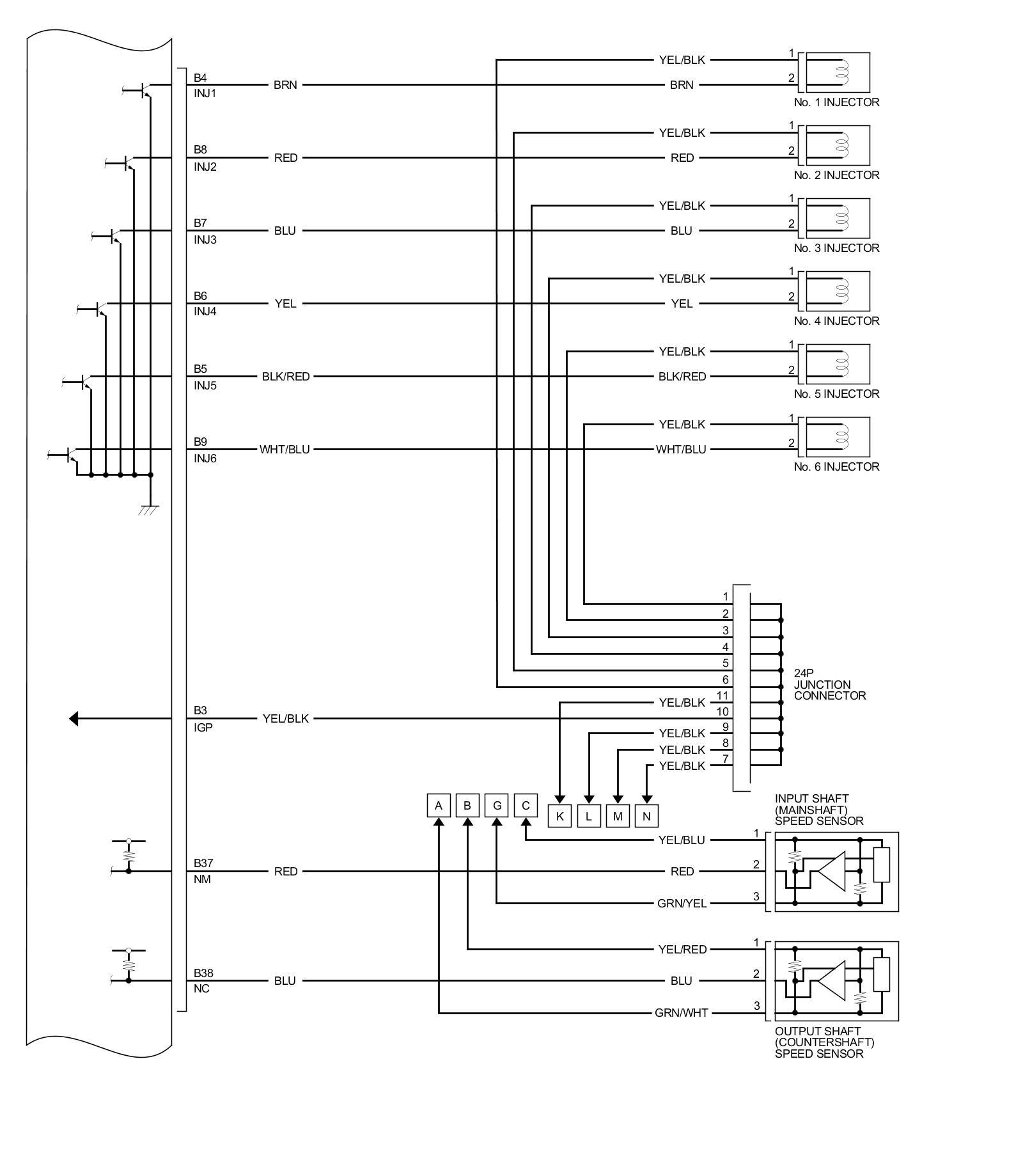

ECM/PCM Circuit Diagram ('08-09 models)

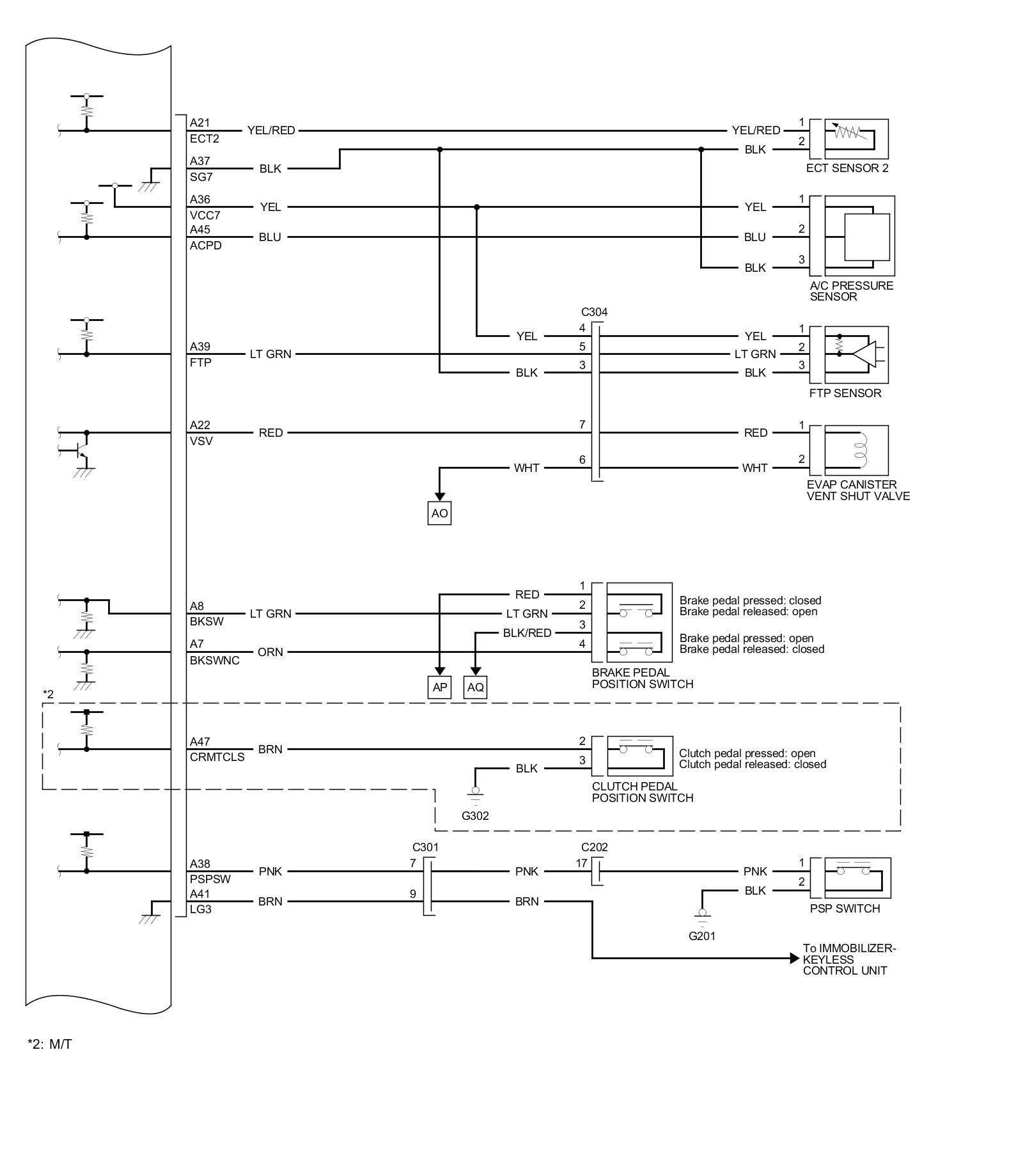

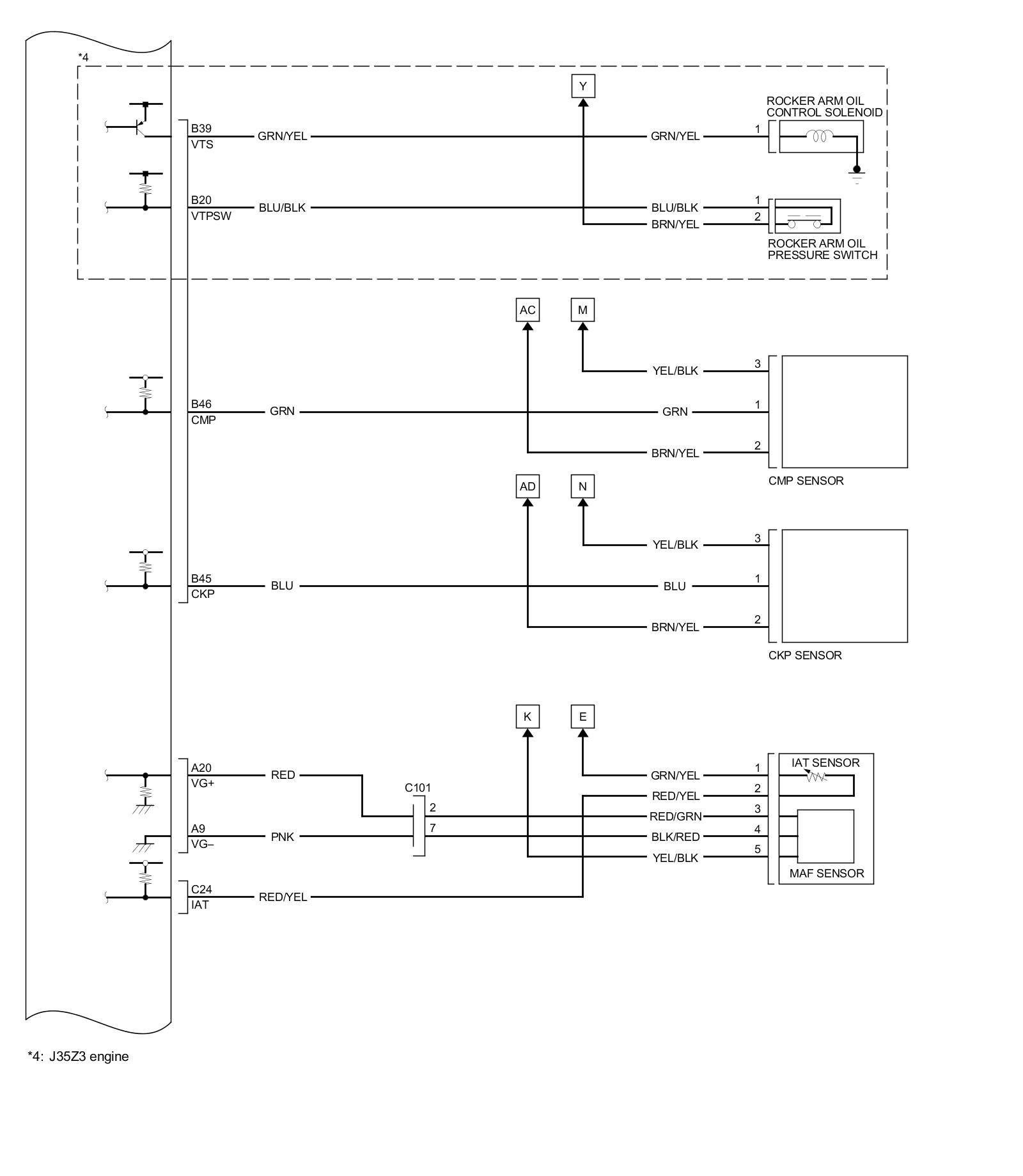

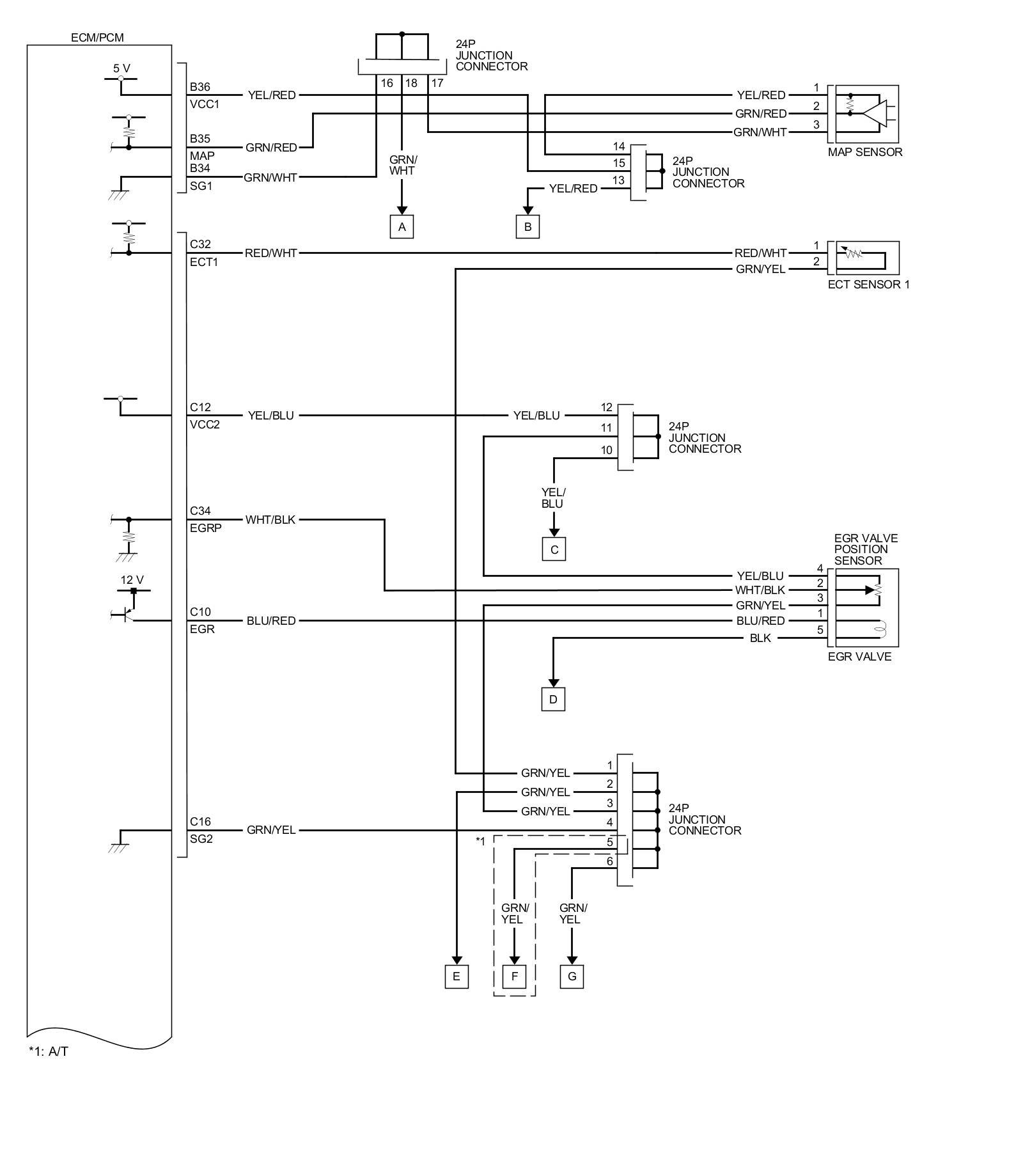

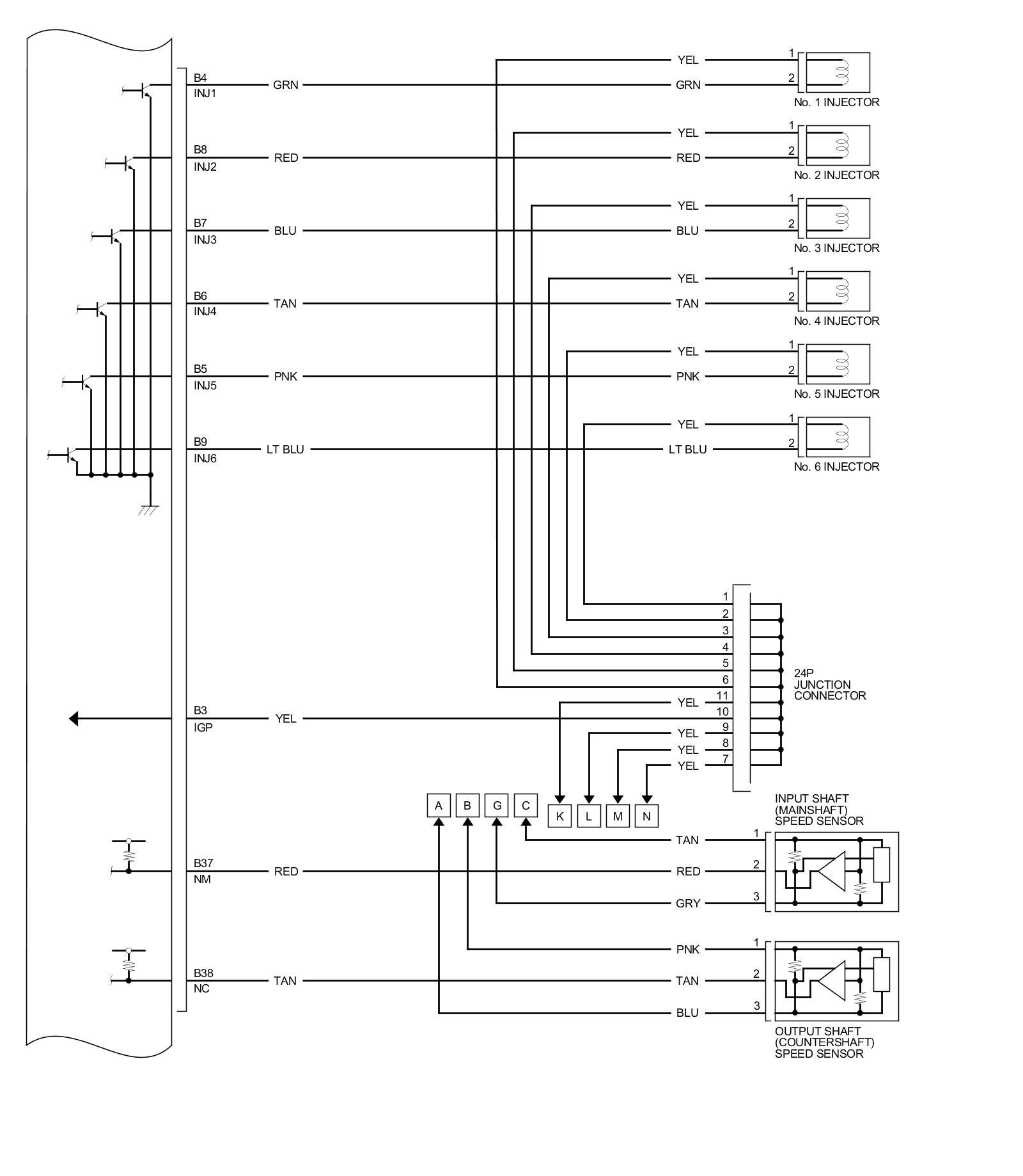

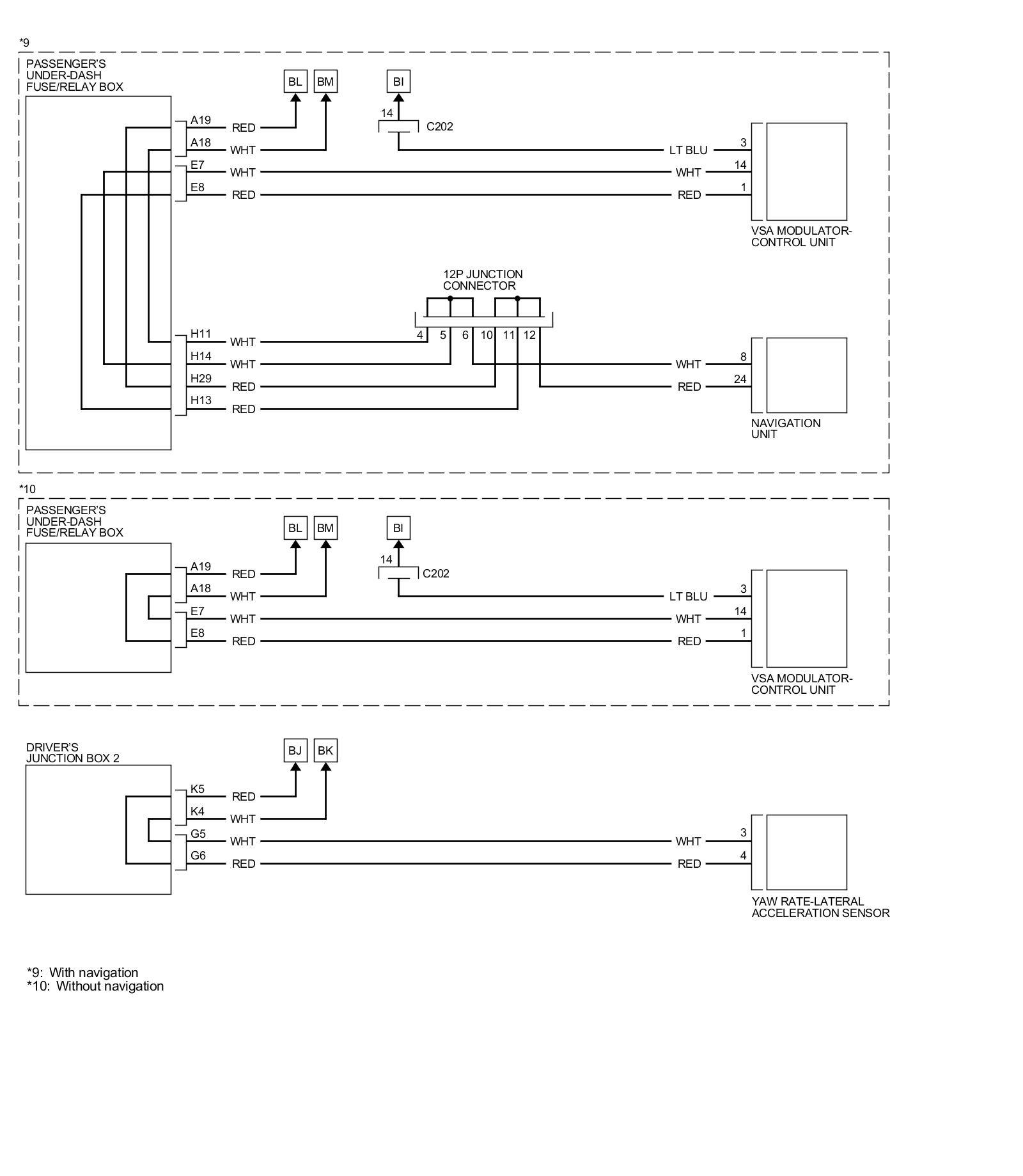

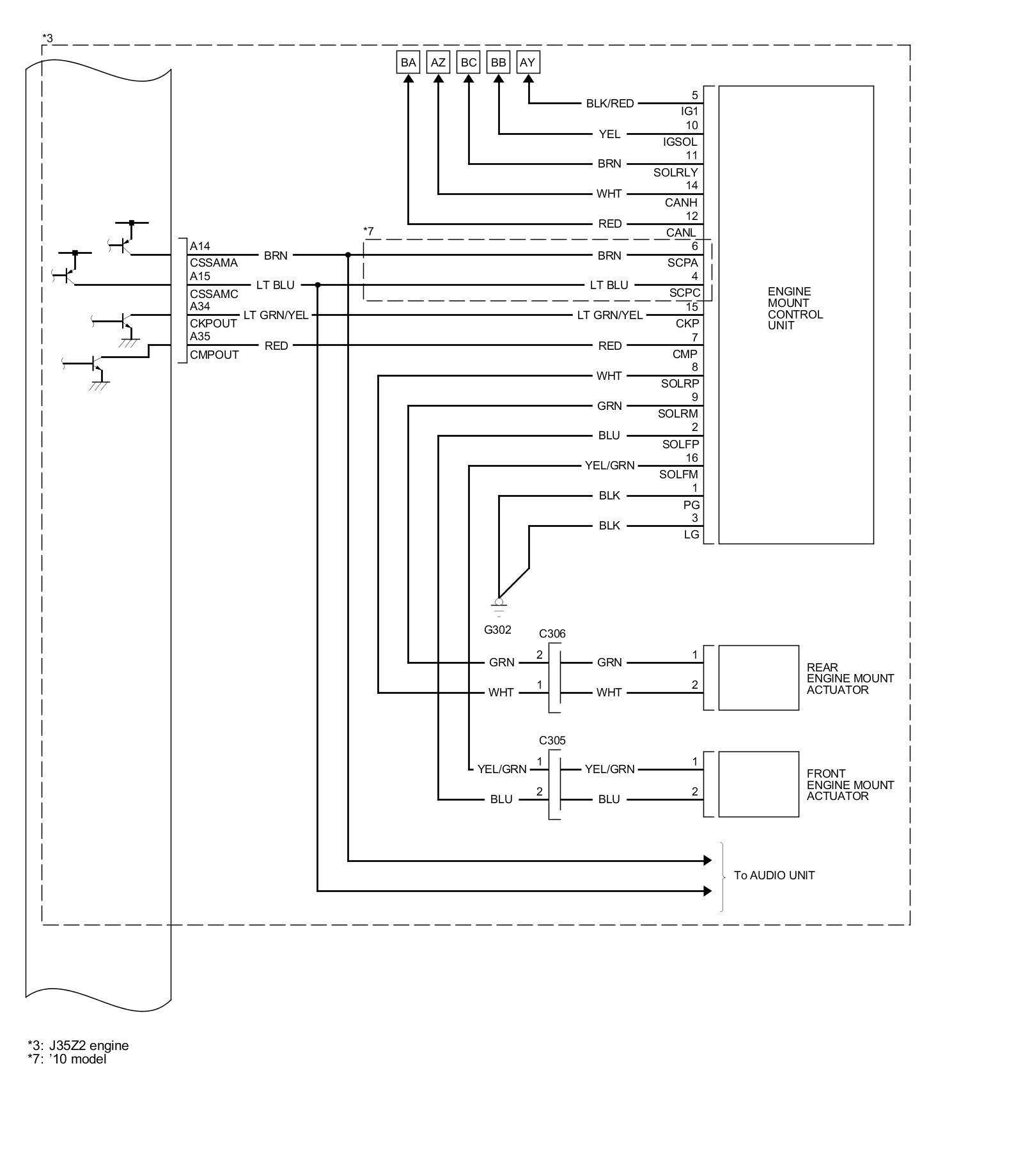

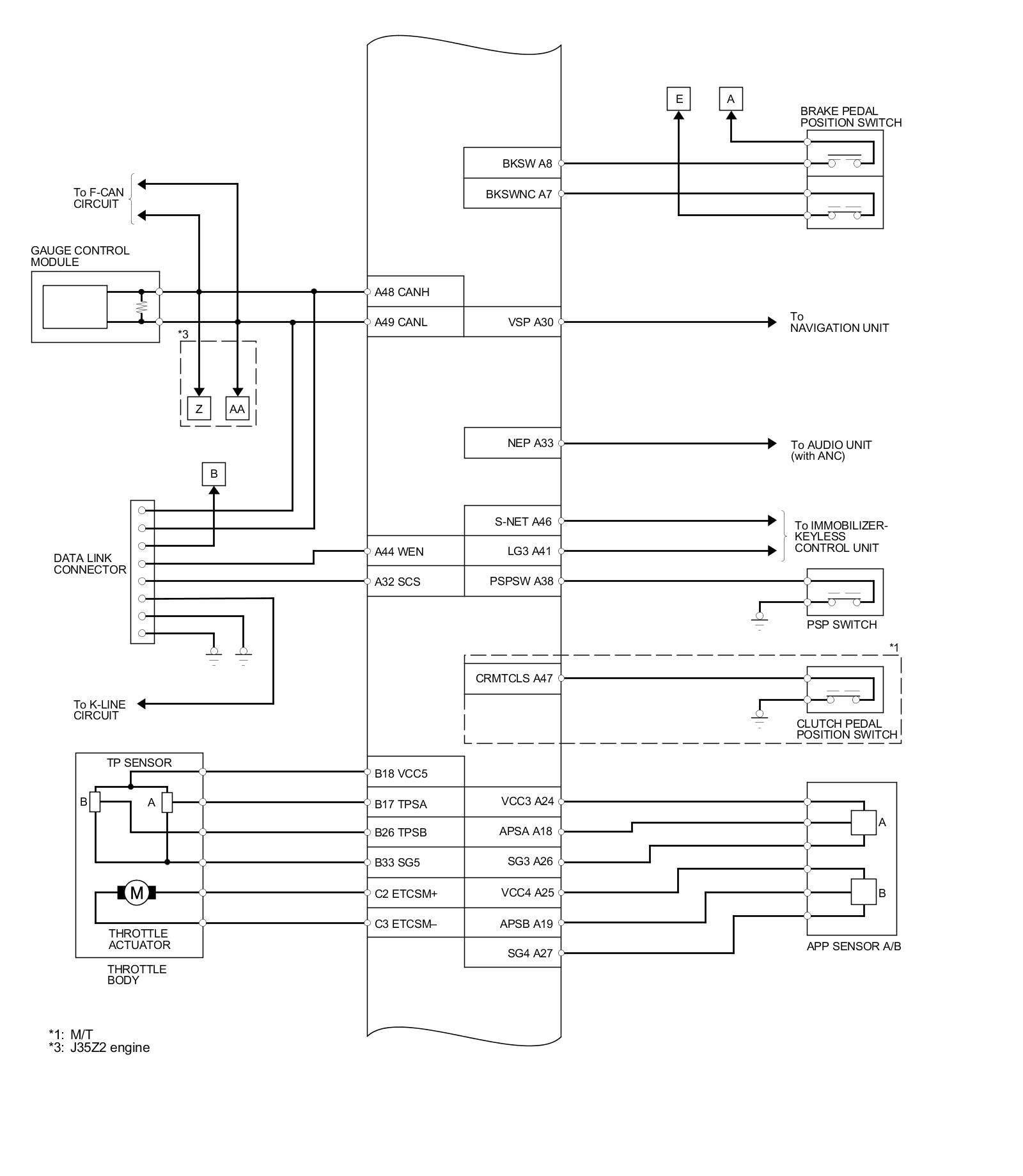

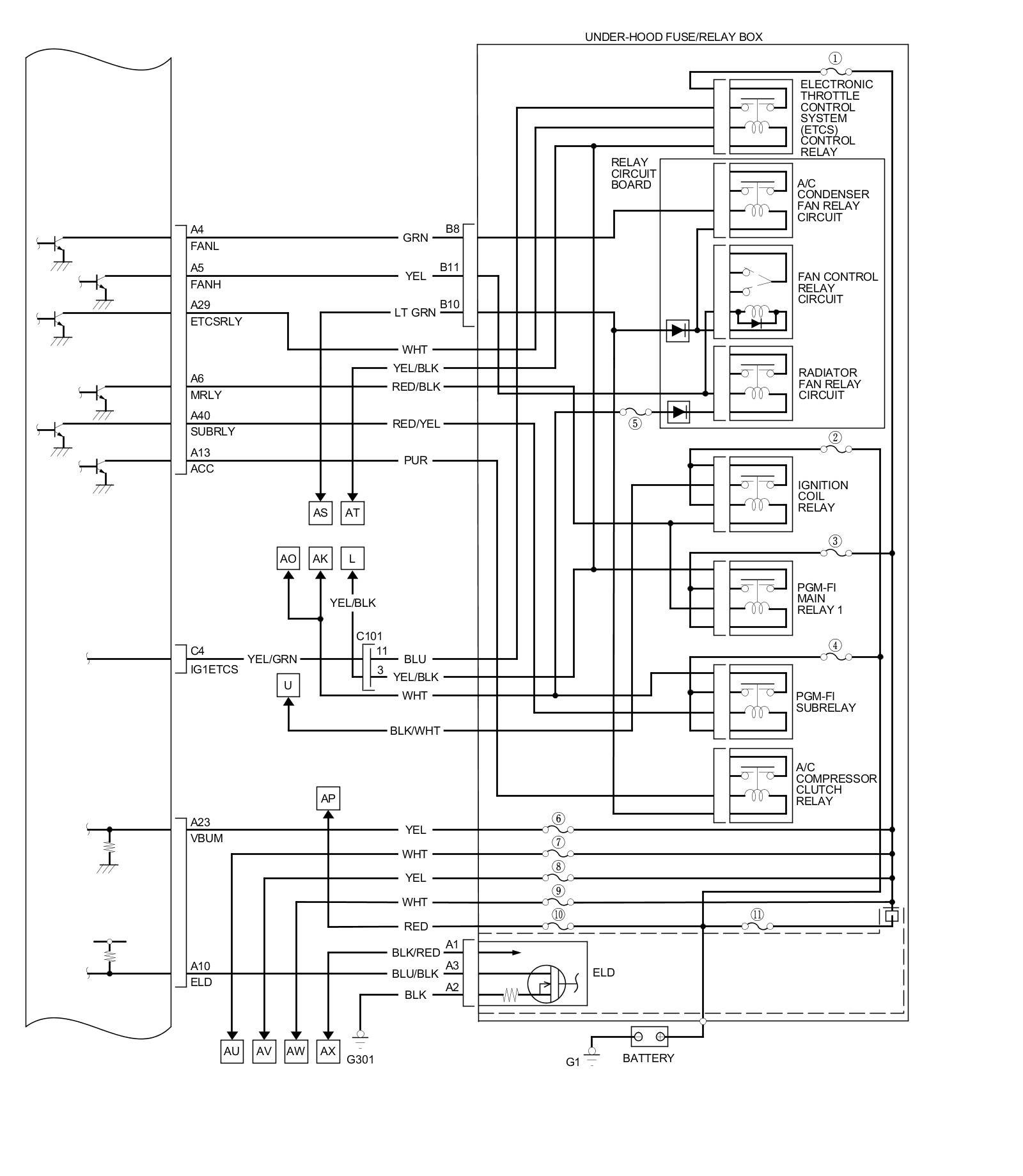

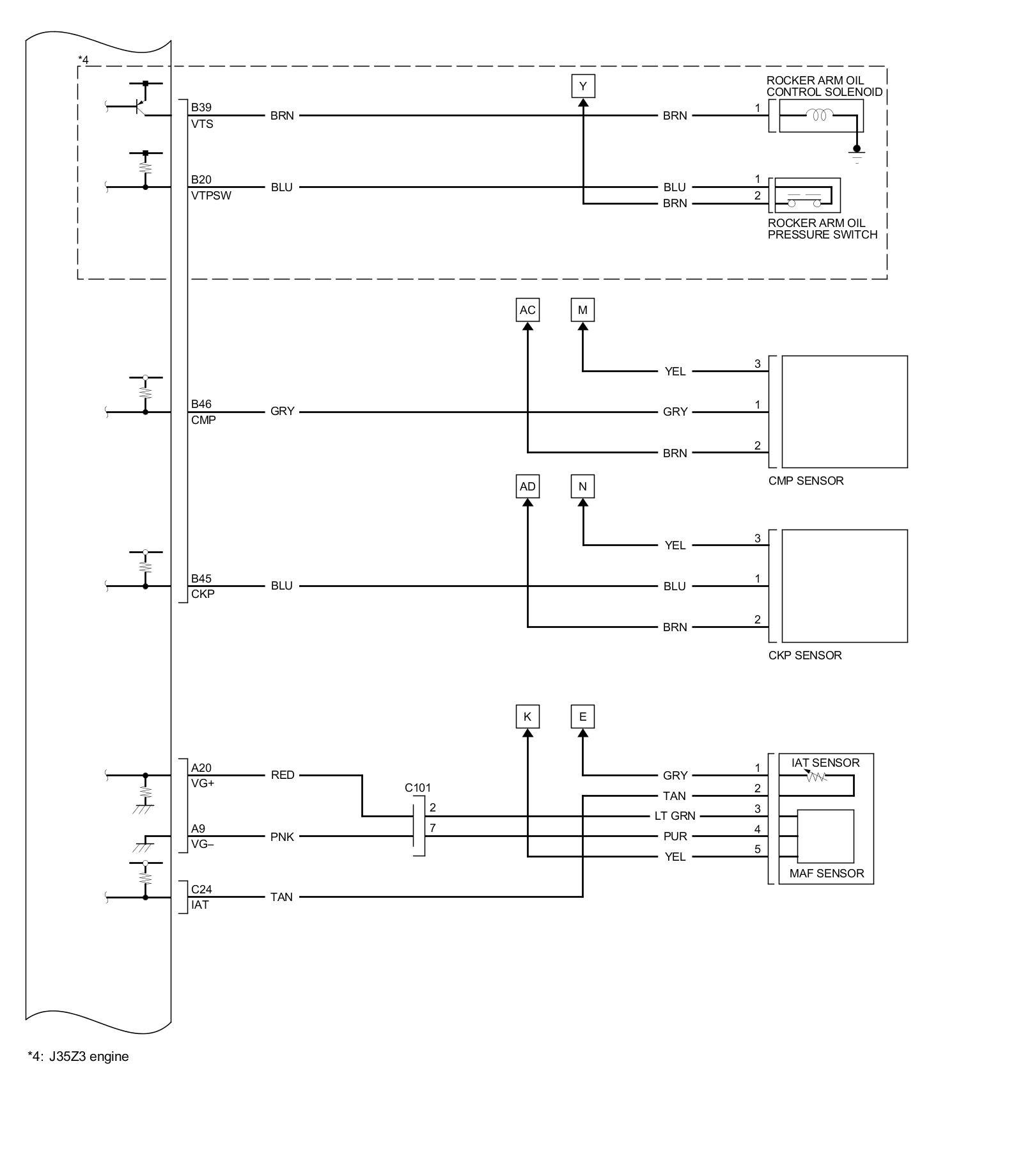

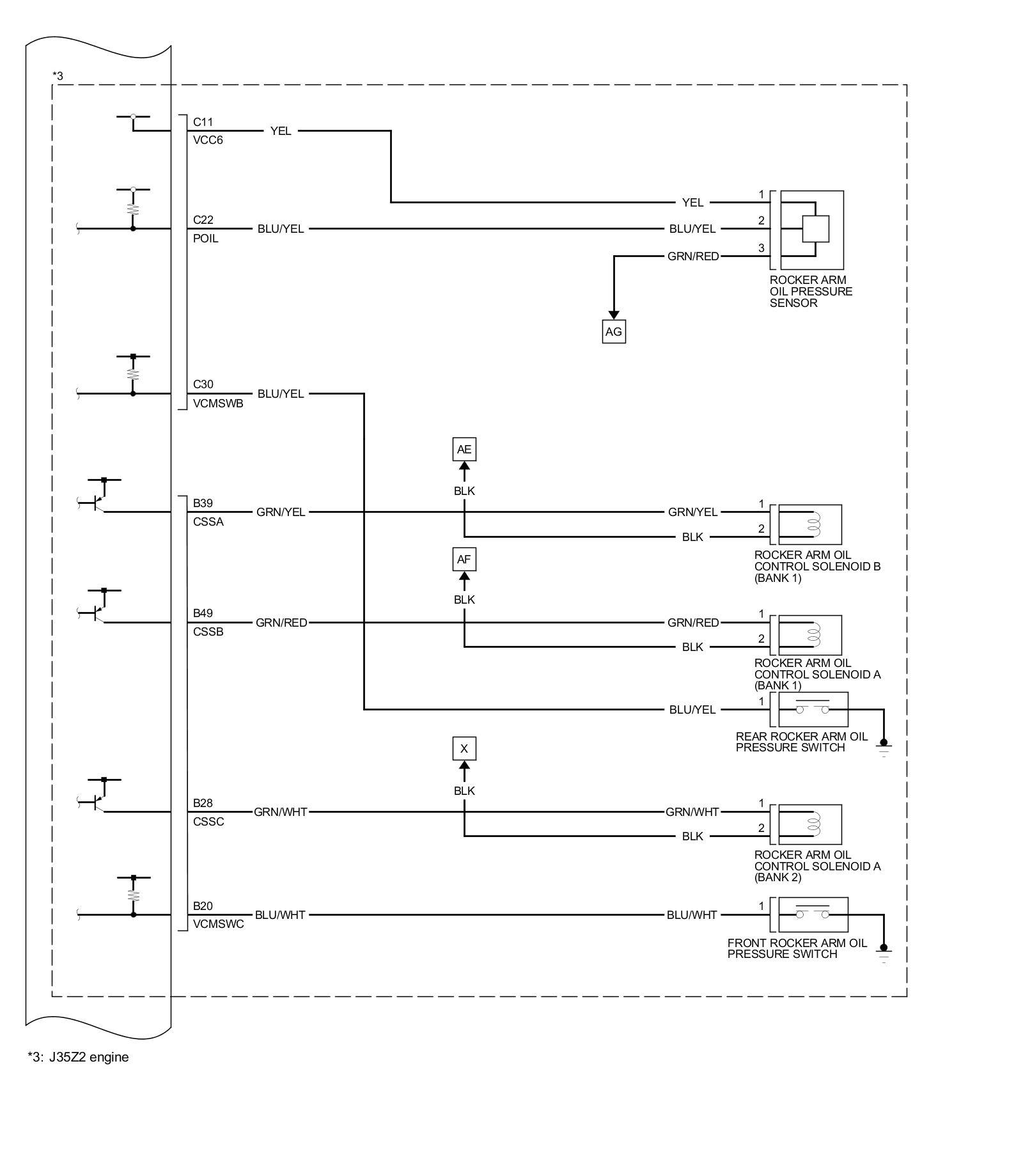

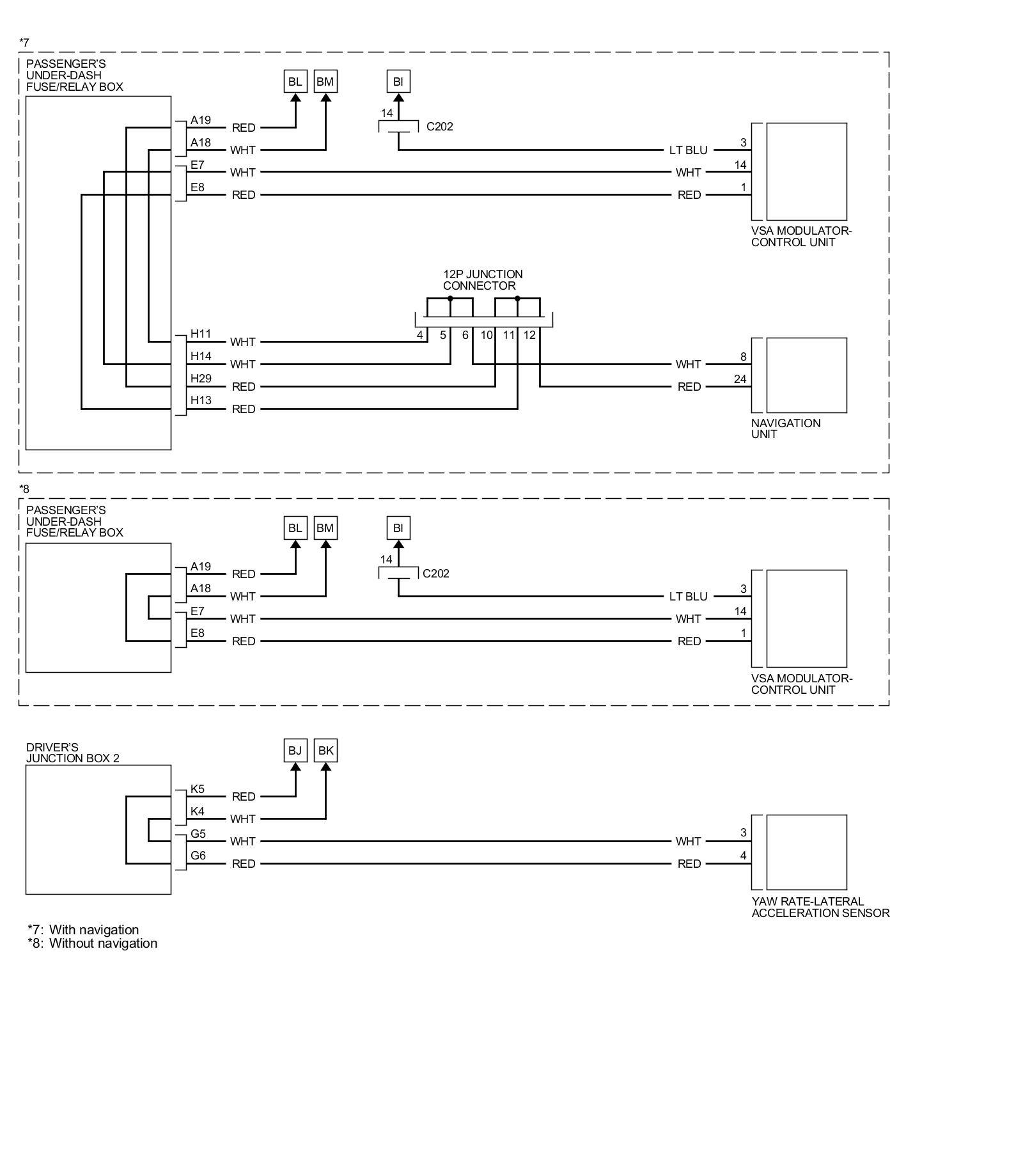

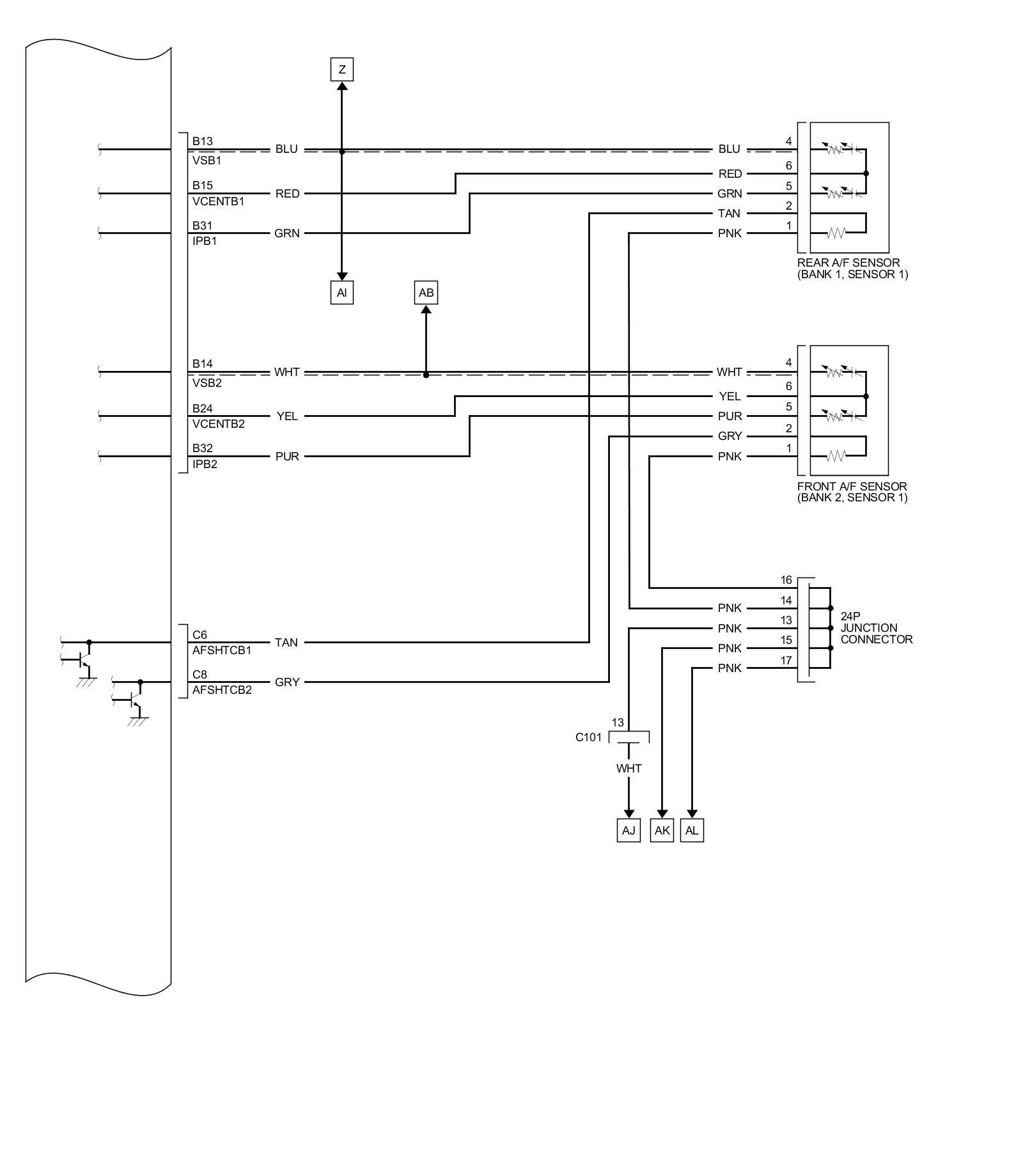

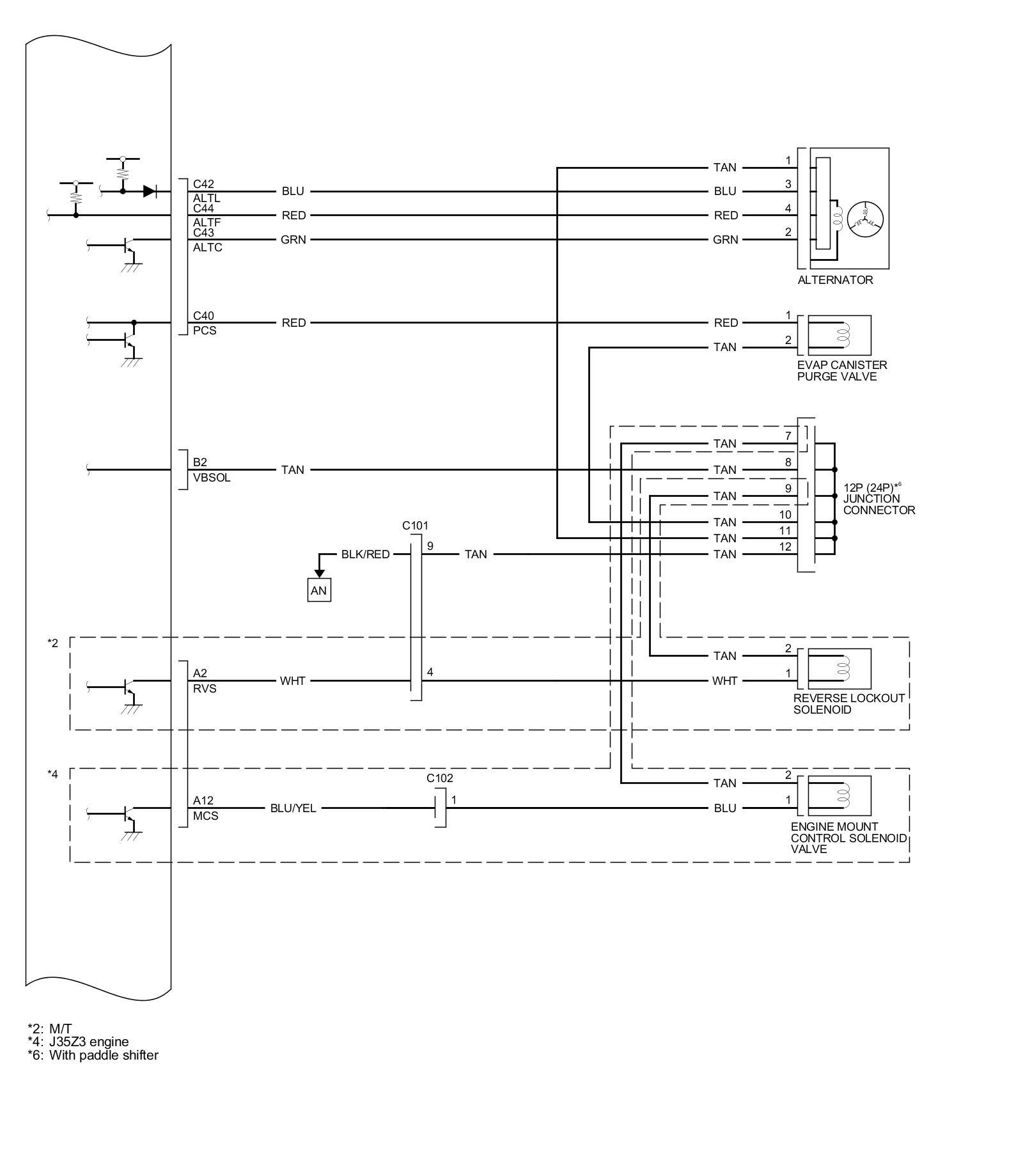

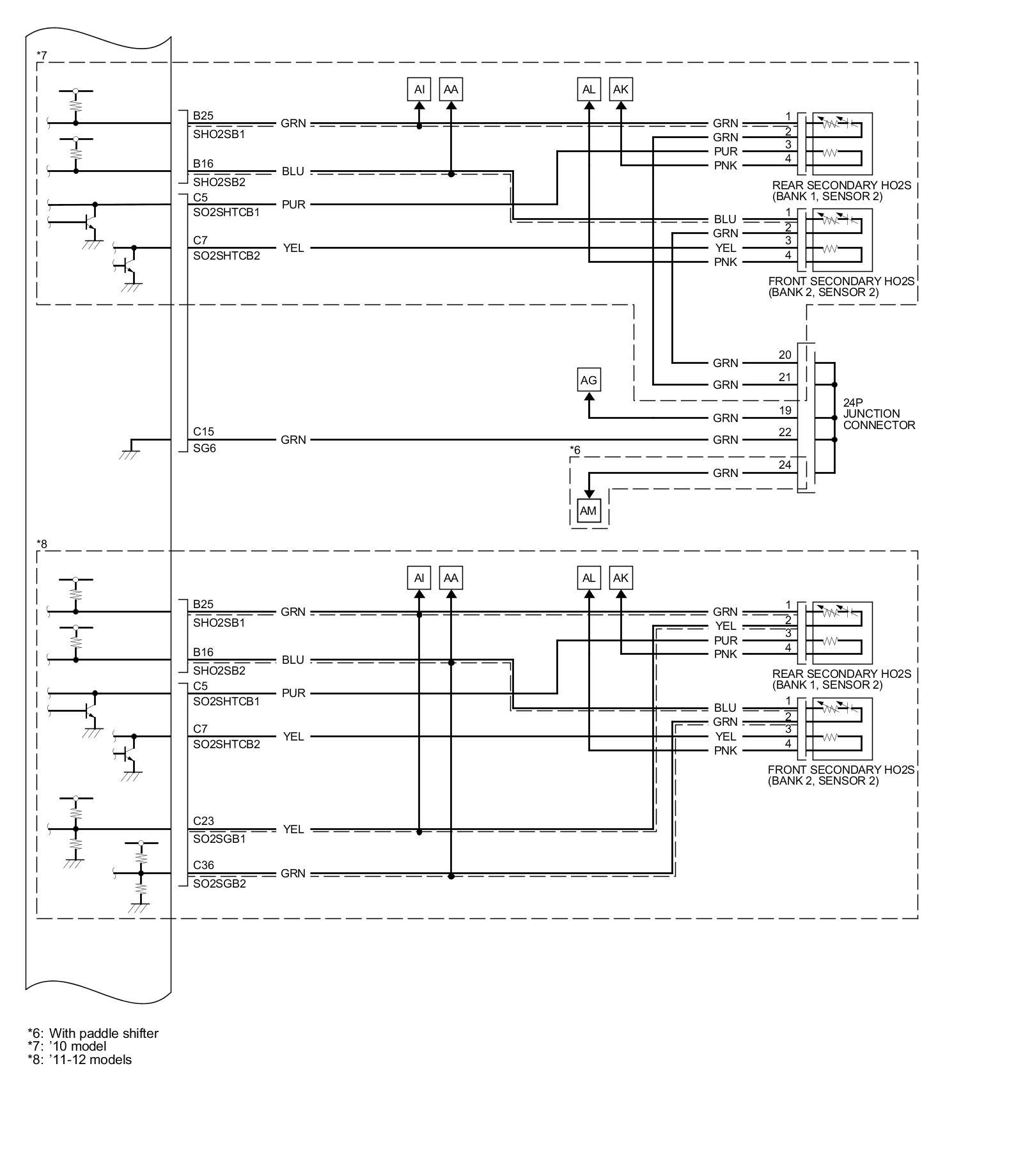

ECM/PCM Circuit Diagram ('10-12 models)
