Ignition Key Switch Test

WARNING: This page is about a different variant/trim than selected.

NOTE: SRS components are located in this area. Review the SRS component locations 4-door (see COMPONENT LOCATION INDEX ), 2-door (see 2-DOOR ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the steering column upper and lower covers (see COLUMN COVER REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A).

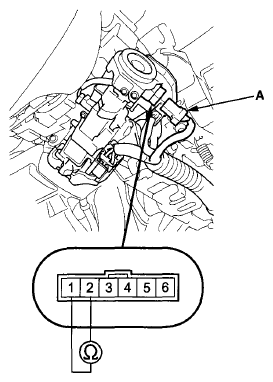

Fig 1: Checking Continuity Between Terminals No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between terminals in each switch position according to the table.

Fig 2: Continuity Between Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, the ignition key switch is faulty; replace the steering lock (see CHECK OF LOCK LEVER FORCE ).
