Ignition Key Light Test
WARNING: This page is about a different variant/trim than selected.
NOTE:
SRS components are located in this area. Review the SRS component locations 4-door (see
COMPONENT LOCATION INDEX
), 2-door (see
2-DOOR
), and precautions and procedures (see
PRECAUTIONS AND PROCEDURES
) before doing repairs or servicing.
- Remove the steering column upper and lower covers (see COLUMN COVER REMOVAL/INSTALLATION ).

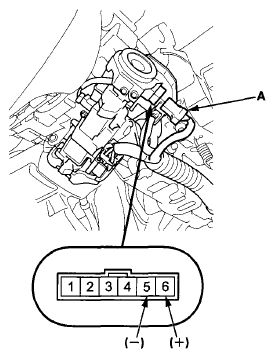

- Disconnect the 6P connector (A).
- The LED should come on when power is connected to terminal No. 6 and ground is connected to terminal No. 5.
- If the LED does not come on, the ignition key switch is faulty; replace the steering lock (see CHECK OF LOCK LEVER FORCE ).
