Shift Interlock Switch: Testing and Inspection

Park Pin Switch Test

Produced in USA models

1. Remove the center console Center Console Removal/Installation.

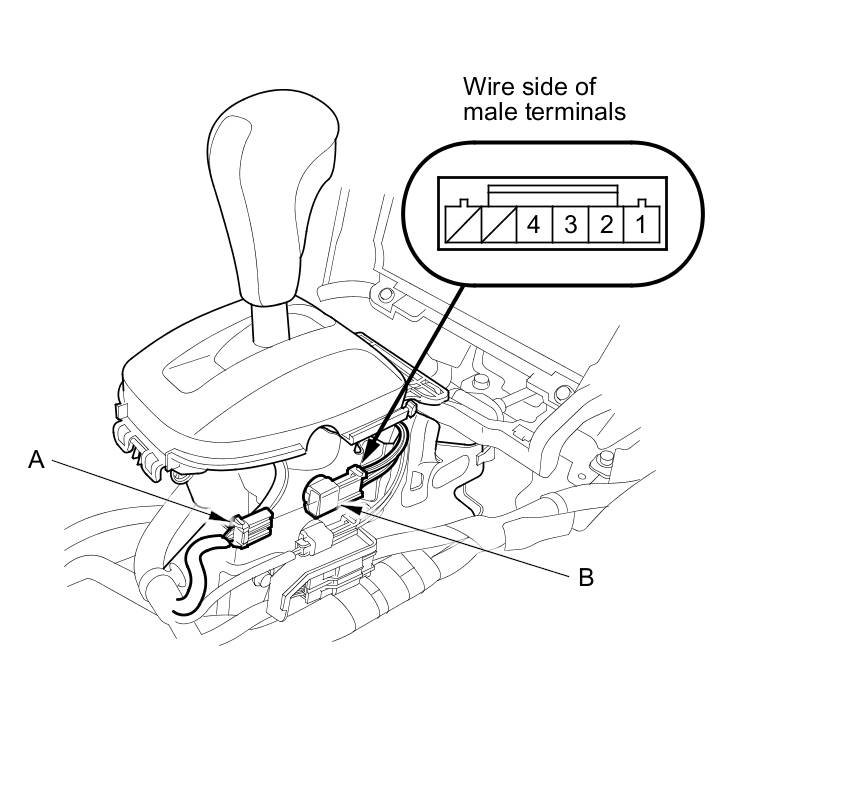

2. Disconnect the A/T gear position indicator panel light/park pin switch 6P connector (A) from the park pin switch (B).

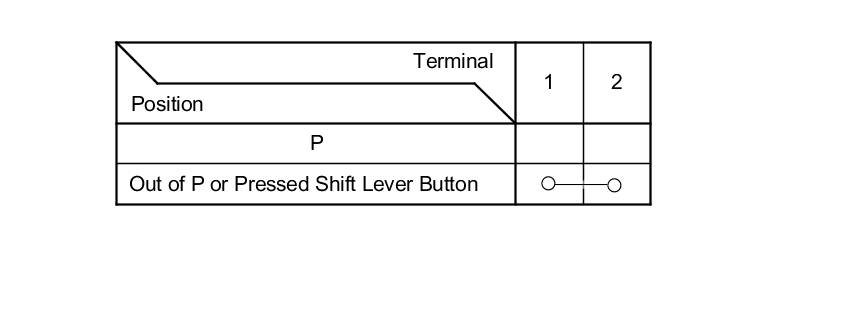

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, check the shift cable adjustment Adjustments. If the cable adjustment is OK, go to step 5. If the park pin switch fails the test, replace the park pin switch Service and Repair.

5. Install the parts in the reverse order of removal.

Produced in Saitama models

1. Remove the center console Center Console Removal/Installation.

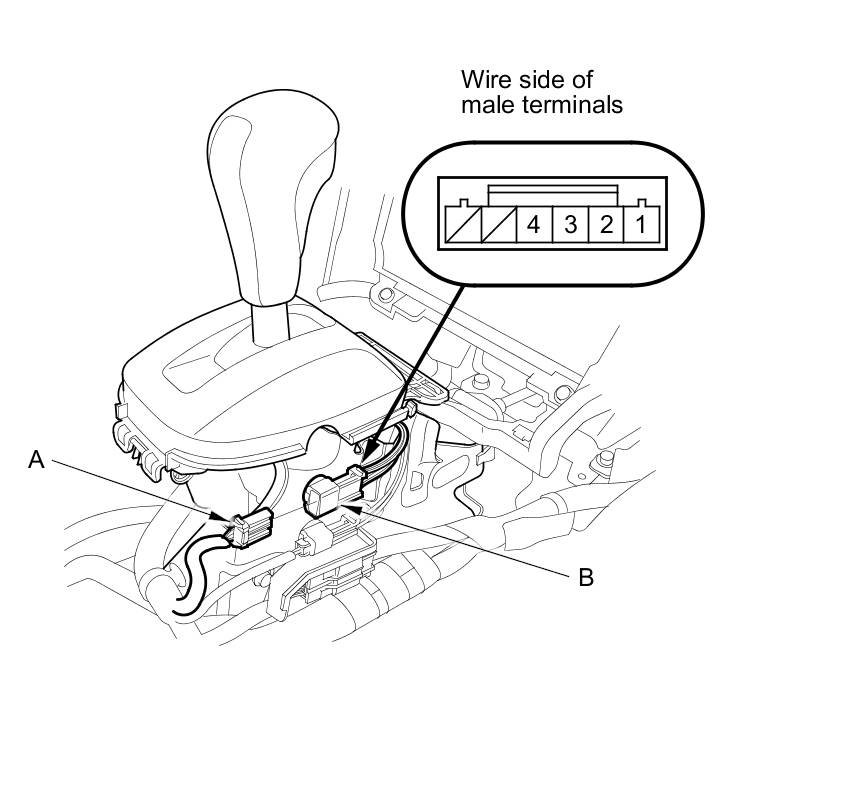

2. Disconnect the A/T gear position indicator panel light/park pin switch 6P connector (A) from the park pin switch (B).






3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, check the shift cable adjustment Adjustments. If the cable adjustment is OK, go to step 5. If the park pin switch fails the test, replace the park pin switch Service and Repair.

5. Install the parts in the reverse order of removal.
