Relay And Control Unit Locations - Seat




Relay and Control Unit Locations - Seat

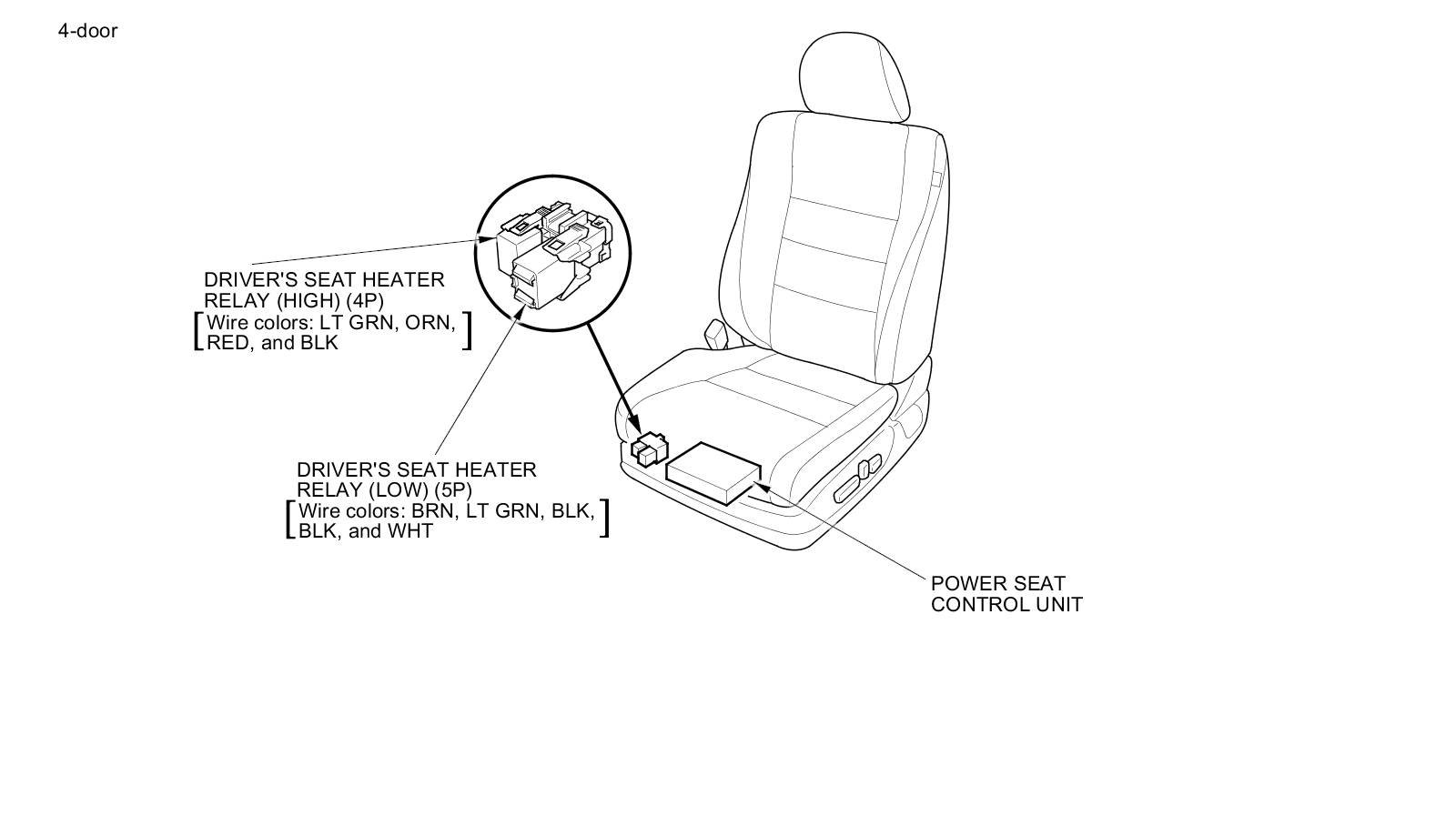

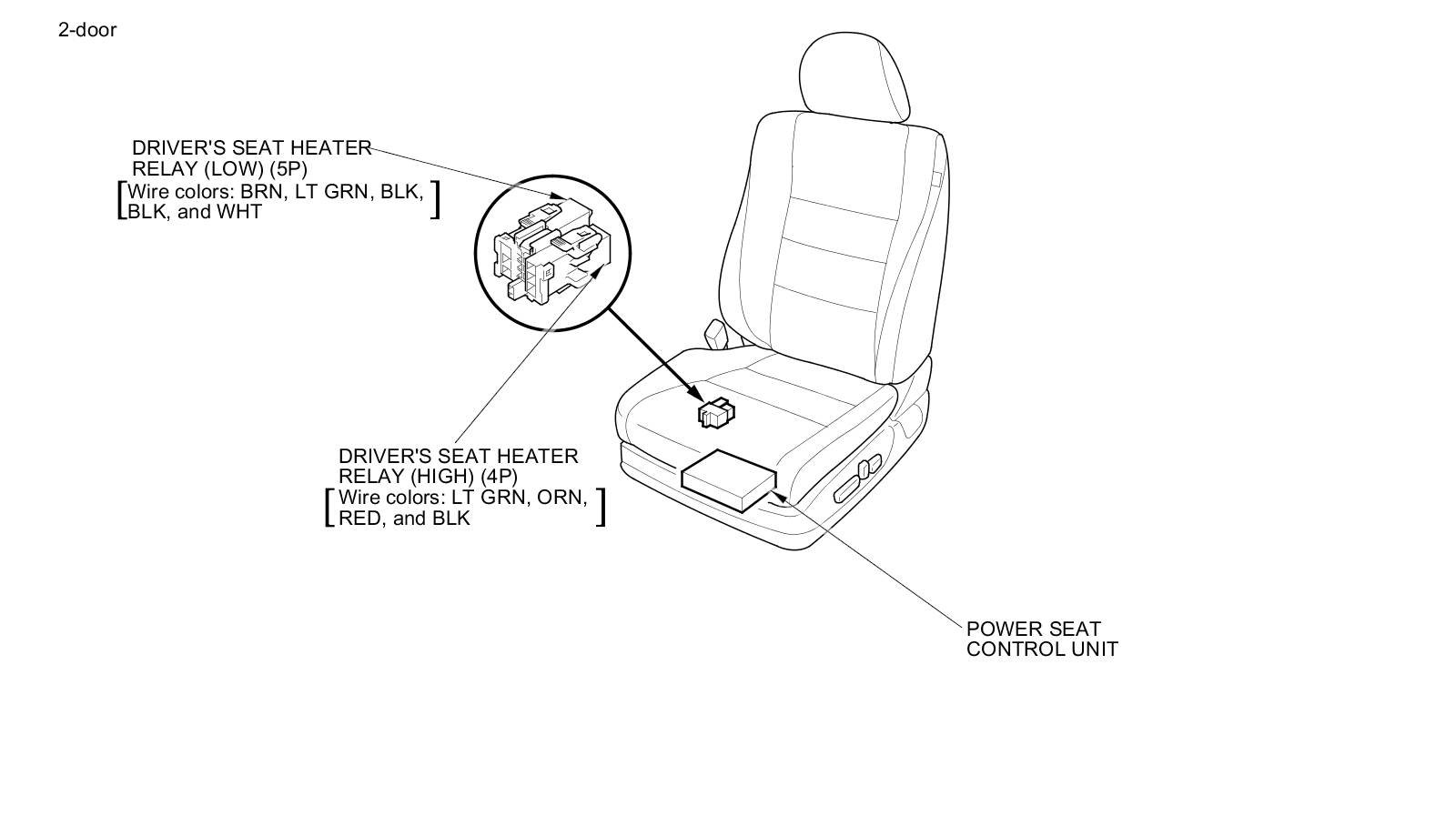

Driver's Seat (With DPMS)

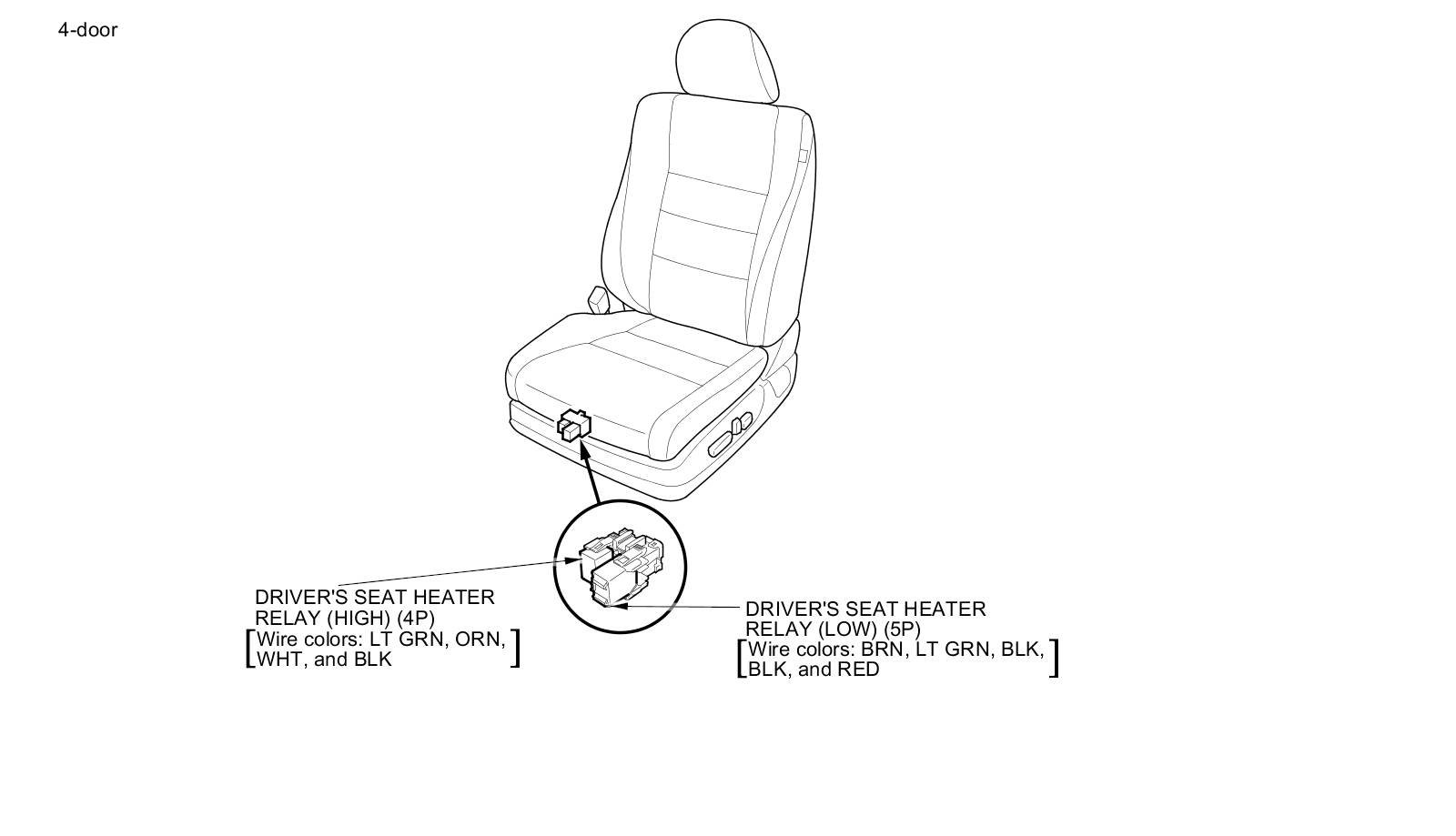

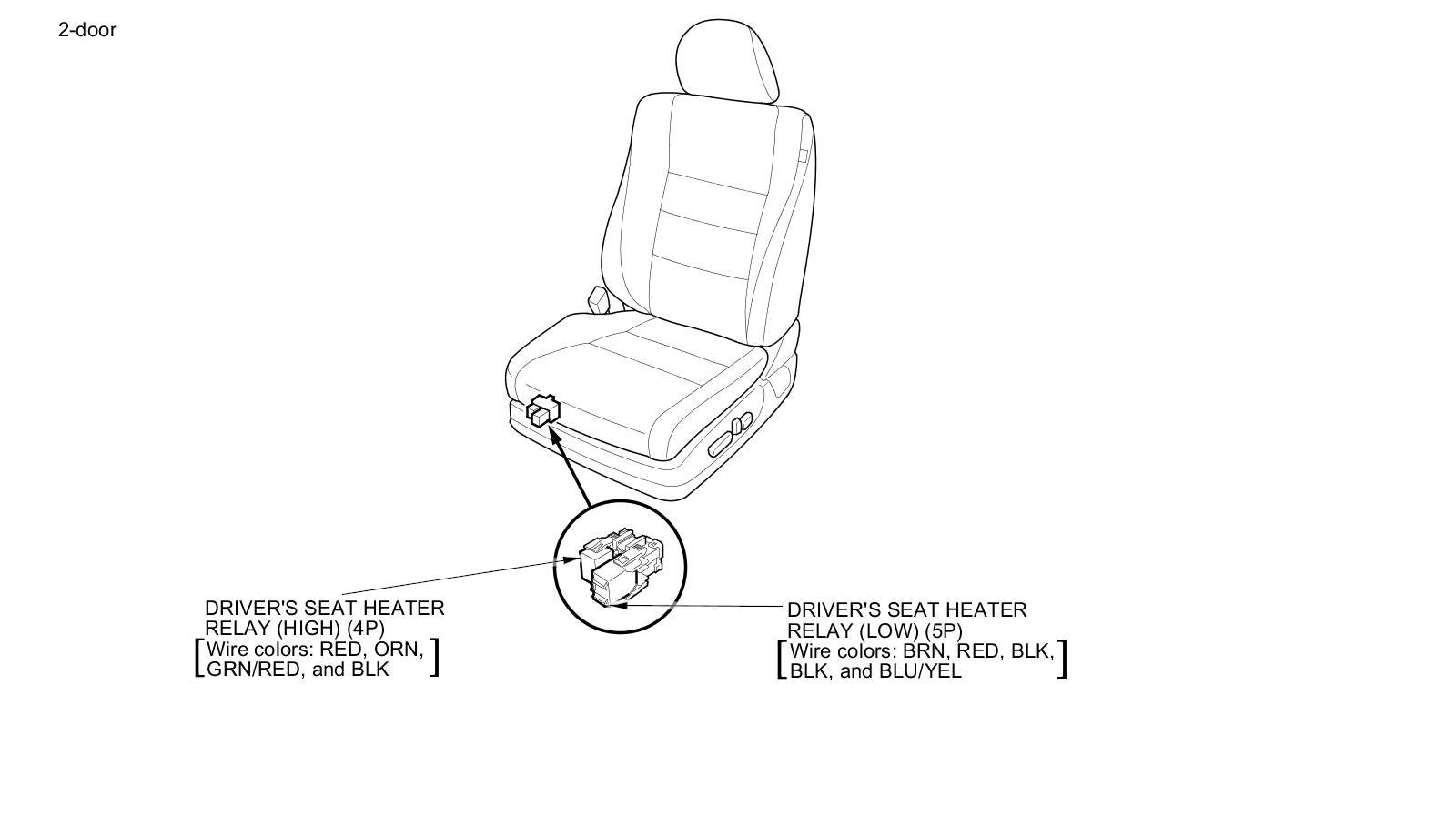

Driver's Seat (Without DPMS)

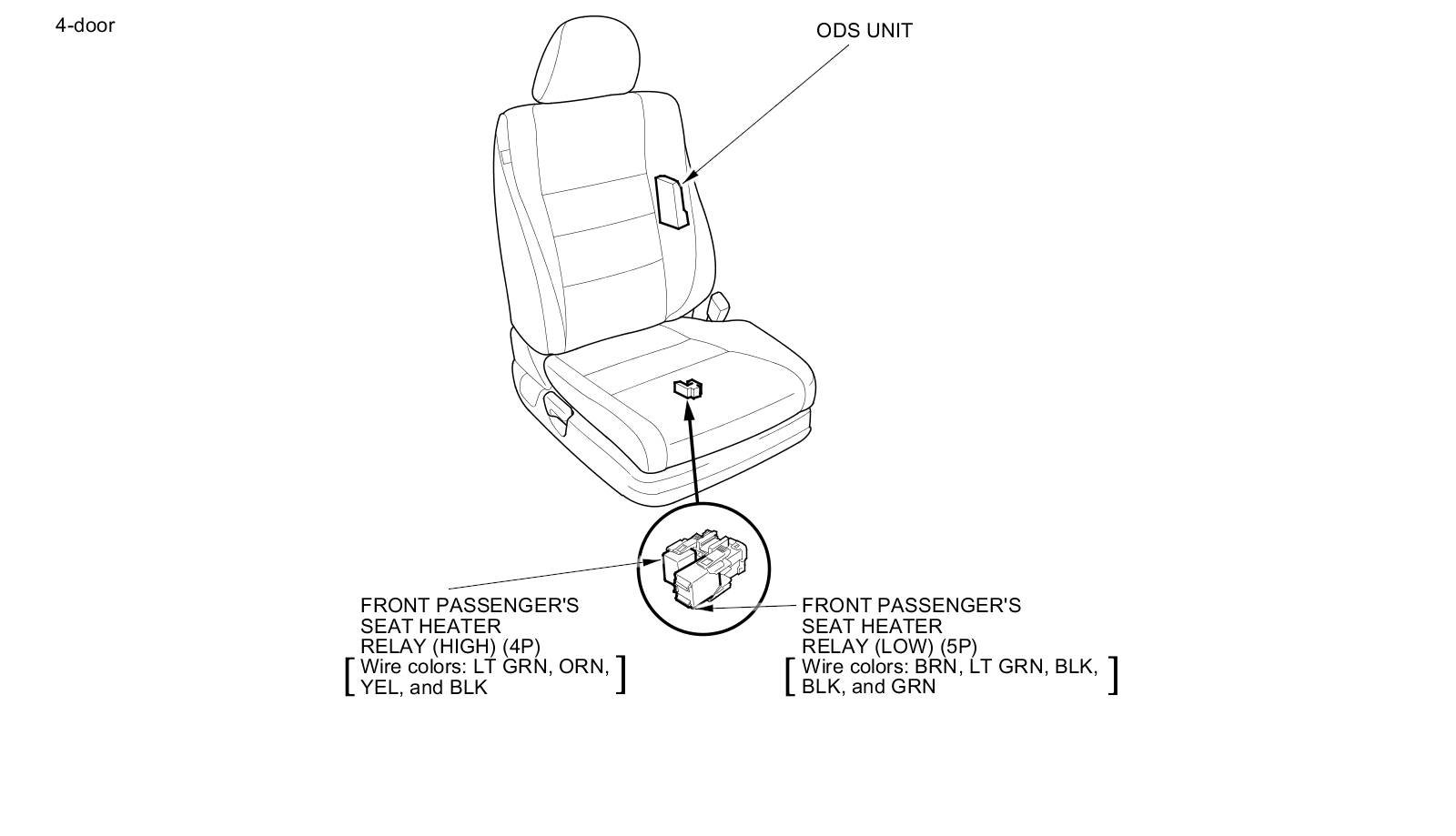

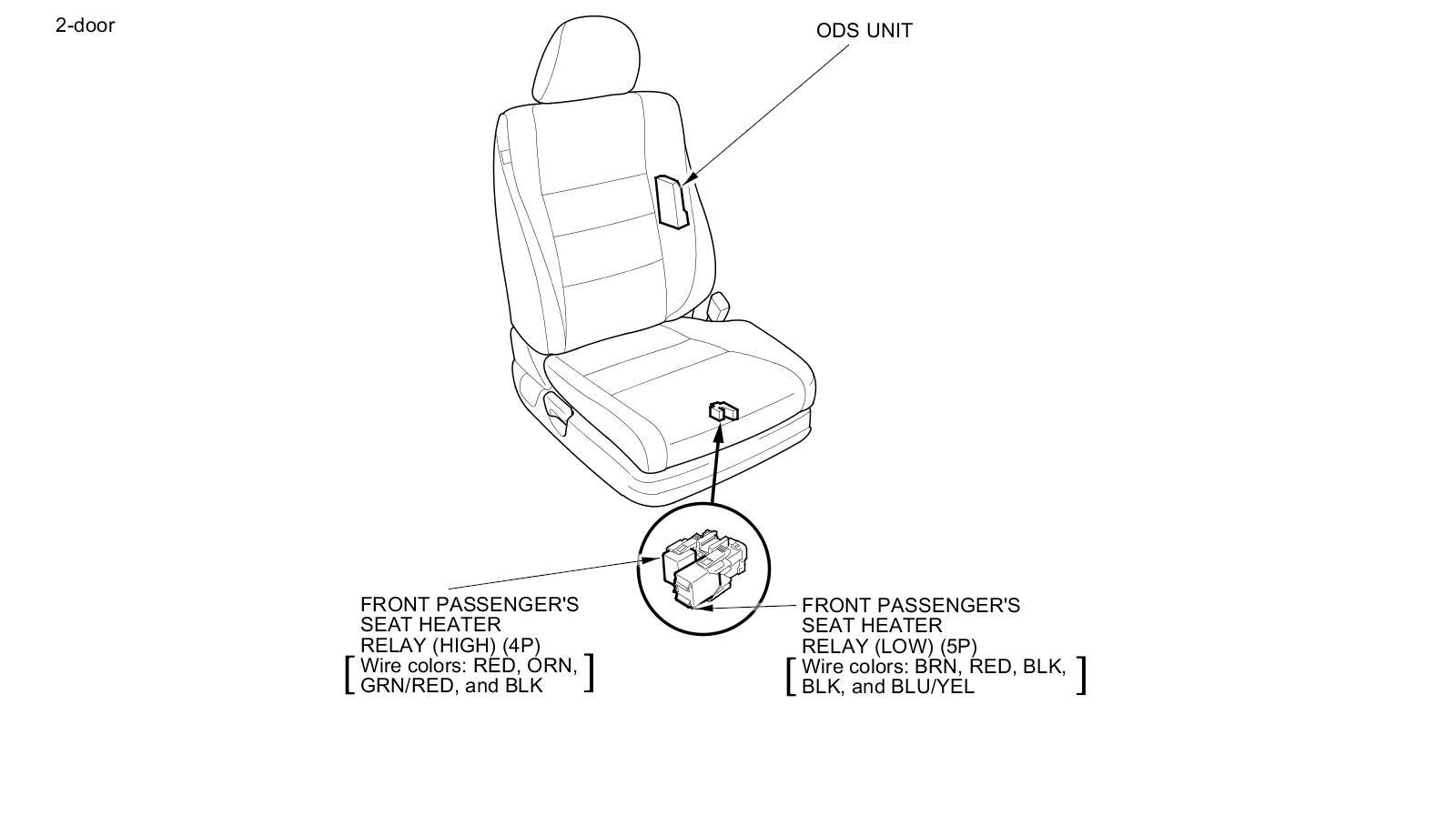

Front Passenger's Seat
