Home >> Honda >> 2012 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 304 - Driver's Junction Box 2 Connector View

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

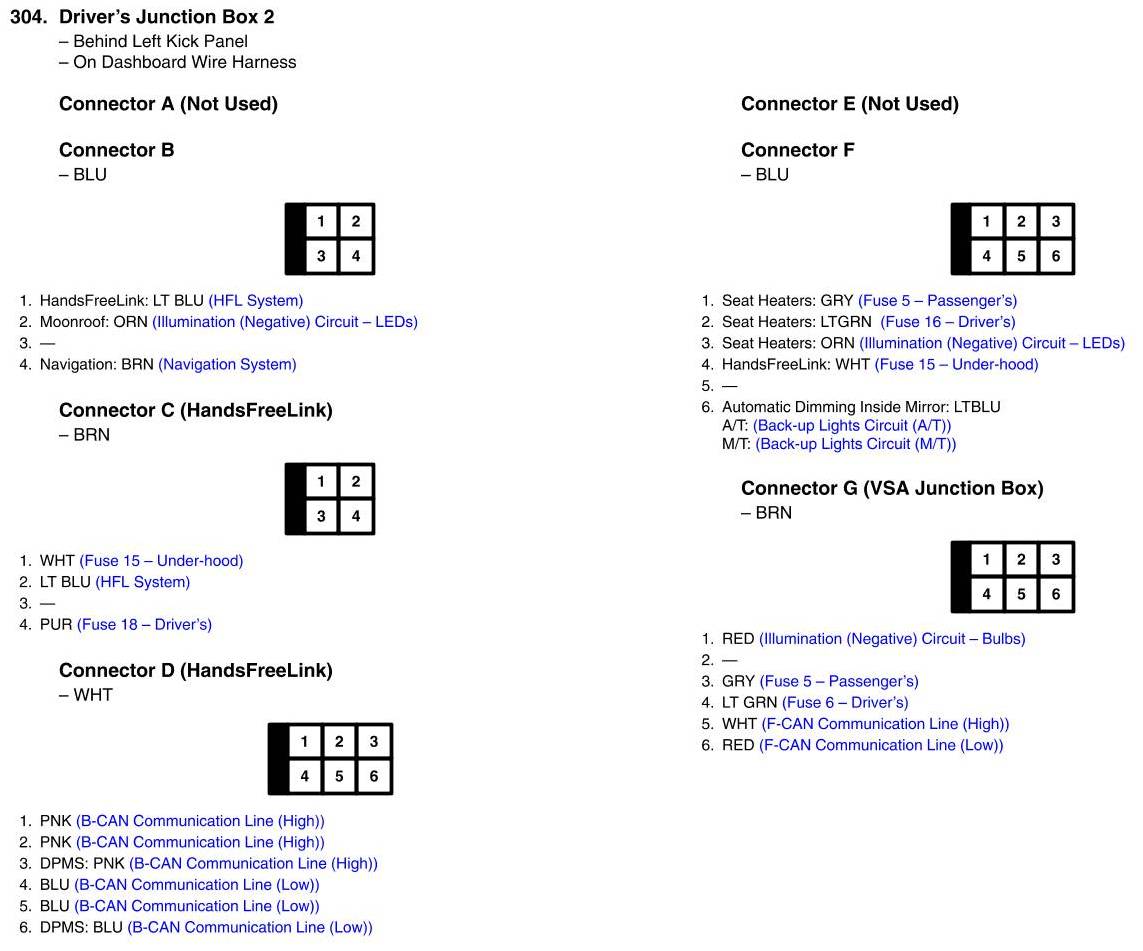

View 304 - Driver's Junction Box 2 Connector View
