PCM Connector End View (View 285)

BLK
Right side of engine compartment

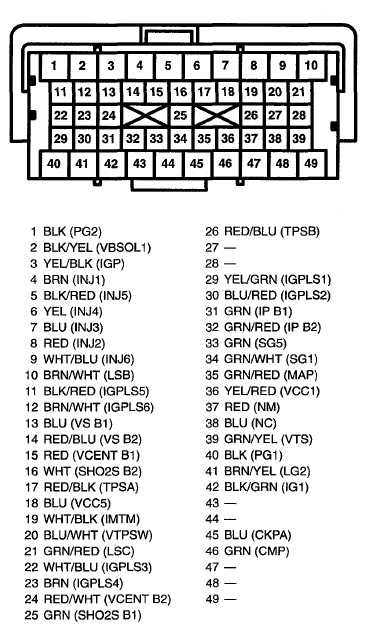

Connector A
- On right engine compartment wire harness
Fig 1: PCM Connector Terminal (View 285)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

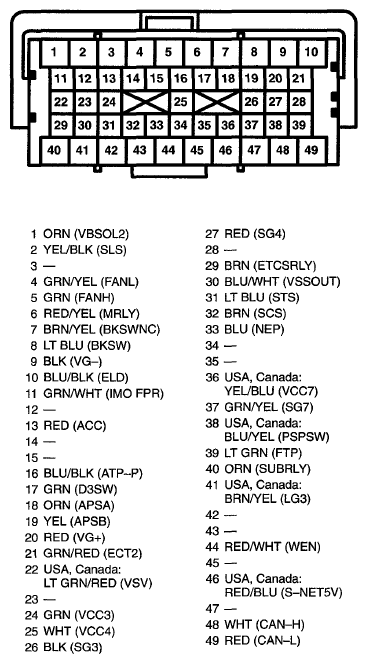

Connector B
- On engine wire harness
Fig 2: Connector B Terminal (View 285)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

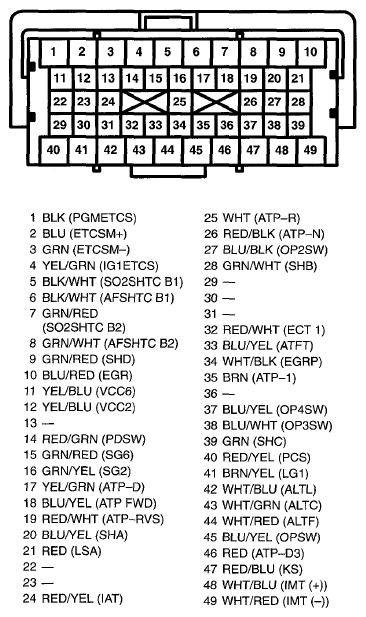

Connector C
- On engine wire harness
Fig 3: Connector C Terminal (View 285)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
