VSA Modulator-Control Unit (View 354)
BLK
Left Side of Engine Compartment
On Left Engine Compartment Wire Harness

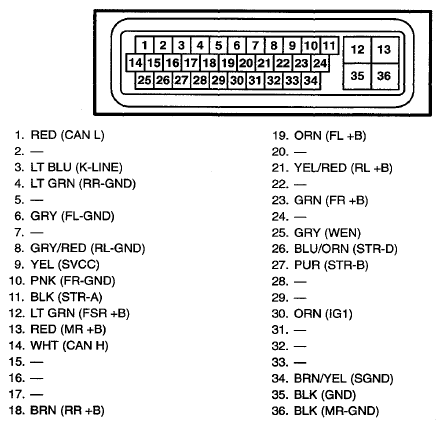

Fig 1: VSA Modulator-Control Unit Connector Terminal (View 354)
