HandsFreeLink Control Unit (Navigation) (View 349)
GRY
Under Center Console
On Dashboard Wire Harness

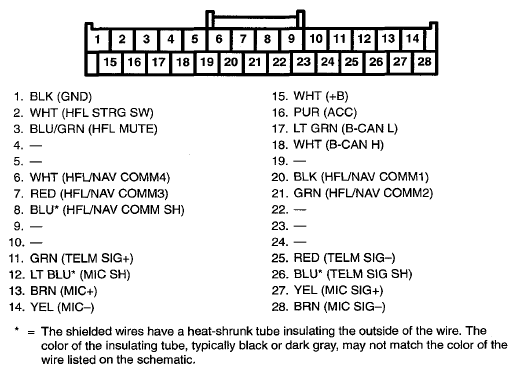

Fig 1: Handsfreelink Control Unit (Navigation) Connector Terminal (View 349)
