Power Window Master Switch Connector End View (View 362)
GRY
Driver's Door
On Driver's Door Wire Harness

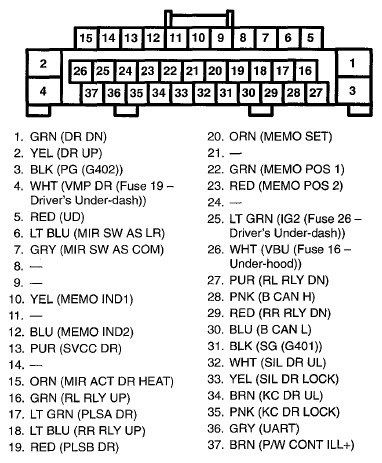

Fig 1: Power Window Master Switch Connector Terminals (View 362)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
