Tightening Torque And Sequence

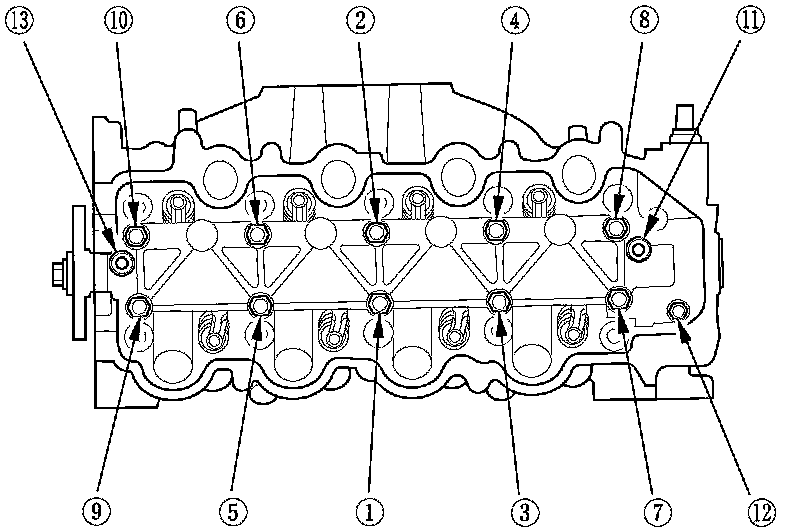

Cylinder Head

Torque the cylinder head bolts in sequence to 29 N-m (3.0 kgf-m, 22 lbf-ft)






Tighten all cylinder head bolts an additional 130 °






Camshaft Bearing Cap
