Park Pin Switch Test

Park Pin Switch Test

1. Remove the center console Center Console Removal/Installation.

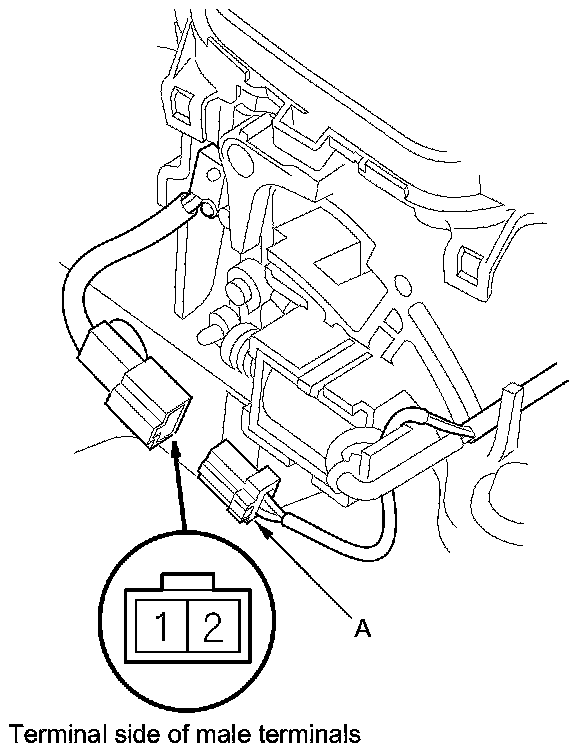

2. Disconnect the park pin switch 2P connector (A).





3. Check for continuity between connector terminals No. 1 and No. 2.

- There should be continuity when the shift lever is moved out of P.
- There should be no continuity when the shift lever is moved to P.

4. If the continuity is not as specified, replace the park pin switch Service and Repair.
