C702 Connector End View (View 208)

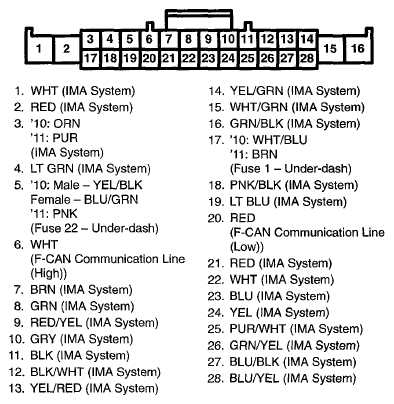

Fig 1: C702 Connector Terminal (View 208)
G07760794Courtesy of AMERICAN HONDA MOTOR CO., INC.
