C407 Connector End View (View 204)

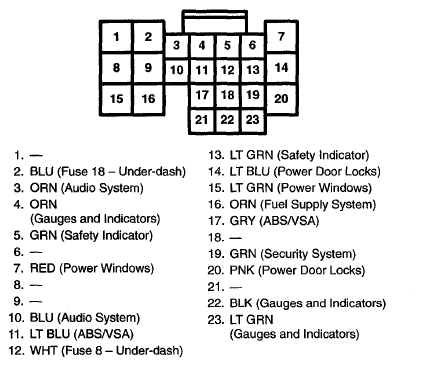

Fig 1: C407 Connector Terminal (View 204)
G07760790Courtesy of AMERICAN HONDA MOTOR CO., INC.
