C305 Connector End View (View 196)

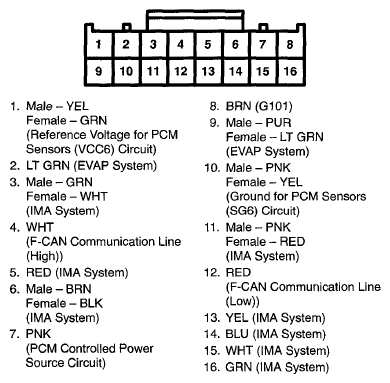

Fig 1: C305 Connector Terminal (View 196)
G07760782Courtesy of AMERICAN HONDA MOTOR CO., INC.
