C103 Connector End View (View 191)

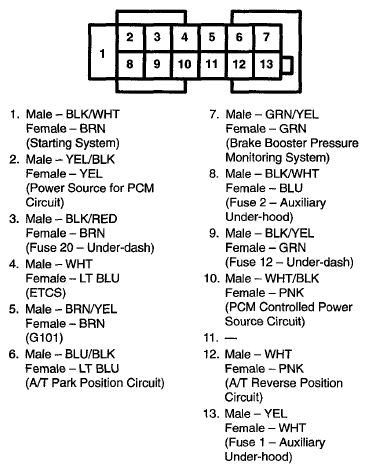

Fig 1: C103 Connector Terminal (View 191)
G07760777Courtesy of AMERICAN HONDA MOTOR CO., INC.
