Auxiliary Jack Assembly Connector End View (Auxiliary Jack Assembly) (View 139)

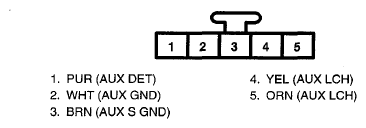

Fig 1: Auxiliary Jack Assembly (Auxiliary Jack Assembly) Connector Terminal (View 139)
G07760725Courtesy of AMERICAN HONDA MOTOR CO., INC.
