Component Location Index

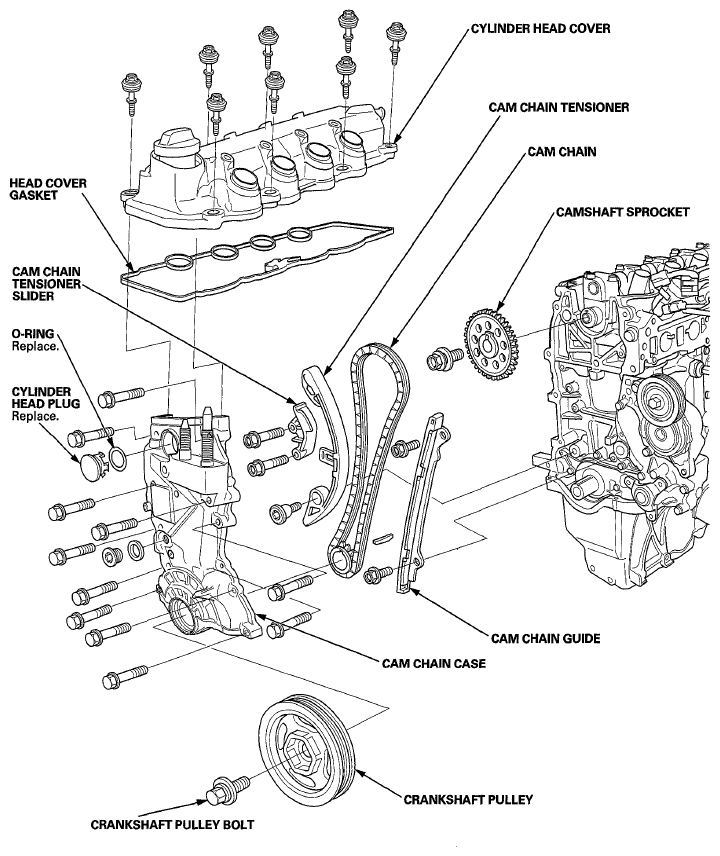

Fig 1: Identifying Cylinder Head Component Location (1 Of 3)
G06428846

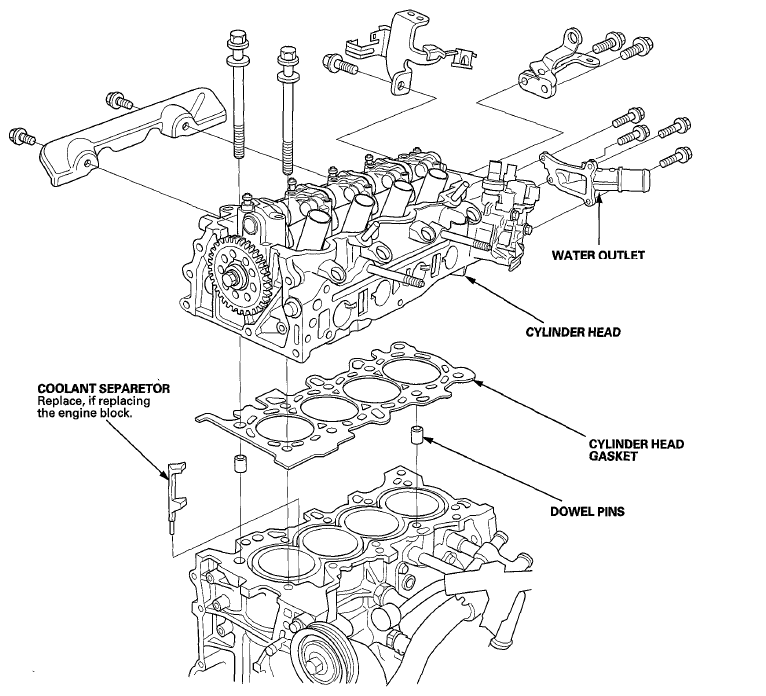

Fig 2: Identifying Cylinder Head Component Location (2 Of 3)
G06428847

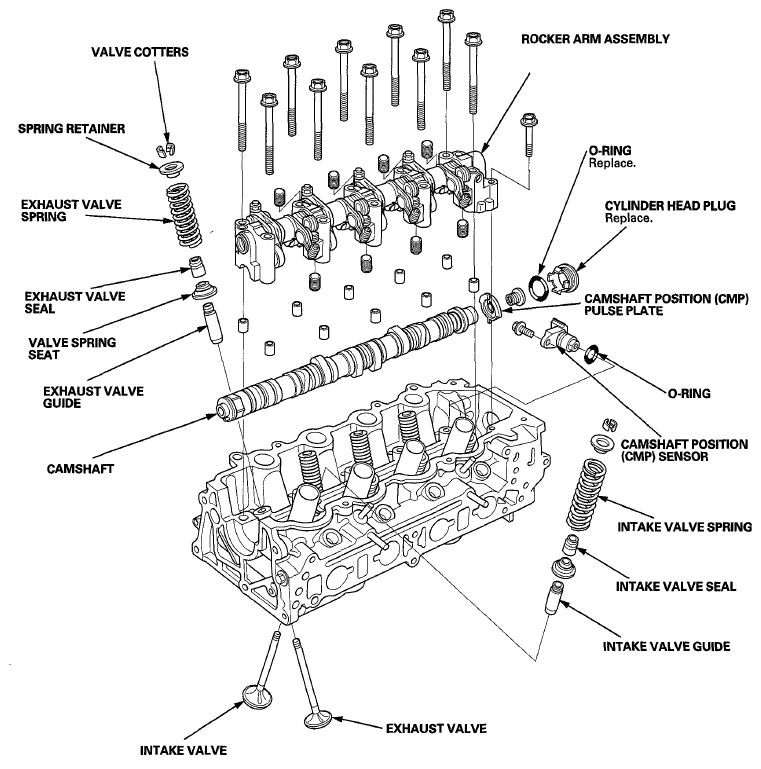

Fig 3: Identifying Cylinder Head Component Location (3 Of 3)
G06428848
