Intake Manifold

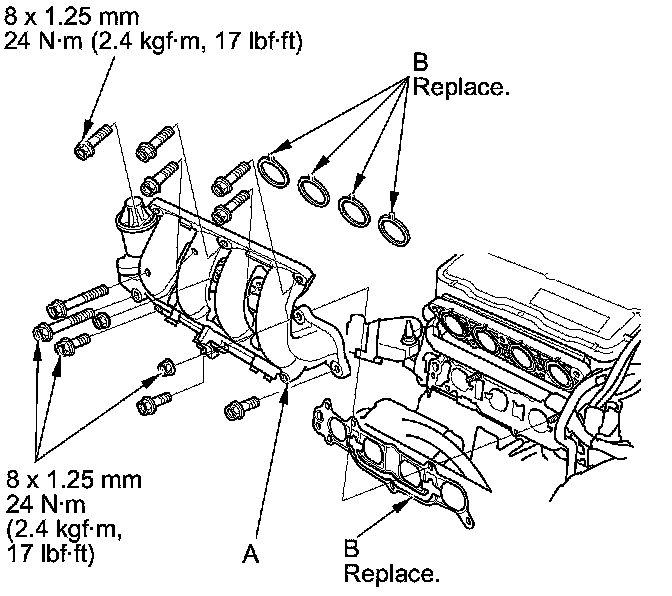

Intake manifold
(A)
Tighten the bolts and nuts in a crisscross pattern in three steps, beginning with the inner bolt.
