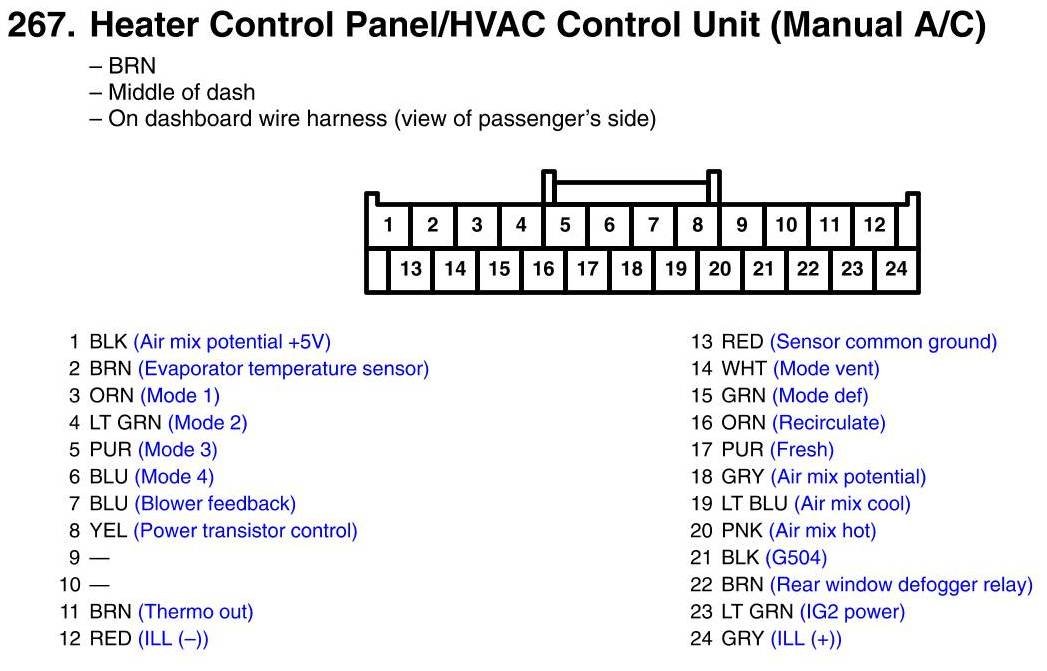

Heater Control Panel/HVAC Control Unit Connector View (Manual A/C)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Heater Control Panel/HVAC Control Unit Connector View (Manual A/C)
