Power Mirror Switch Test/Replacement

Power Mirror Switch Test/Replacement

1. Remove the instrument panel Instrument Panel Removal/Installation.

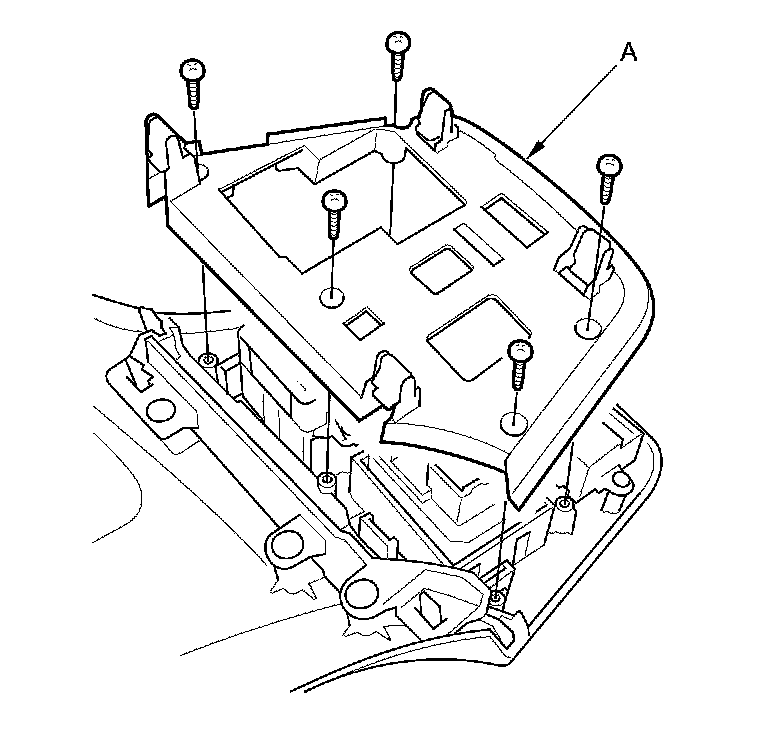

2. Remove the five screws and the cover (A).

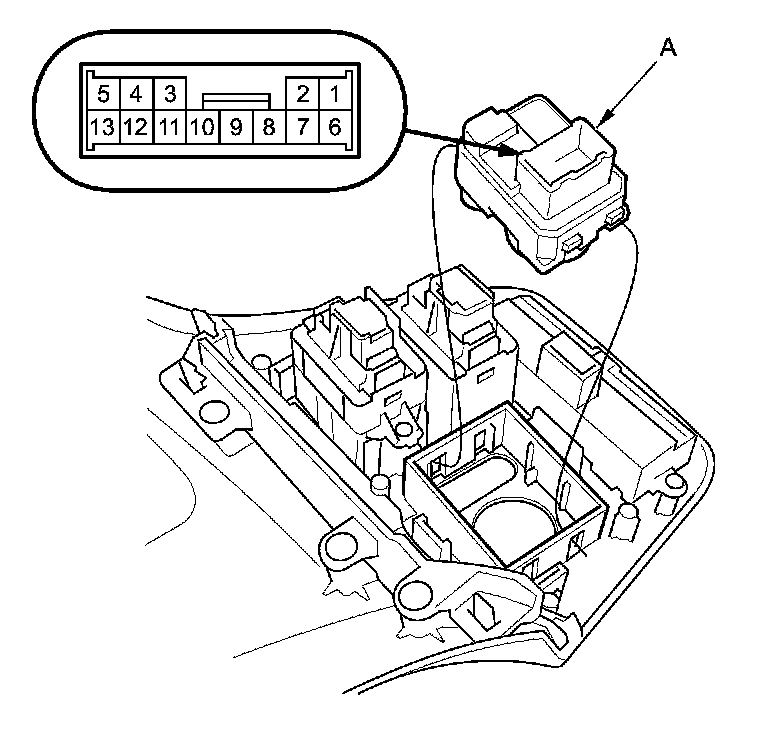

3. Remove the mirror switch (A) from the instrument panel.






4. Check for continuity between the terminals in each switch position according to the table.

Power Mirror Switch





5. If the continuity is not as specified, replace the switch.

6. Install the parts in the reverse order of removal.
