Alarm Module: Service and Repair

Immobilizer-Keyless Control Unit Replacement

1. Remove the steering column covers Steering Column Cover Removal/Installation.

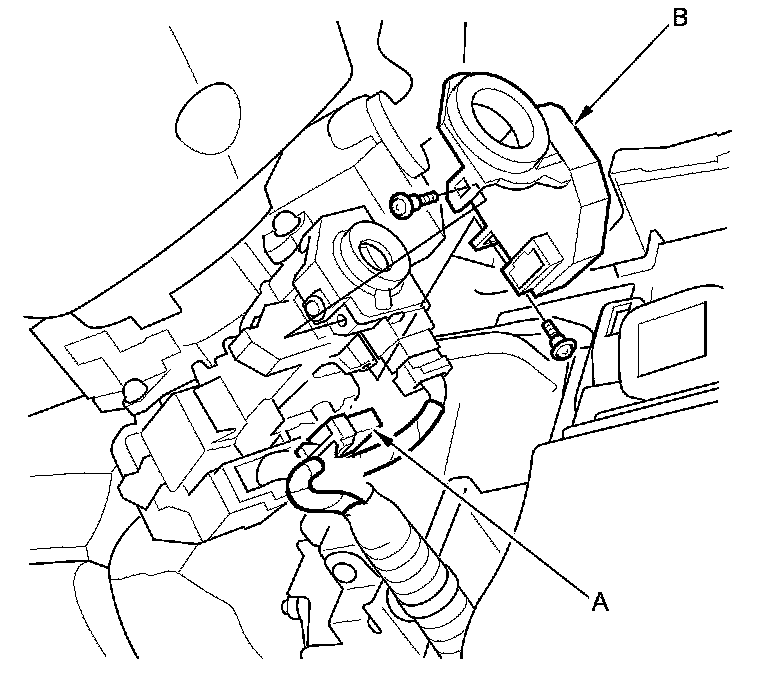

2. Disconnect the 7P connector (A) from the immobilizer-keyless control unit (B).





3. Remove the two screws and the immobilizer-keyless control unit.

4. Install the immobilizer-keyless control unit in the reverse order of removal.

5. After replacement, register the immobilizer-keyless control unit Programming Immobilizer-Keyless Control Unit, and make sure the immobilizer system works properly.
