Power Window Master Switch Replacement

Power Window Master Switch Replacement

1. Remove the driver's door panel Service and Repair.

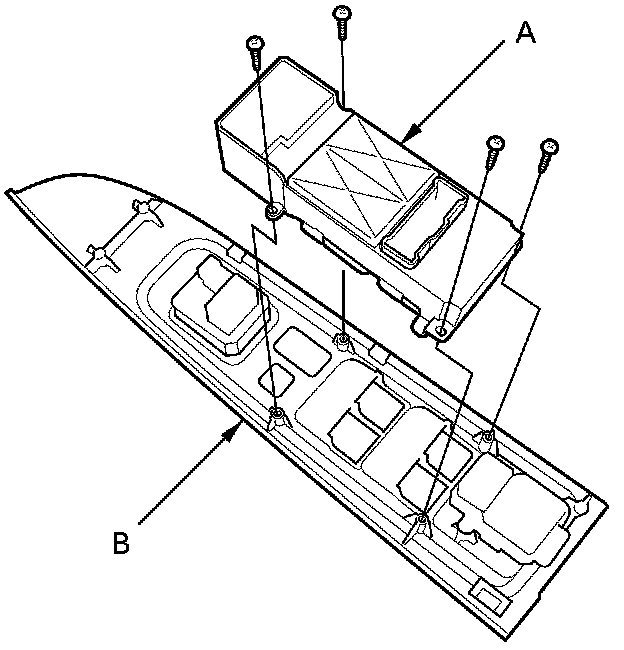

2. Remove the four mounting screws, then remove the master switch (A) from the switch panel (B).

3. Install the switch in the reverse order of removal.

4. Reset the power window control unit Testing and Inspection.
