HVAC Control Unit Removal/Installation (Without Climate Control)




HVAC Control Unit Removal/Installation

1. Remove the instrument panel Instrument Panel Removal/Installation.

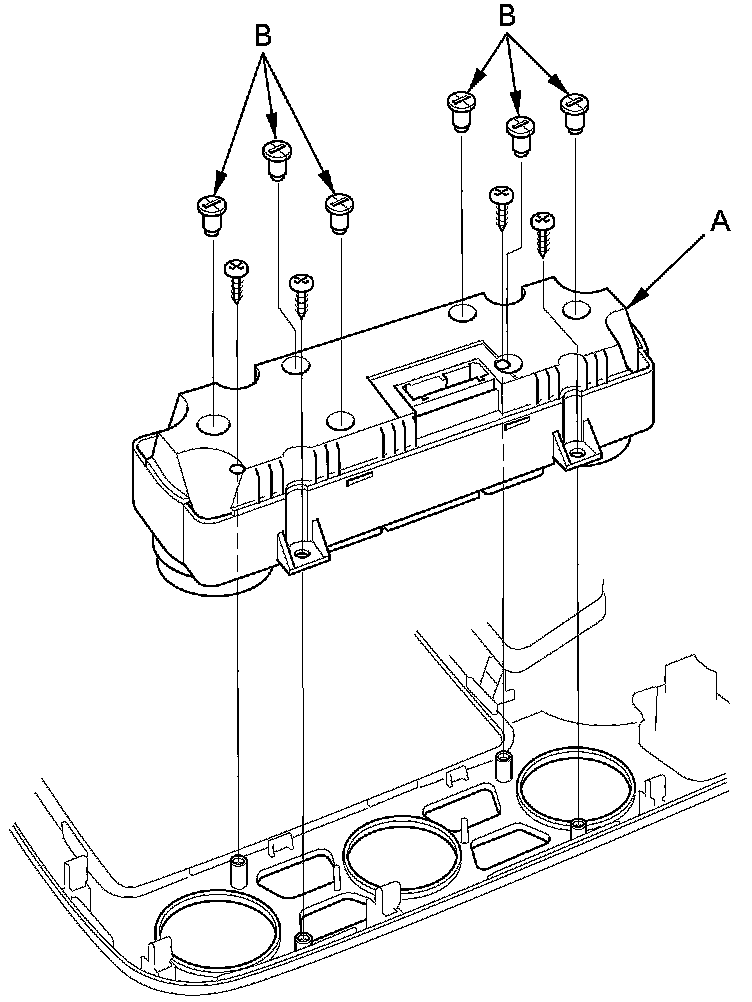

2. Remove the self-tapping screws, and the HVAC control unit (A). If necessary, replace the bulbs (B).





3. Install the control unit in the reverse order of removal. After installation, operate the HVAC control unit in various functions to confirm that it works properly.

4. Run the self-diagnosis function to confirm that there are no problems in the system.
