Exploded View

NOTE: The graphic shows the 4WD transmission; the 2WD is similar.

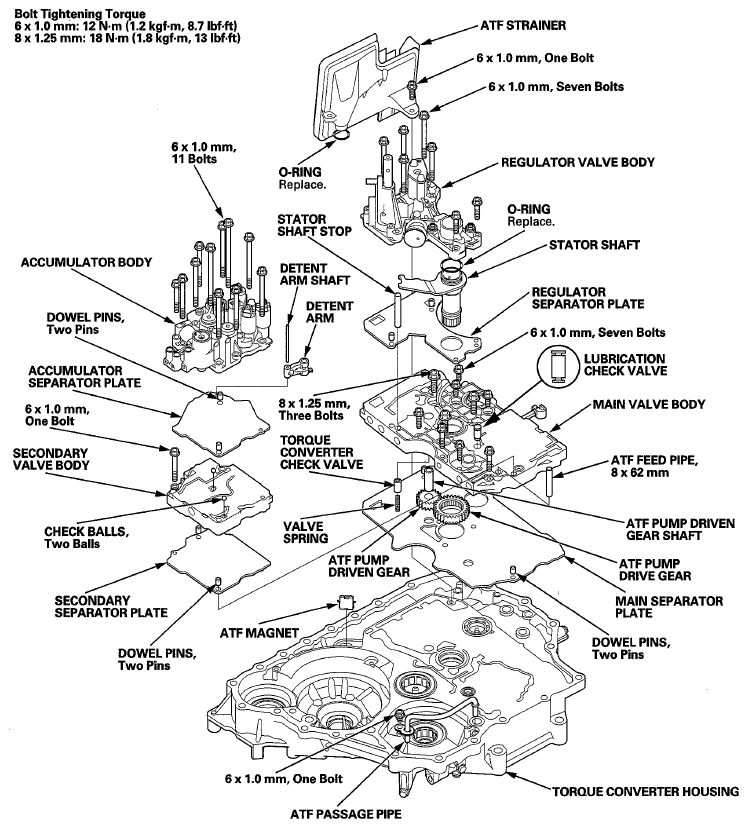

Fig 1: Identifying Automatic Transmission Replacement Components With Torque Specifications
G05962161Courtesy of AMERICAN HONDA MOTOR CO., INC.
