View 94 - A/C Pressure Sensor Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

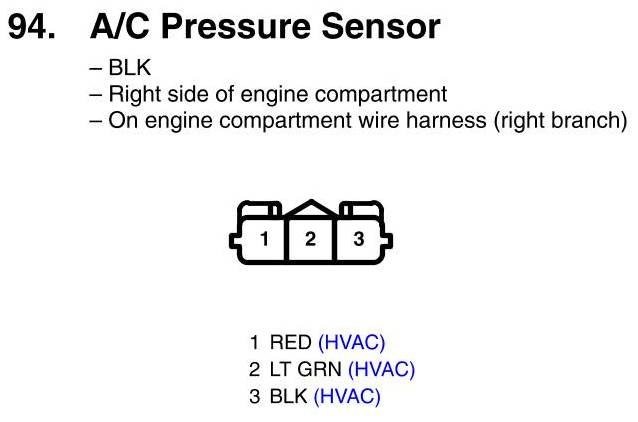

View 94 - A/C Pressure Sensor Connector View
