Climate Control Switch Removal/Installation (With Navigation)




Climate Control Switch Removal/Installation

With Navigation System

1. Remove the audio unit Audio Unit Removal/Installation (With Navigation).

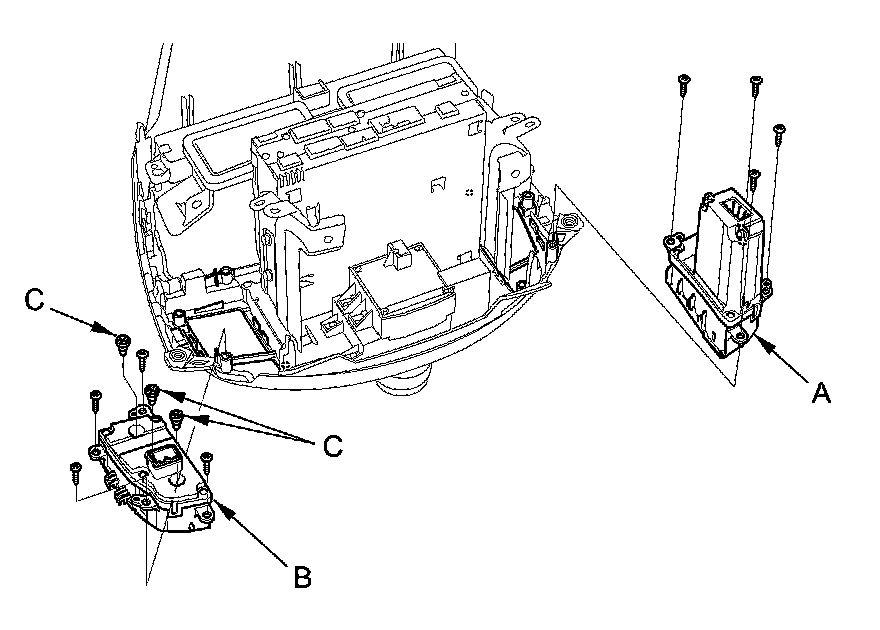

2. Remove the self-tapping screws and the driver's climate control switch (A) and passenger's climate control switch (B). If necessary, replace the bulbs (C).





3. Install the switches in the reverse order of removal.

4. Run the self-diagnostic function to confirm that there are no problems in the system How to Troubleshoot the Climate Control System.
