Intake Manifold

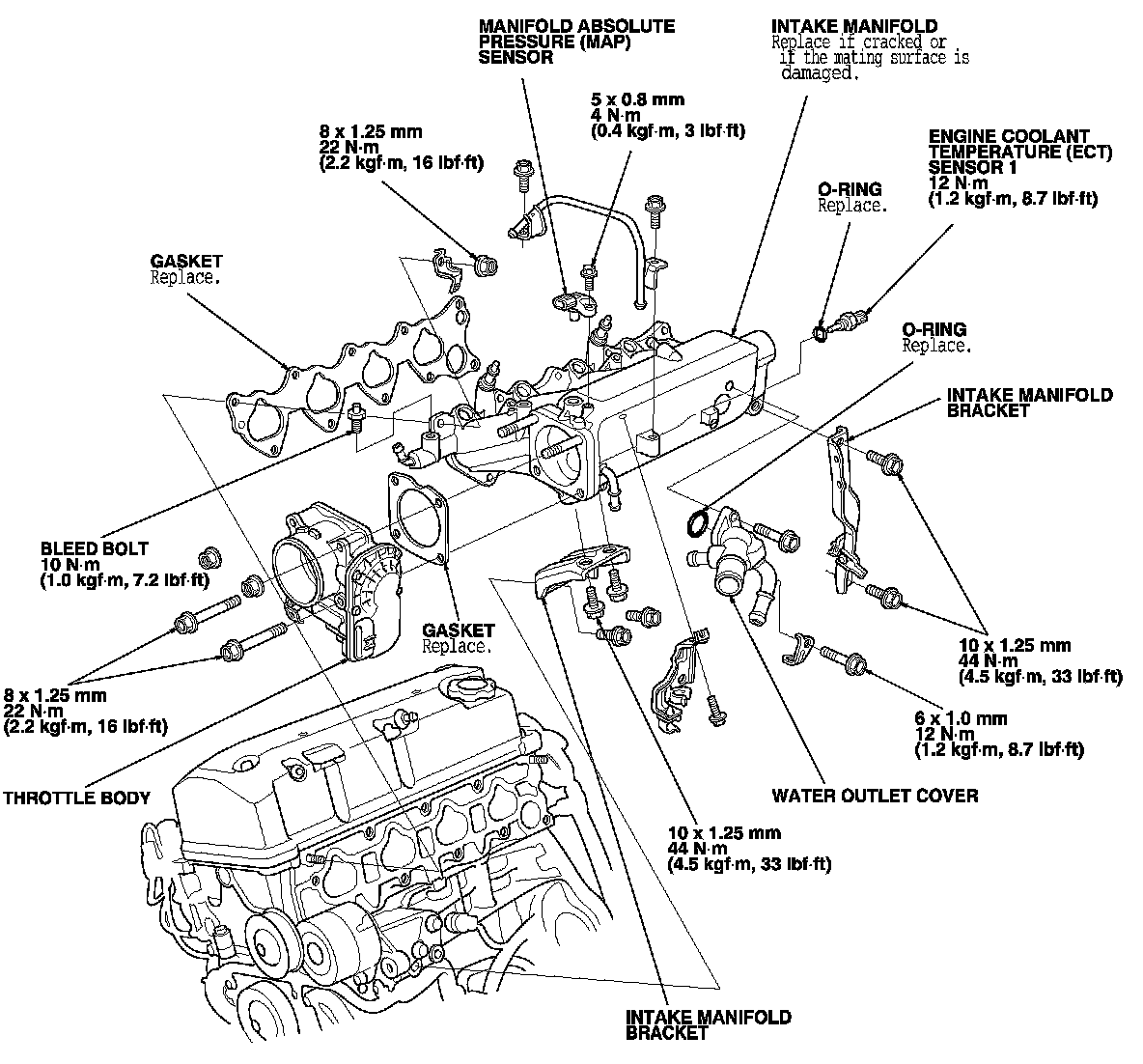

Intake Manifold and Throttle Body





Use new O-rings and gaskets when reassembling..
