Oil Pan, Engine




Oil Pan

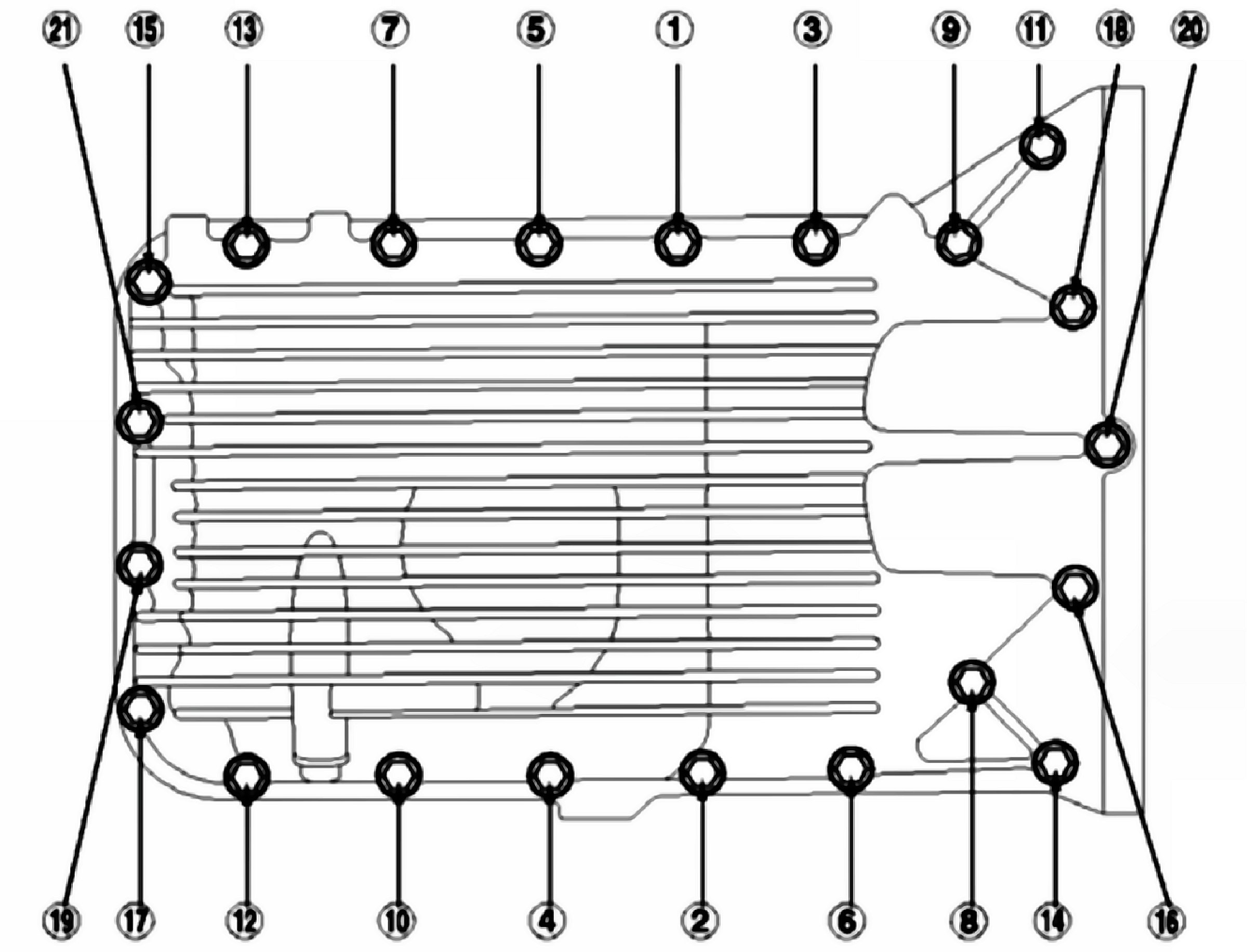

Tighten the bolts in two or three steps. In the final step, tighten all bolts, in sequence

Torque 12 Nm (1.2 kgf-m, 8.7 ft. lbs.).
