ECM Inputs and Outputs at Connector A (31P)

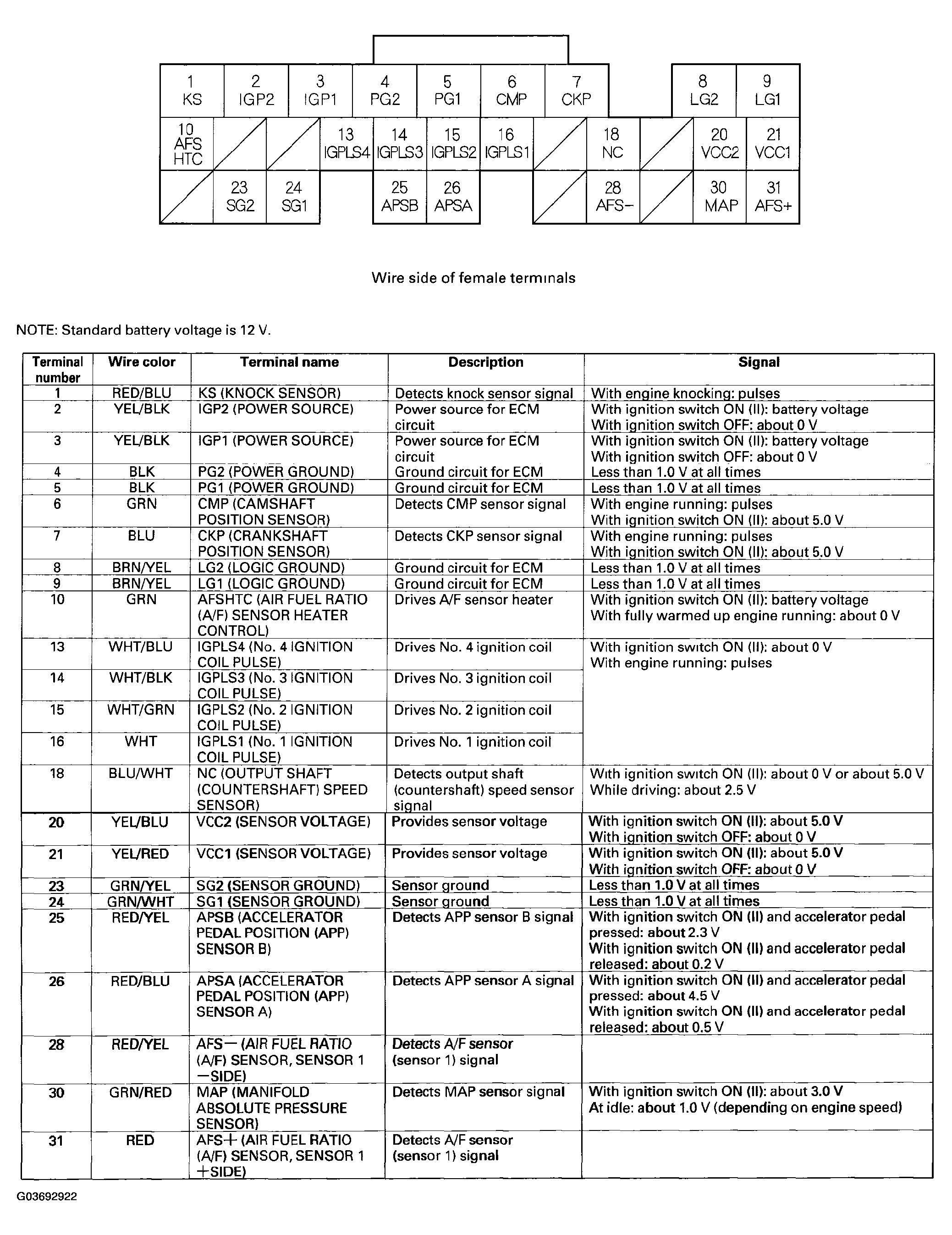

Fig 1: Identifying ECM Inputs And Outputs At Connector A (31P)
G03692922Courtesy of AMERICAN HONDA MOTOR CO., INC.
