PGM-FI Main Relay Connector End View

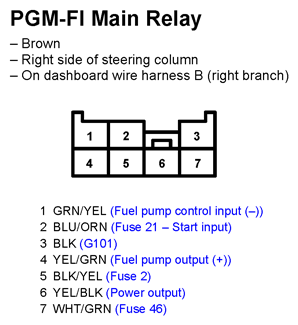

Fig 1: PGM-FI Main Relay Connector End View
G11250165Courtesy of AMERICAN HONDA MOTOR CO., INC.
