Power Window Master Switch Connector End View (View 251)
WHT
Driver's door
On driver's door wire harness

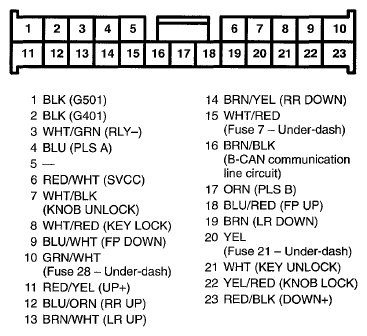

Fig 1: Power Window Master Switch Connector Terminal (View 251)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
