Fuel and Emissions System Diagram

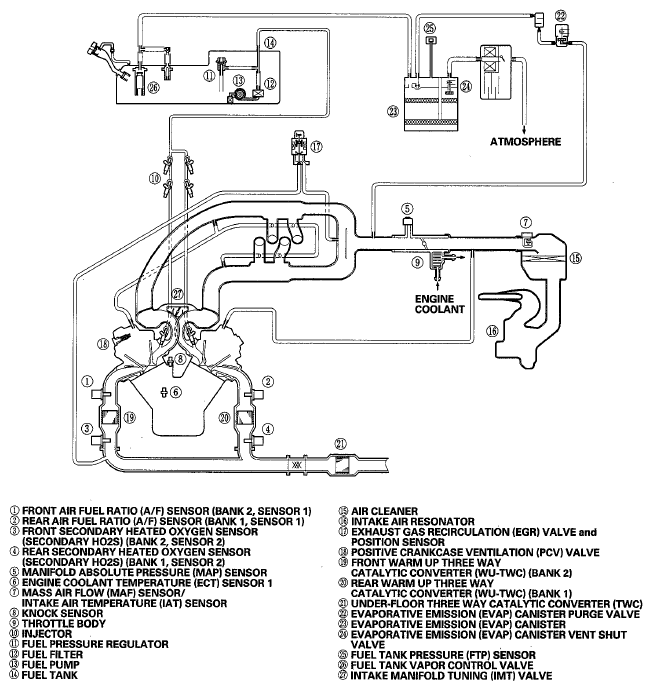

Fig 1: Identifying Fuel and Emissions System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
