DTC P0747: A/T Clutch Pressure Control Solenoid Valve A Stuck ON: Notes

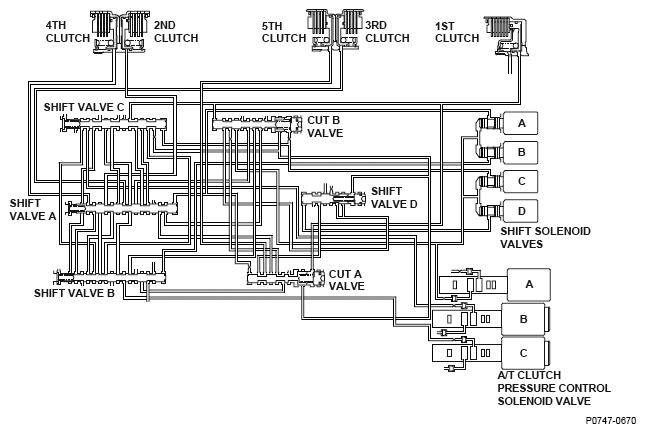

Fig 1: A/T Clutch Pressure Control Solenoid Valve Stuck On - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

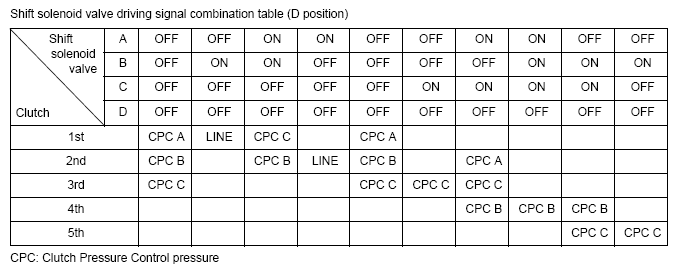

Fig 2: Shift Solenoid Valve Driving Signal Combination Table (D Position)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
