Tailgate Support Strut Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Have an assistant help you when removing and installing the hood support strut.
Use eye protection when prying the support strut clips.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Pry the support strut clips (A) with a flat-tip screwdriver from each end of the tailgate support strut (B), then release the support strut from the pivot bolts (C). If necessary, remove the pivot bolts from the tailgate or the body.
NOTE: Do not remove the clips from the support strut.

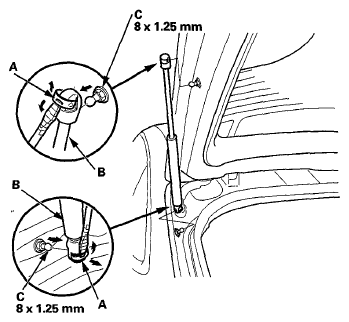

Fig 1: Prying Support Strut Clips From Each End Of Tailgate Support Strut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Set the support strut clips (A) on the original position, then reattach the tailgate support strut (B) on the pivot bolts (C) by pushing the support strut onto the pivot.

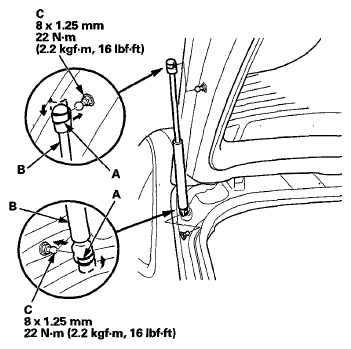

Fig 2: Setting Support Strut Clips On Original Position With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
