Power Mirror Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the door.
  1. Remove the door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the power mirror connector (A).
    Fig 1: Power Mirror Connector With Torque Specifications
    G06419557Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. While holding the power mirror, remove the nuts securing the mirror.
  4. While holding the power mirror (A), squeeze the retaining tabs (B) on the connector clips (C), then push out to remove the power mirror.

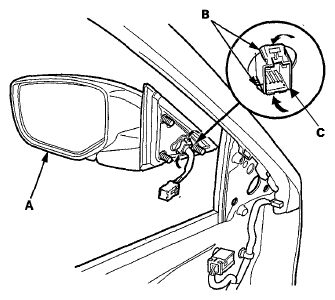

    Fig 2: Identifying Power Mirror And Connector Clips
    G06419558Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the mirror in the reverse order of removal, and note these items:
    • Make sure the connectors are plugged in properly.
    • Push the clips on the cover into place securely.
