Sliding Door Power Window Regulator Assembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

This assembly moves the sliding door window in the window run channels, actuates the sliding door window position switch, and pulls the lower roller stopper cable. It contains a power window motor, position plate, and sliding door window position switch.

Sliding Door Window Position Switch (A)-This switch signals the power window control unit that the window is open at 108 mm (4.3 in) or more.

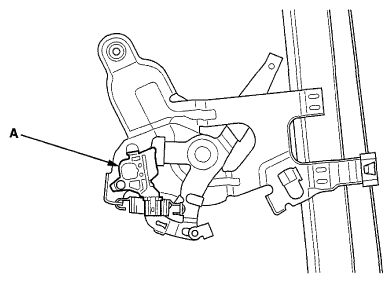

Fig 1: Identifying Sliding Door Window Position Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
