Wheel Speed Sensor Replacement: Front

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the grommet (A), then disconnect the wheel speed sensor connector (B).

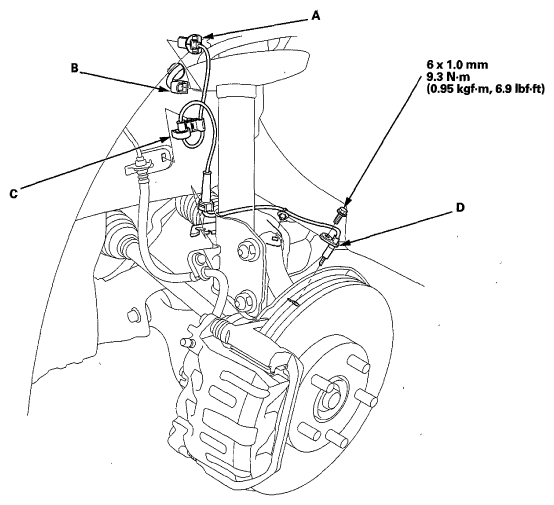

    Fig 1: Wheel Speed Sensor, Connector, Grommet, Clamp And Mounting Bolt Torque Specification (Front)
    G06969841Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the clamp (C), the clip, and the wire guide rubber.
  4. Remove the bolt and the wheel speed sensor (D).
  5. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
    • Make sure there is no debris in the sensor mounting hole.
