VSA Modulator-Control Unit Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to LOCK (0).
Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).

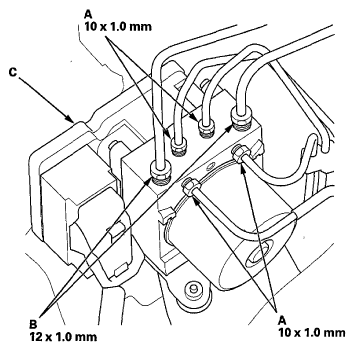

Disconnect the 10 mm brake lines (A) and the 12 mm brake lines (B) from the VSA modulator-control unit

Fig 1: Identifying VSA Modulator-Control Unit And Brake Lines
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the VSA modulator-control unit 32P connector (A) by pushing the lock (B) and pulling up the lever (C); the connector disconnects itself.

Fig 2: Pushing VSA Modulator-Control Unit 32P Connector Lock
Courtesy of AMERICAN HONDA MOTOR CO., INC.

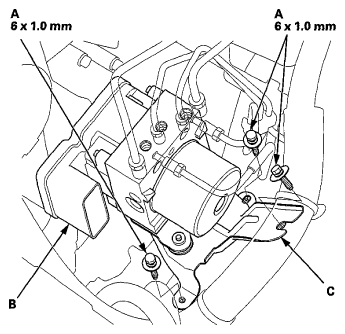

Remove the VSA modulator-control unit bracket mounting bolts (A), then remove the VSA modulator-control unit (B) with the bracket (C) from the body.

Fig 3: Identifying VSA Modulator-Control Unit, Brackets And Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

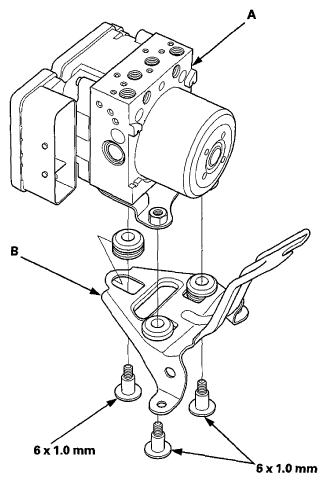

Remove the VSA modulator-control unit (A) from the bracket (B).

Fig 4: Identifying VSA Modulator-Control Unit With Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
