VSA Modulator-Control Unit Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

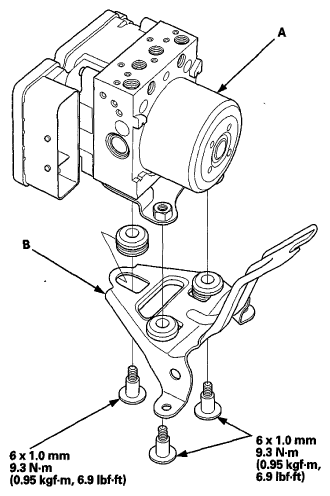

Install the VSA modulator-control unit (A) onto the bracket (B).

Fig 1: VSA Modulator-Control Unit, Brackets And Mounting Bolts Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

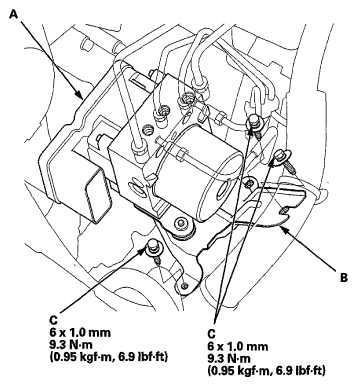

Install the VSA modulator-control unit (A) with the bracket (B) to the body, then install the VSA modulator-control unit bracket mounting bolts (C).

Fig 2: VSA Modulator-Control Unit, Brackets And Mounting Bolts Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the connecting surface of the VSA modulator-control unit 32P connector (A) to the VSA modulator-control unit.

Fig 3: Pulling Down Lever Of VSA Modulator-Control Unit 32P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull down the lever (B) of the VSA modulator-control unit 32P connector, then confirm the connector is fully seated.

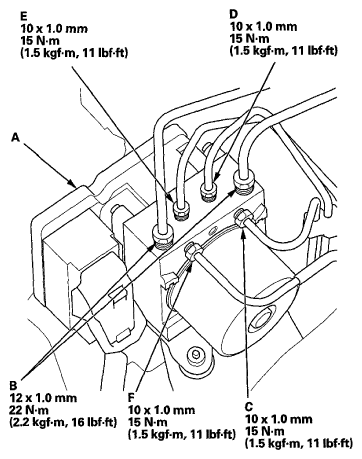

Connect the 10 mm brake lines and the 12 mm brake lines to the VSA modulator-control unit (A).
NOTE: The brake lines are connected to the master cylinder (B), the left-rear (C), the right-front (D), the left-front (E), and the right-rear (F) brake systems.

Fig 4: VSA Modulator-Control Unit And Brake Lines With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
Bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the VSA modulator-control unit update (see VSA MODULATOR-CONTROL UNIT UPDATE ).
Do the VSA sensor neutral position memorization procedure (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
