TCS (Traction Control System) Features

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

When a drive wheel loses traction on a slippery road surface and starts to spin, the VSA modulator-control unit applies brake pressure to the spinning wheel and sends an engine torque control request to the PCM to slow the spinning wheel and keep traction.

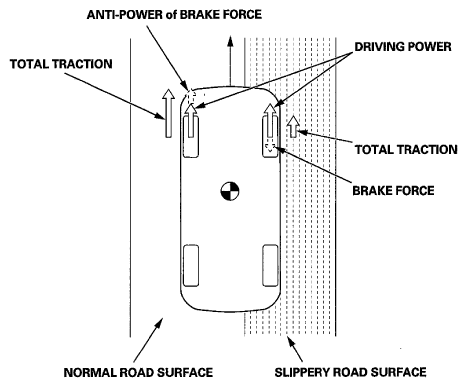

Fig 1: TCS (Traction Control System) Features
G06969775Courtesy of AMERICAN HONDA MOTOR CO., INC.
