System Outline
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

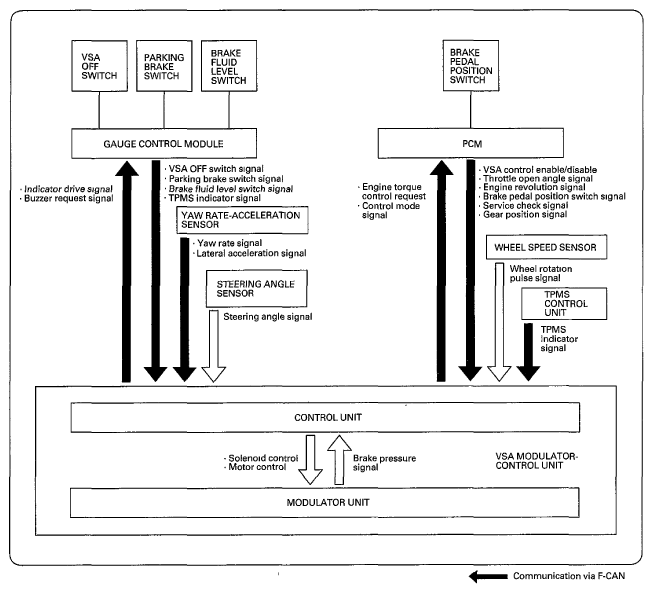

This system is composed of the VSA modulator-control unit, the wheel speed sensors, the steering angle sensor, the yaw rate-acceleration sensor, and the system indicators in the gauge control module. The VSA modulator-control unit controls the Anti-Lock Brake System (ABS), the Electronic Brake Distribution (EBD), the Traction Control System (TCS), the Vehicle Stability Assist (VSA), and brake assist with the brake pressure of each wheel and reduces engine torque.
