Steering Angle Sensor Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE: Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.
  1. Turn the ignition switch to LOCK (0).
  2. With the front wheels in the straight-ahead position and the steering wheel centered, then remove the steering wheel (see STEERING WHEEL REMOVAL AND INSTALLATION ).
  3. Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
  4. Disconnect the combination light switch 12P connector (A) and the steering angle sensor 5P connector (B) from the combination switch assembly/cable reel (C).

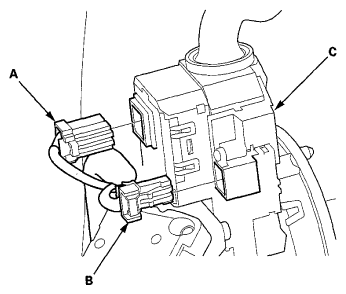

    Fig 1: Identifying Combination Light Switch Connector, Steering Angle Sensor Connector And Combination Switch Assembly/Cable Reel
    G06969820Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect cable reel connector A (20P), cable reel connector B (4P), and the wiper/washer switch 8P connector (C) from the combination switch assembly/cable reel (D).

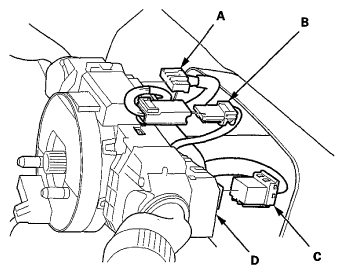

    Fig 2: Identifying Cable Reel Connectors, Wiper/Washer Switch Connector And Combination Switch Assembly/Cable Reel
    G06969821Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the wire harness clips (A) from the combination switch assembly/cable reel (B).

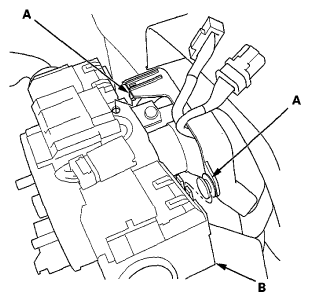

    Fig 3: Identifying Wire Harness Clips And Combination Switch Assembly/Cable Reel
    G06969822Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the combination switch assembly/cable reel mounting screws (A), then remove the combination switch assembly/cable reel (B) from the steering column.

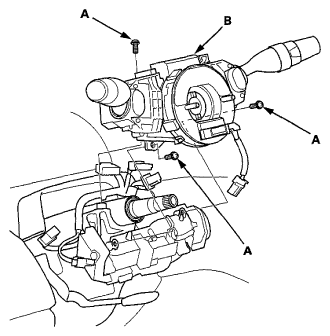

    Fig 4: Identifying Combination Switch Assembly/Cable Reel Mounting Screws And Combination Switch Assembly/Cable Reel
    G06969823Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the cable reel (see CABLE REEL REPLACEMENT ).
  9. Remove the combination light switch (A) and the wiper/washer switch (B) from the combination switch body assembly (C).
    NOTE: When installing the cable reel, set the turn signal canceling sleeve position so that the arrow points (D) straight up.

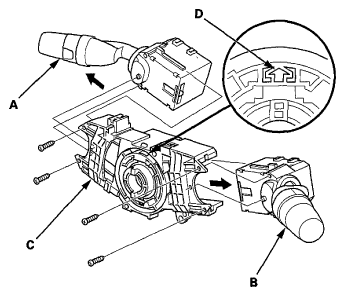

    Fig 5: Removing Combination Light Switch And Wiper/Washer Switch From Combination Switch Body Assembly
    G06969824Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install the combination switch body assembly in the reverse order of removal, and note these items:
    NOTE:
    • Do not remove the steering angle sensor from the combination switch body assembly.
    • Tighten the combination switch assembly/cable reel mounting screws in the proper sequence (see step 1 on INSTALLATION ).
