Rearview Camera: Navigation

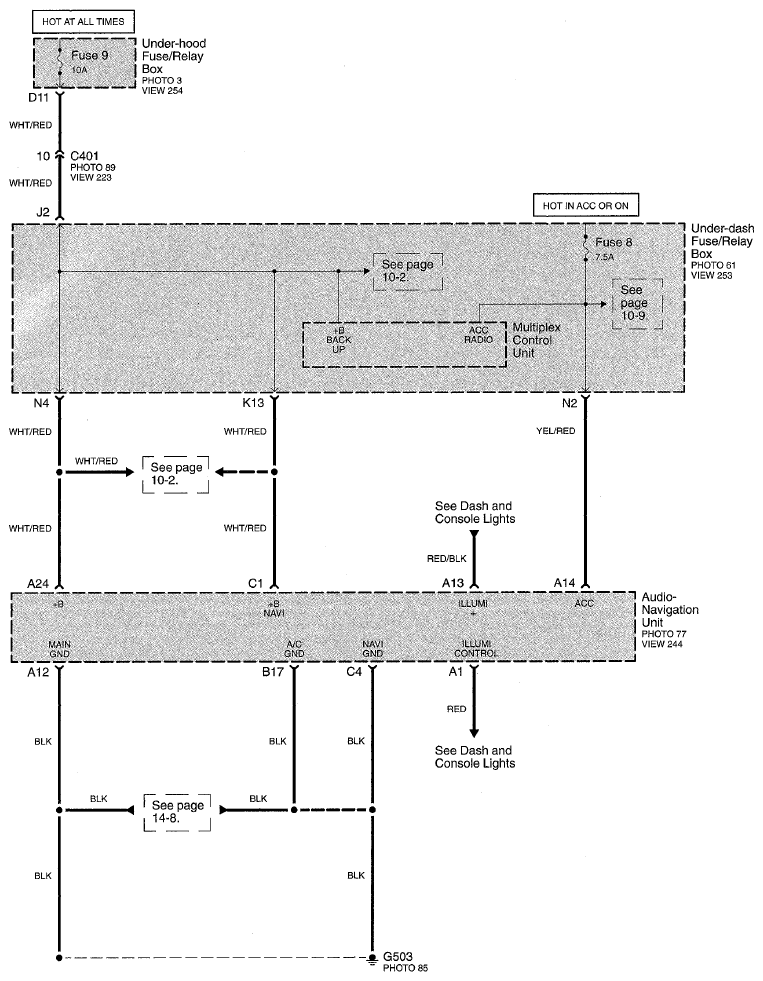

Fig 1: Rearview Camera (Navigation) Circuit Diagram (Page 161)
G07758433

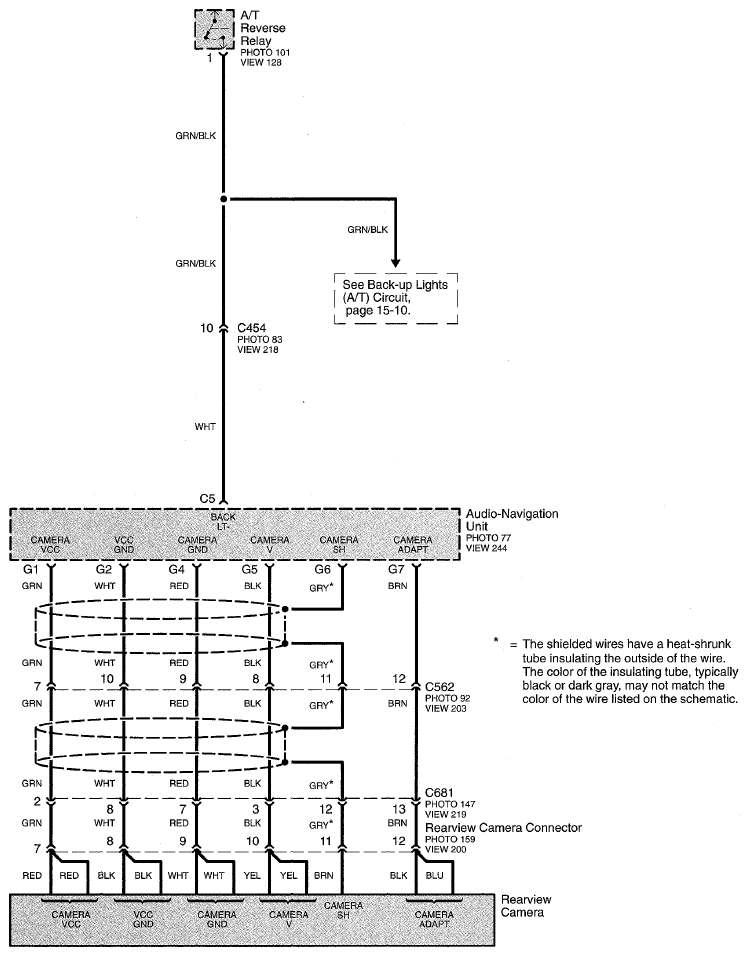

Fig 2: Rearview Camera (Navigation) Circuit Diagram (Page 161-1)
G07758434
