Under-dash Fuse/Relay Box - Fuse 14

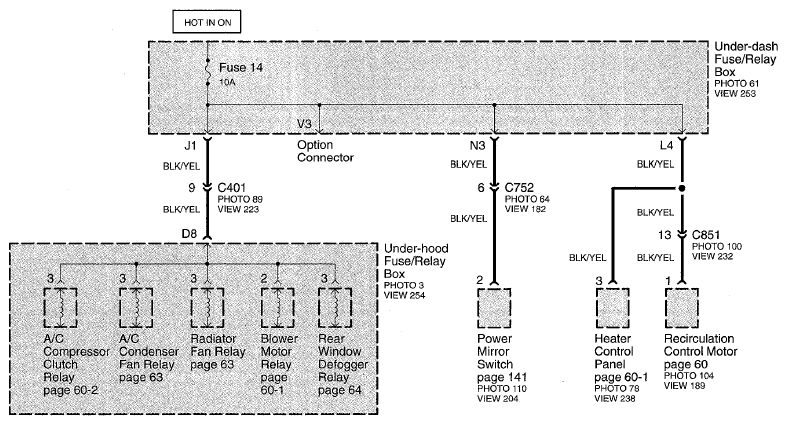

Fig 1: Under-Dash Fuse/Relay Box Circuit Diagram - Fuse 14 (Page 10-9)
