Element SC, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Multiplex Control System
>>
Power, Grounds and Diagnostics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power, Grounds and Diagnostics

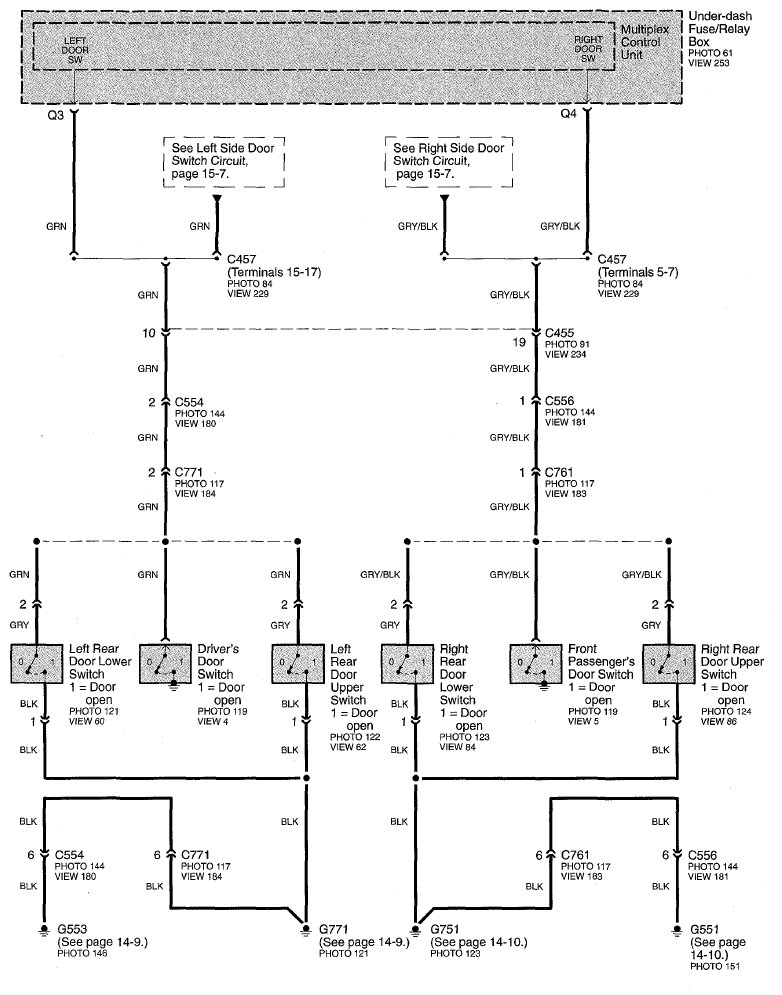

Fig 1: Power, Grounds And Diagnostics Circuit Diagram (Page 50)

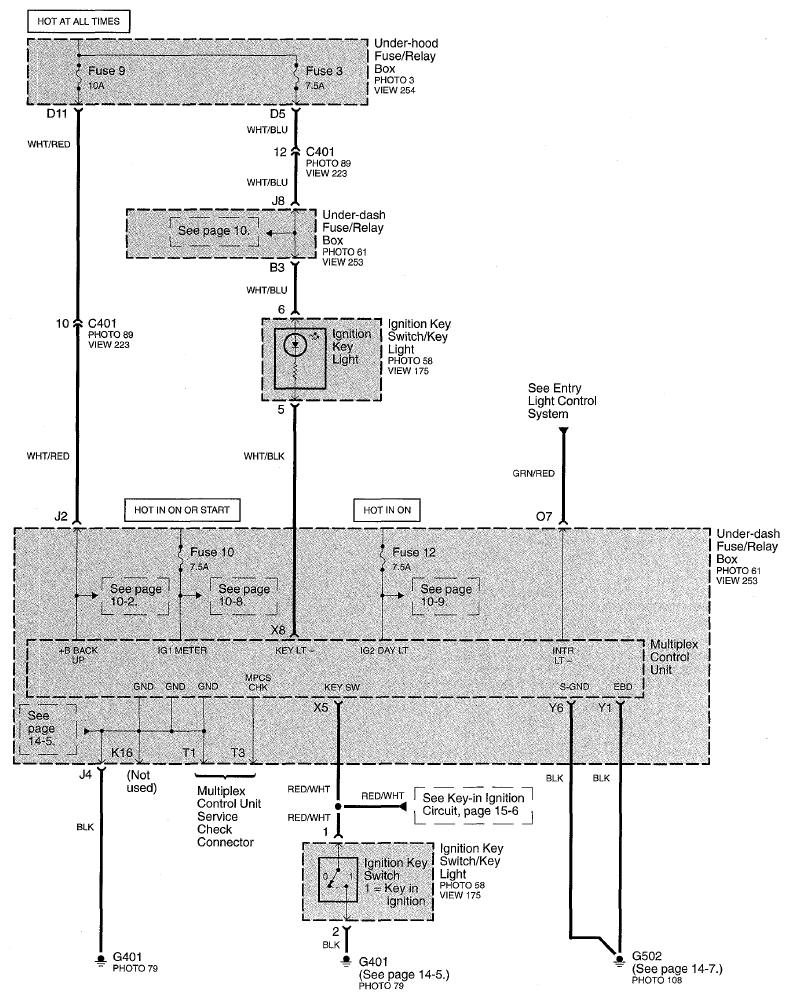

Fig 2: Power, Grounds And Diagnostics Circuit Diagram (Page 50-1)

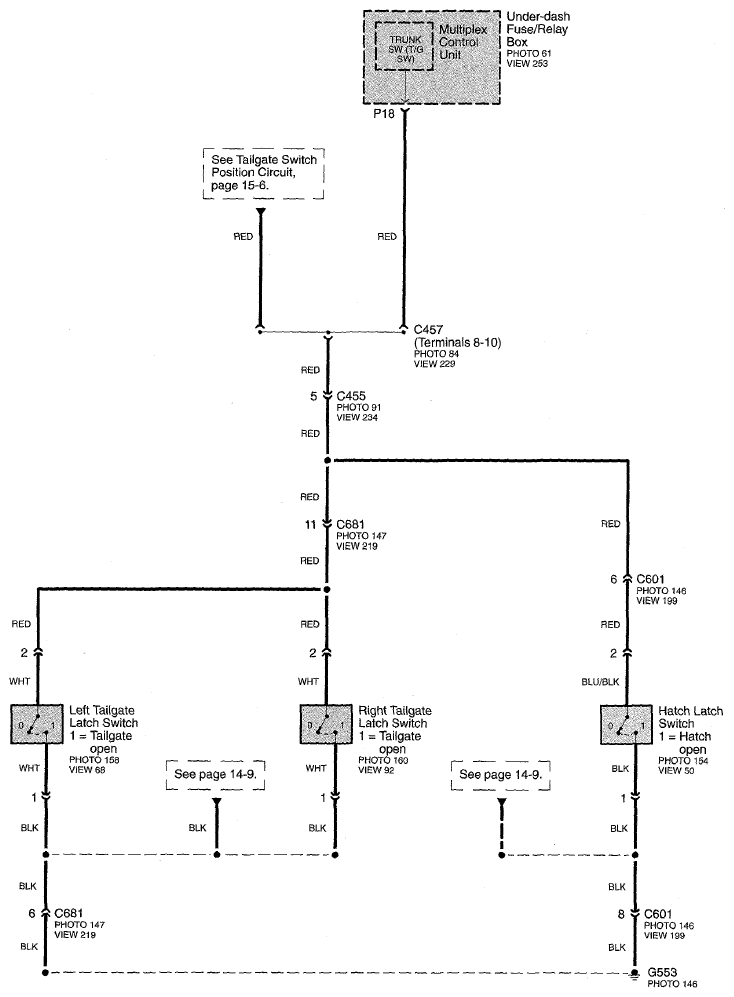

Fig 3: Power, Grounds And Diagnostics Circuit Diagram (Page 50-2)
