Honda
>>
2009
>>
Element SC, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Audio System
>>
EX, SC: except Navigation
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
EX, SC: except Navigation

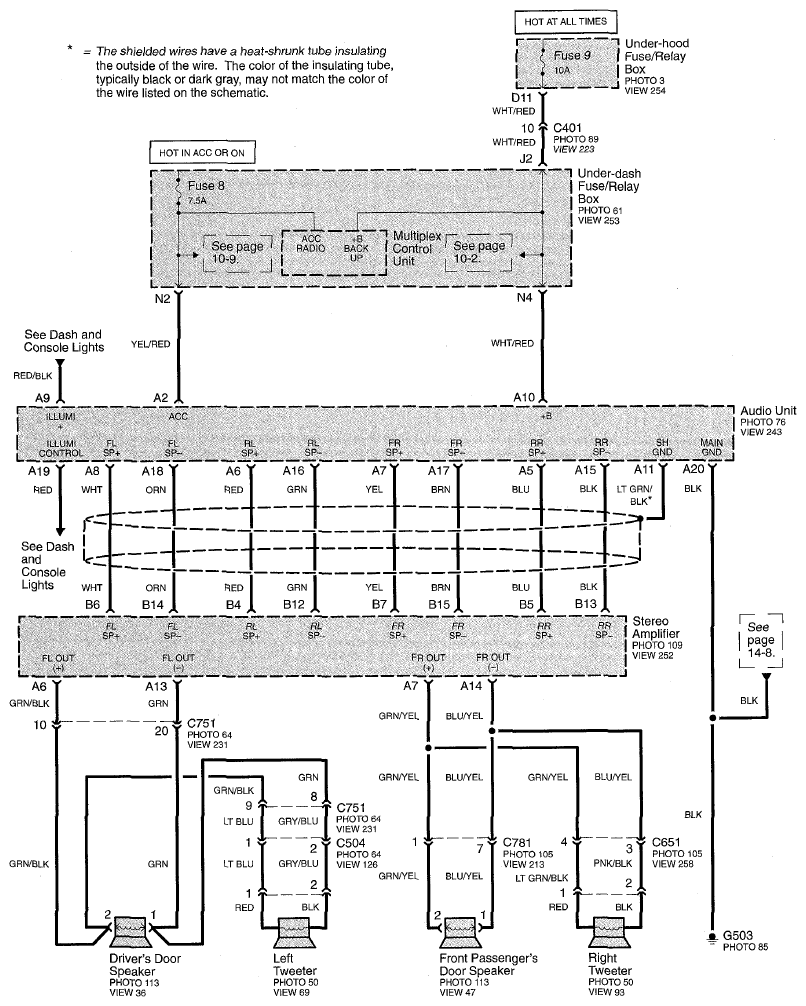

Fig 1: Audio System (Except Navigation) Circuit Diagram (Page 150-1)

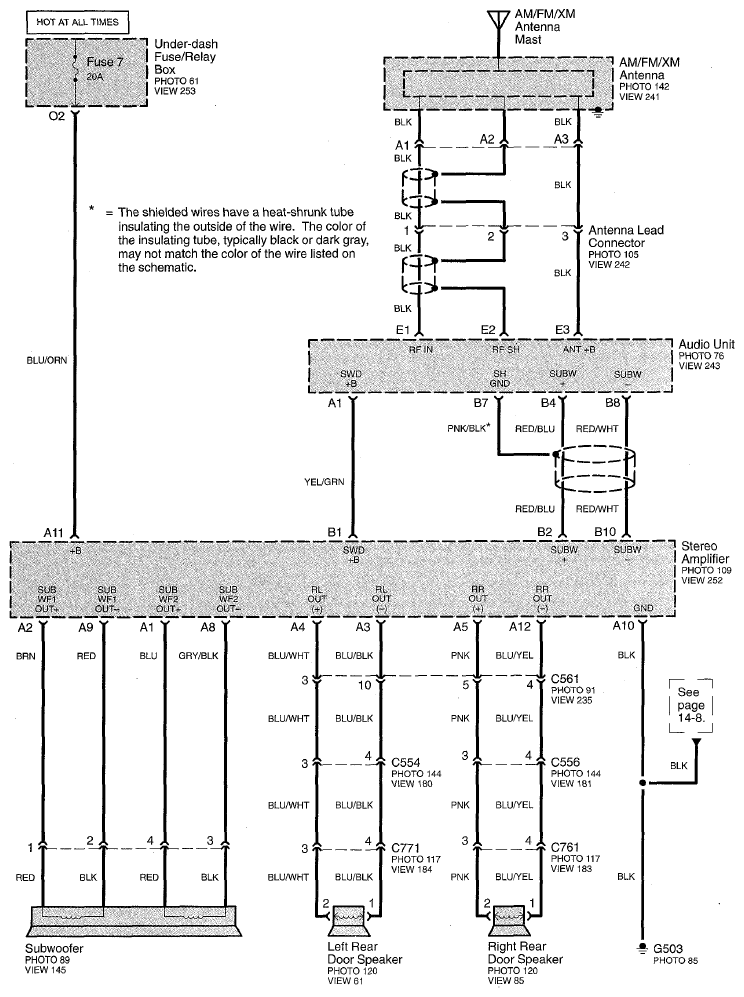

Fig 2: Audio System (Except Navigation) Circuit Diagram (Page 150-2)

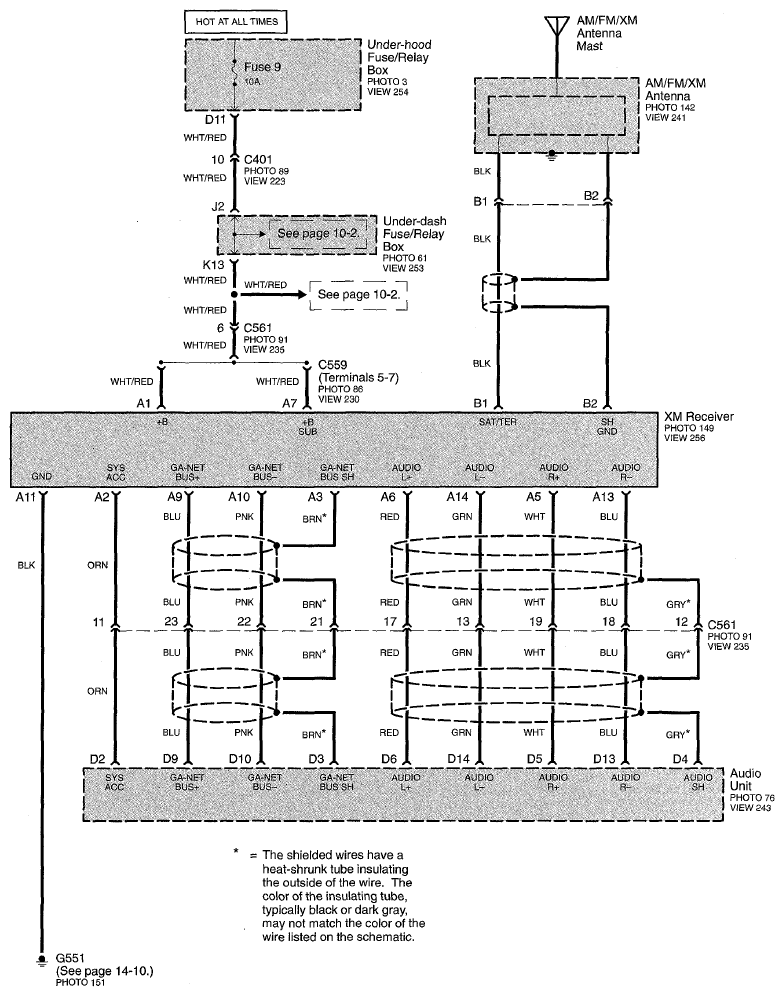

Fig 3: Audio System (Except Navigation) Circuit Diagram (Page 150-3)

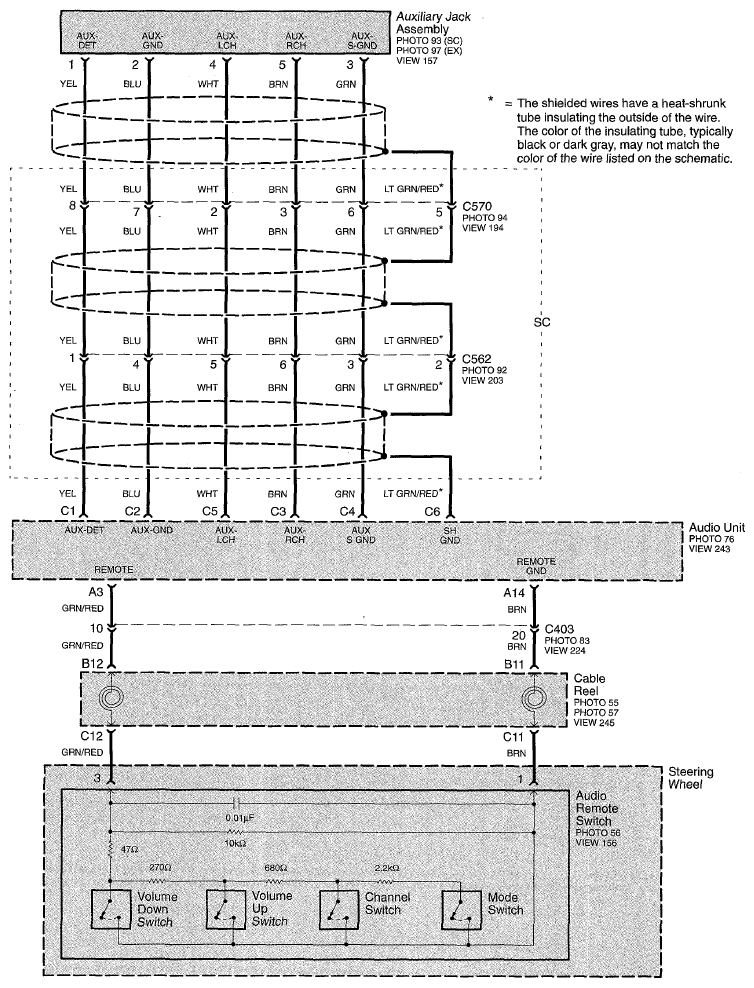

Fig 4: Audio System (Except Navigation) Circuit Diagram (Page 150-4)
