Differential Assembly

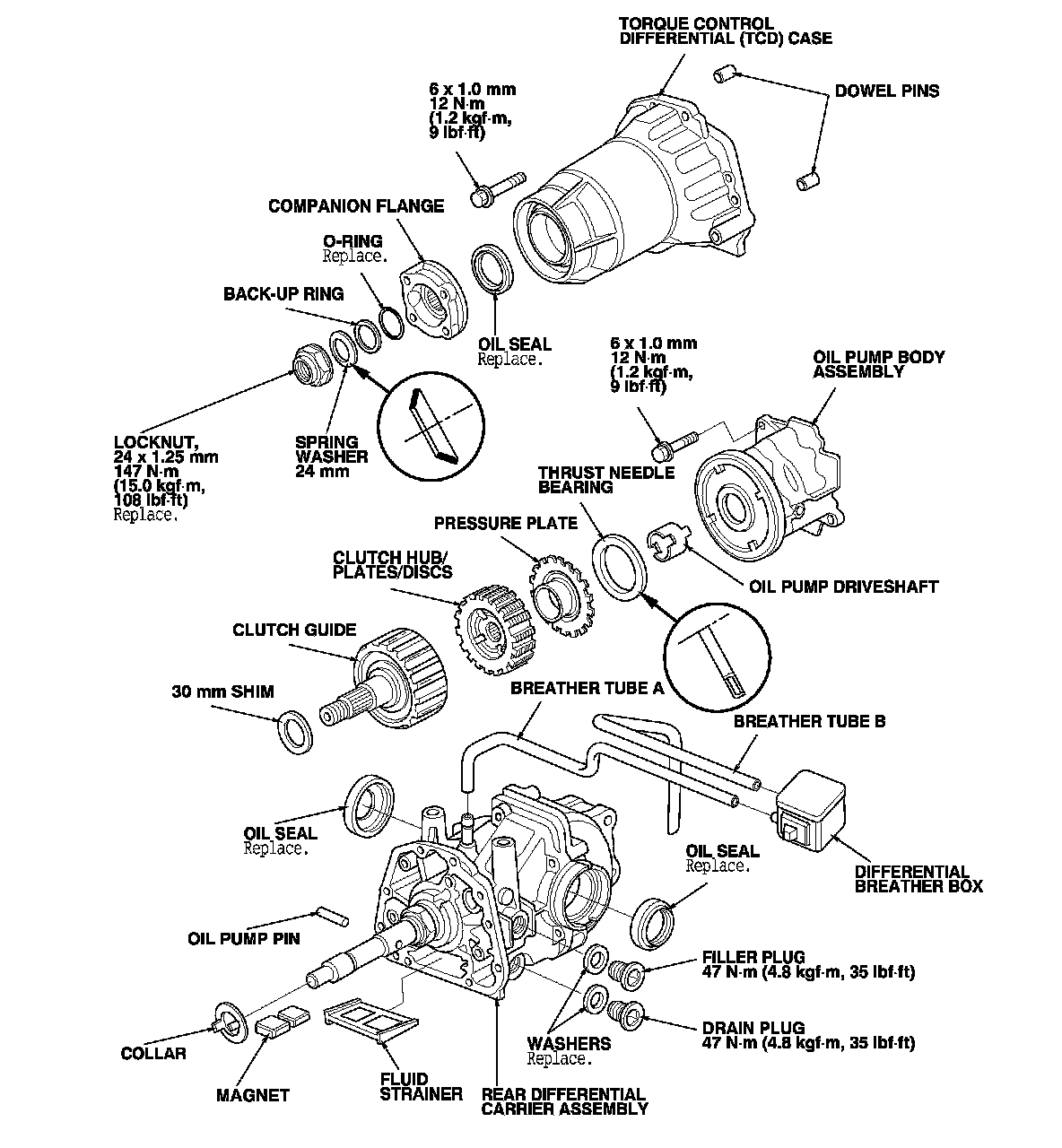

Rear Differential






For information regarding Differential Overhaul Specifications, please refer to Service and Repair, Overhaul. Overhaul
