Tightening Torques and Sequences
Cylinder HeadTighten the cylinder head bolts in sequence to 39 N-m (4.0 kgf-m, 29 lbf-ft).
After torquing, tighten all cylinder head bolts in two steps 90 ° per step
If you are using a new cylinder head bolt, tighten the bolt an extra 90 °.
Head Bolt Reuse/Replace
If either diameter is less than 10.6 mm (0.42 in.), replace the cylinder head bolt.
Intake Manifold
Torque the bolts/nuts in a crisscross pattern in three steps, beginning with the inner bolt.
Camshaft Bearing Cap
Tighten the bolts in the specified sequence.
NOTE: If the engine does not have bolt 21, skip it and continue the tighten sequence.
Main Bearing Cap
Tighten the bearing cap bolts in sequence, to 29 N-m (3.0 kgf-m, 22 lbf-ft).
Tighten the bearing cap bolts an additional 56 °.
Tighten the 8 mm bolts in sequence to N-m (2.2 kgf-m, 16 lbf-ft).
Rod Bearing Cap
Tighten the connecting rod bolts to 20 N-m (2.0 kgf-m, 14 lbf-ft).
Tighten the connecting rod bolts an additional 90 °.
Crankshaft Pulley
Tighten the bolt to 50 N-m (5.0 kgf-m, 37 lbf-ft).
If the pulley bolt or crankshaft are new, tighten the bolt to 177 N-m (18.0 kgf-m, 130 lbf-ft), then remove the bolt and tighten it to 49 N-m (5.0 kgf-m, 36 lbf-ft).
Then tighten the bolt an additional 90 °
Flywheel
Torque the flywheel mounting bolts (B) in a crisscross pattern in several steps.
Drive Plate
Tighten the eight bolts in a crisscross pattern in two or more steps.
Oil Pump

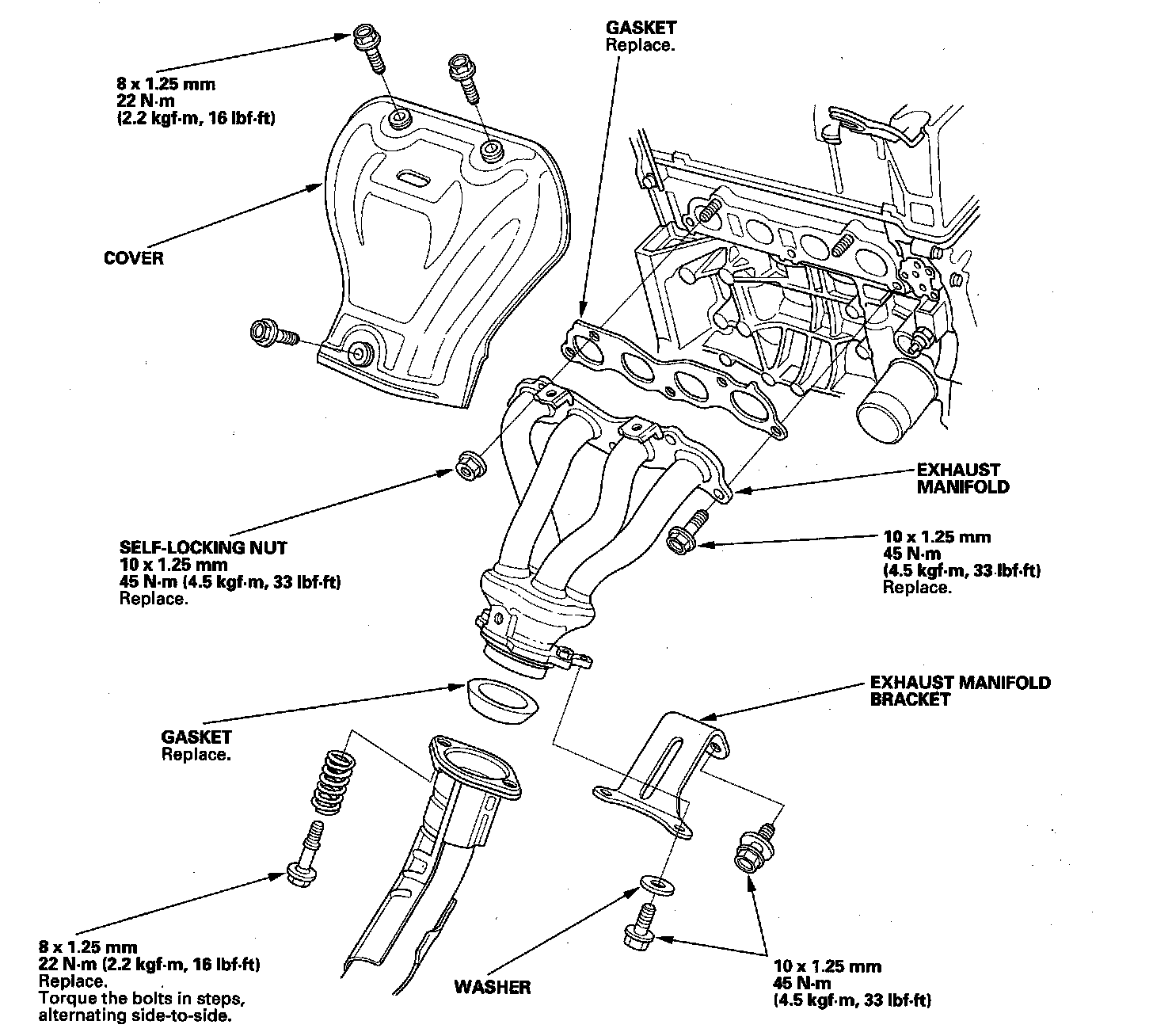

Exhaust Manifold
Torque the bolts/nuts in a crisscross pattern in two or three steps, beginning with the inner bolt.
Water Pump
