Heating and Air Conditioning: Locations

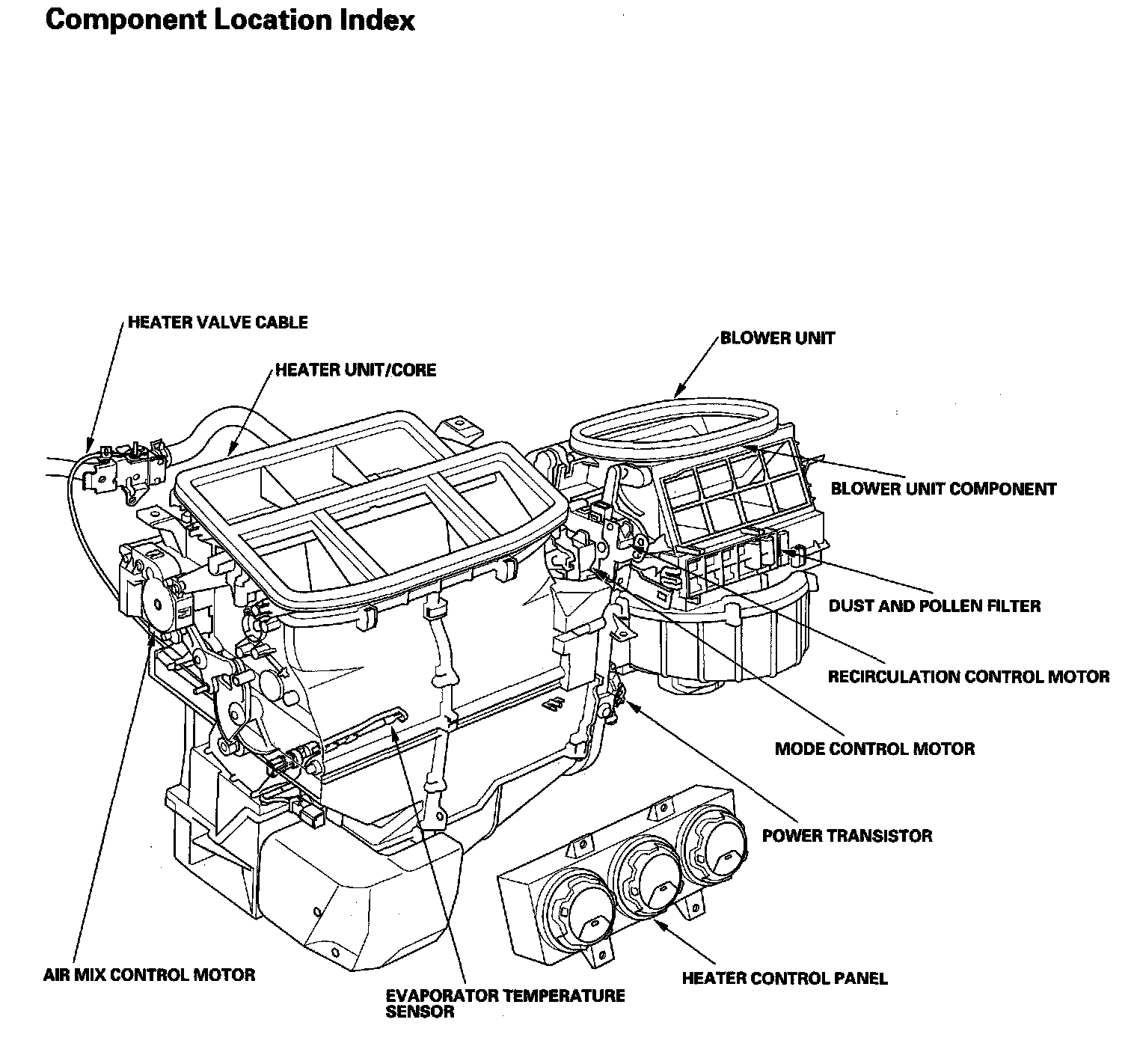

Heating and A/C Component Location Index

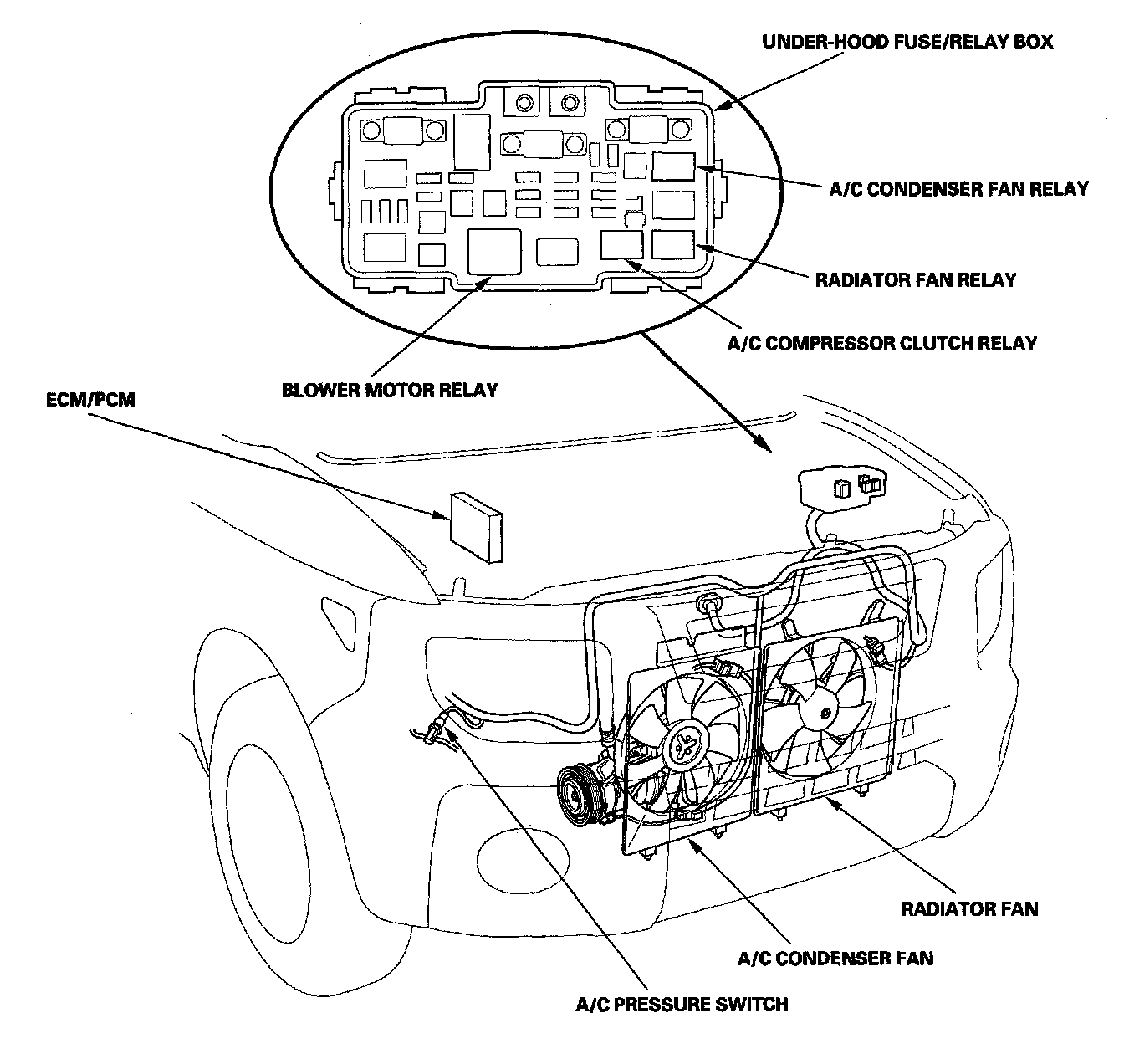

Heating/Air Conditioning Component Location Index:

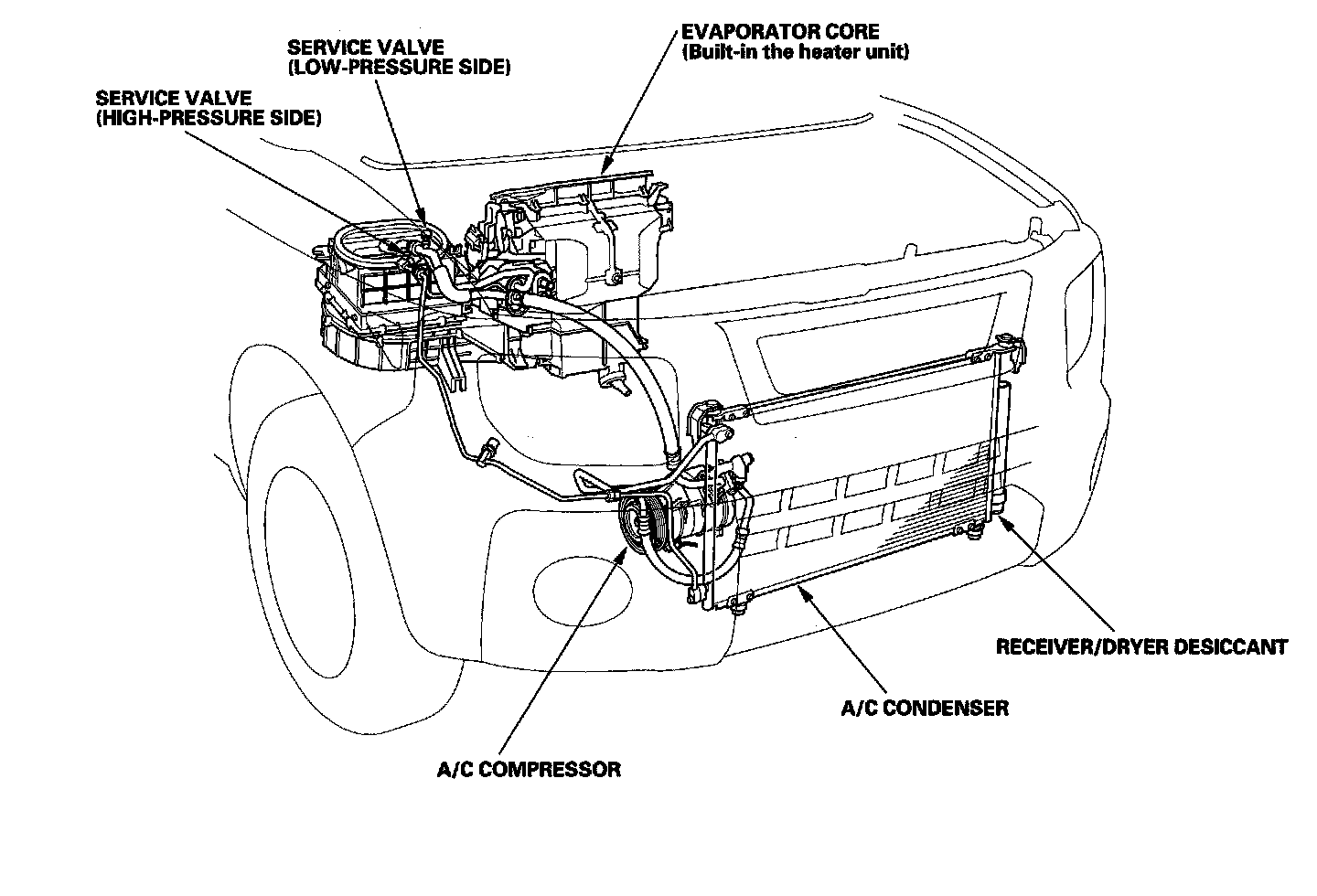

Heating/Air Conditioning Component Location Index:





Heating/Air Conditioning Component Location Index:
